Quick Details
-
Scan Speed:
-
30fps/s
-
Brand Name:
-
Henex or OEM
-
Place of Origin:
-
China
-
Operate System:
-
Android/Windows/iOS
-
Image Sensor:
-
640 Pixels(H)x 480 Pixels(V) CMOS
-
Light source:
-
White LED
-
Scan Mode:
-
Handheld HD Scan
-
Frame Rate:
-
30fps/s
-
Scan Angle:
-
Rotation 360
-
Interface:
-
USB-HID
-
Function:
-
Barcode Reading
-
Keywords:
-
Barcode Scanner Engine
-
Depth of Field:
-
EAN-13 50mm~180mm (13mil)
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Optical Resolution:
-
640 Pixels(H)x 480 Pixels(V) CMOS
-
Scan Speed:
-
30fps/s
-
Brand Name:
-
Henex or OEM
-
Place of Origin:
-
China
-
Operate System:
-
Android/Windows/iOS
-
Image Sensor:
-
640 Pixels(H)x 480 Pixels(V) CMOS
-
Light source:
-
White LED
-
Scan Mode:
-
Handheld HD Scan
-
Frame Rate:
-
30fps/s
-
Scan Angle:
-
Rotation 360
-
Interface:
-
USB-HID
-
Function:
-
Barcode Reading
-
Keywords:
-
Barcode Scanner Engine
-
Depth of Field:
-
EAN-13 50mm~180mm (13mil)

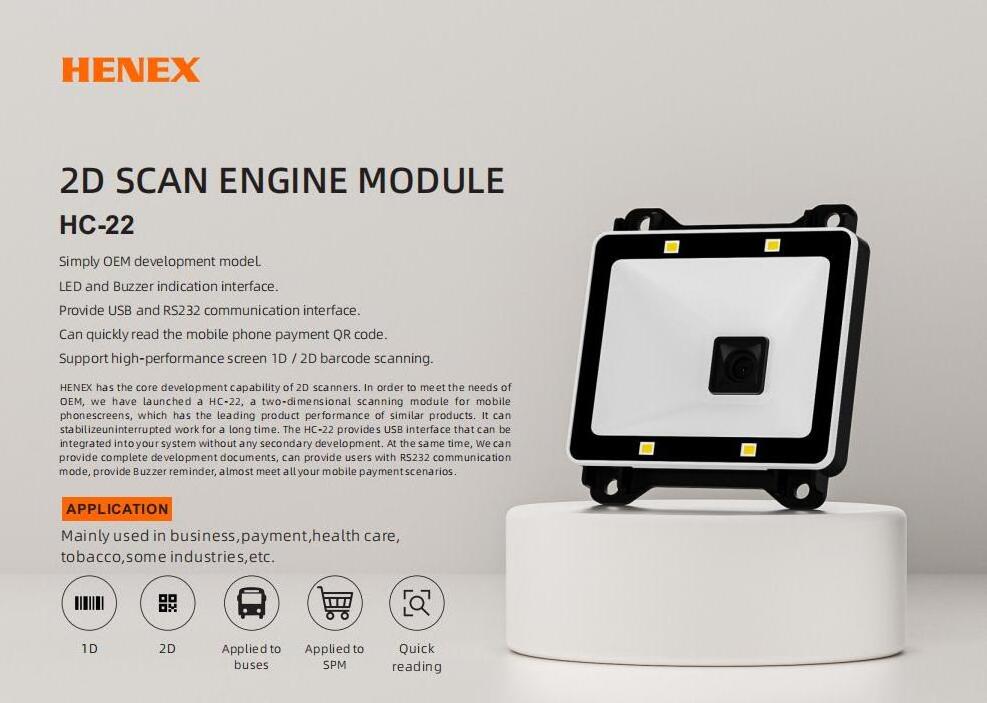

Products Description
|
Model
|
H-22
|
|
|
Features
|

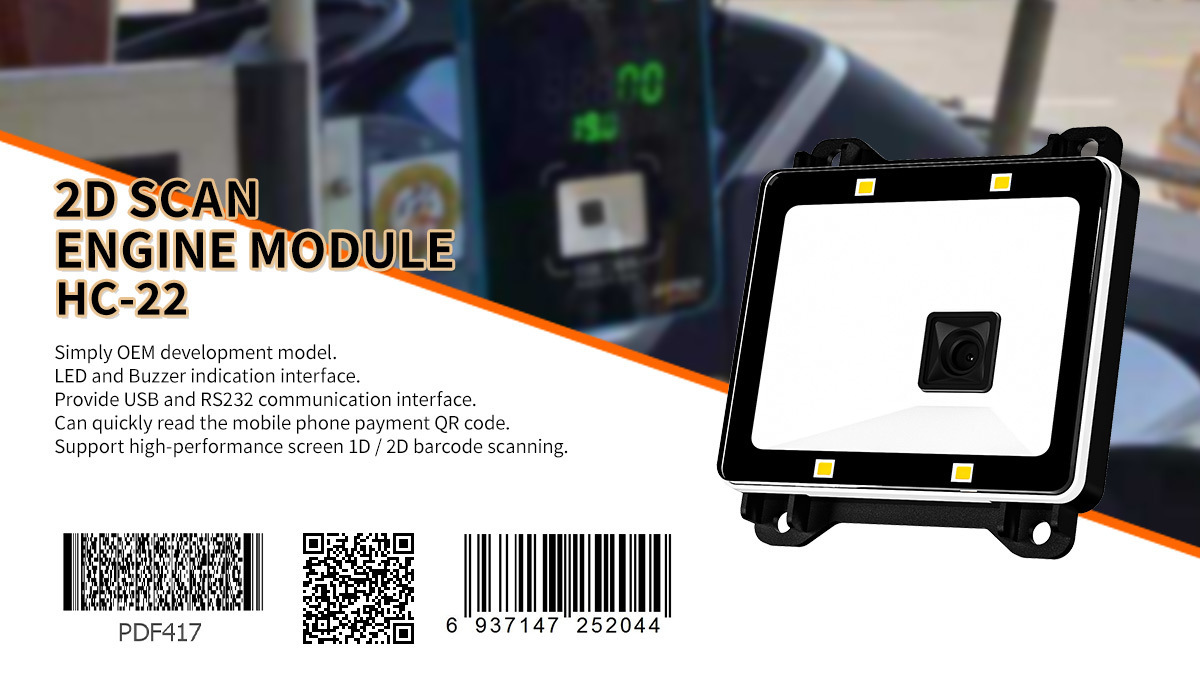

●Simply OEM development model.
●LED and Buzzer indication interface. ●Provide USB and RS232 communication interface. ●Can quickly read the mobile phone payment QR code. ●Support high-performance screen 1D / 2D barcode scanning. |
|
|
Application fifield
|
Mainly used in business,payment,health care,tobacco,some industries,etc.
|
|
|
Technical Specification
|
|
|
|
OPERATIONAL PARAMETER
|
|
|
|
Image (pixels)
|
CMOS 640 x 480
|
|
|
Light Source
|
5600K White LED
|
|
|
Depth of Filed
|
30 mm - 320 mm @mobile payment code
|
|
|
Max Resolution
|
0.127mm(5mil)@Code 39, PCS=90% (20 mm - 80 mm)
|
|
|
Depth of fifiled
|
EAN-13: 50mm-180mm (13mil) Code39: 40mm-90mm (5mil 10 bits)
QR Code: 25mm-240mm (20mil 16bits) Data Marix: 50mm-90mm (10mil 20bits) PDF:417 30mm-130mm (6.67mil 7bits) |
|
|
Print Contrast
|
≥25%(UPC/EAN 100% , PCS 90%)
|
|
|
Scan Angle
|
Elevation angle 365°/Tilt angle ± 55°/Declination ± 55°
|
|
|
Field of view
|
50° horizontal, 40.9° vertical
|
|
|
PHYSICAL CHARACTERISTICS
|
|
|
|
Interface
|
+5.0 V TTL232， USB (HID Keyboard、Virtual COM Port)
|
|
|
Size
|
65.2(w) mm x 61.6(D) mm x 33.3(H) mm
|
|
|
Weight
|
|
|
|
POWER PARAMETER
|
|
|
|
Input Voltage
|
3.3VDC±10%
|
|
|
Working current
|
180mA
|
|
|
ENVIRONMENTAL PARAMETER
|
|
|
|
Operating Temperature
|
-20℃~+50℃
|
|
|
Working Humidity
|
5% to 95% non-condensing
|
|
|
Storage Temperature
|
-40℃~+70℃
|
|
|
Light Levels
|
0~8,600Lux(Fluorescence) 0~100,000Lux(Daytime)
|
|
|

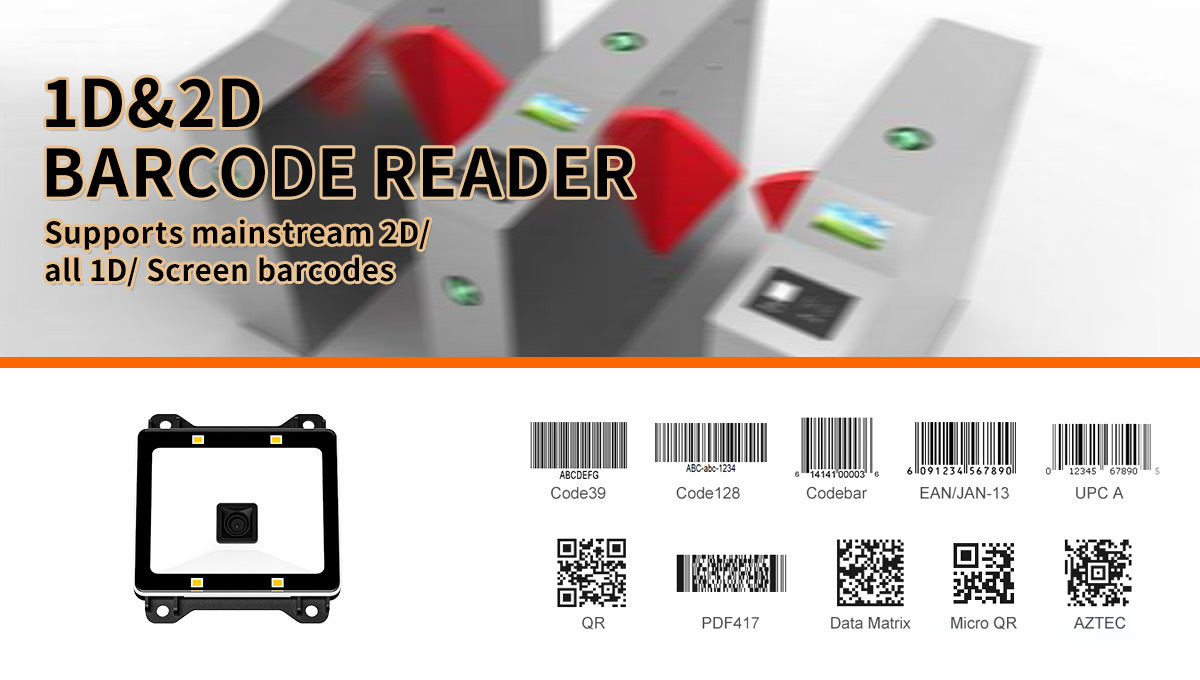

BARCODE TYPES
|
|
|
|
1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar
Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-PlesseyGS1 Databar,
GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5 etc |
|
|
|
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
|
|
|
Decode Type
