Quick Details
-
Place of Origin:
-
Fujian, China
Quick Details
-
Type:
-
panel sector antenna
-
Brand Name:
-
HUAHONG/HHTX
-
Model Number:
-
TDJ-B-18-1722V-65
-
Place of Origin:
-
Fujian, China
Multi-Band Sector Panel Antenna:(1)GSM900:890~960MHz (2)GSM1800:1710~1880MHz (3)CDMA800:824~896 (4)CDMA1900:1880~1920MHz (5) UMTS 1920-2170MHz

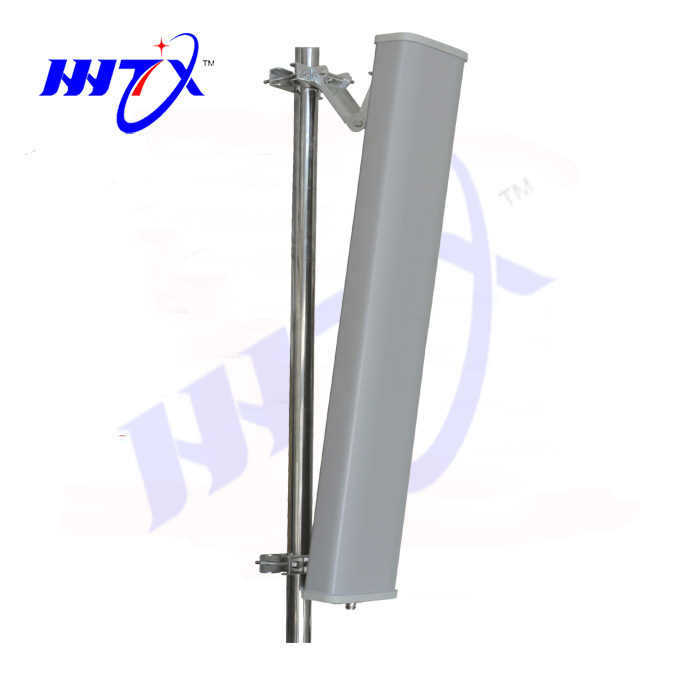

Model: TDJ-B-18-1722V-65
ELECTRICAL SPECIFICATIONS
Frequency Range----------------------- 1710-2170MHz
Impedance--------------------------------- 50Ω
VSWR--------------------------------------- ≤1.5
Gain------------------------------------------ 18dBi
Front to Back Ratio--------------------- >25 dB
Polarization-------------------------------- Vertical
Horizontal 3dB Beam Width--------- 65°
Vertical 3dB Beam Width------------ 7°
Maximum Input Power----------------- 200W
Connector Place------------------------- Bottom
Lighting Protection---------------------- Direct Ground
Connector----------------------------------- N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)---------------------- 1140×160×63 mm
Rated Wind Velocity--------------------- 200 km/h
Operating Temperature----------------- -40°C~60°C
Mounting hardware----------------------- Ø40-Ø80 mm
Radiating Element Material------------ Aluminum Alloy
Reflector Material------------------------- Aluminum Alloy
Radome Material-------------------------- PVC
Radome Color------------------------------ Gray
