will be packed by plastic film and plywoodwe.will can also use pe film for packing or pack it according to costomers
- Product Details
- {{item.text}}
Quick Details
-
Certification:
-
API
-
Volume:
-
32*29*48 cm
-
RPM r/min:
-
120~50
-
NW/GW (KG):
-
75/82
-
Volume::
-
32*29*48 cm
Quick Details
-
Weight (KG):
-
10
-
Place of Origin:
-
China
-
Color:
-
bule red Golden customizable
-
Certification:
-
API
-
Volume:
-
32*29*48 cm
-
RPM r/min:
-
120~50
-
NW/GW (KG):
-
75/82
-
Volume::
-
32*29*48 cm

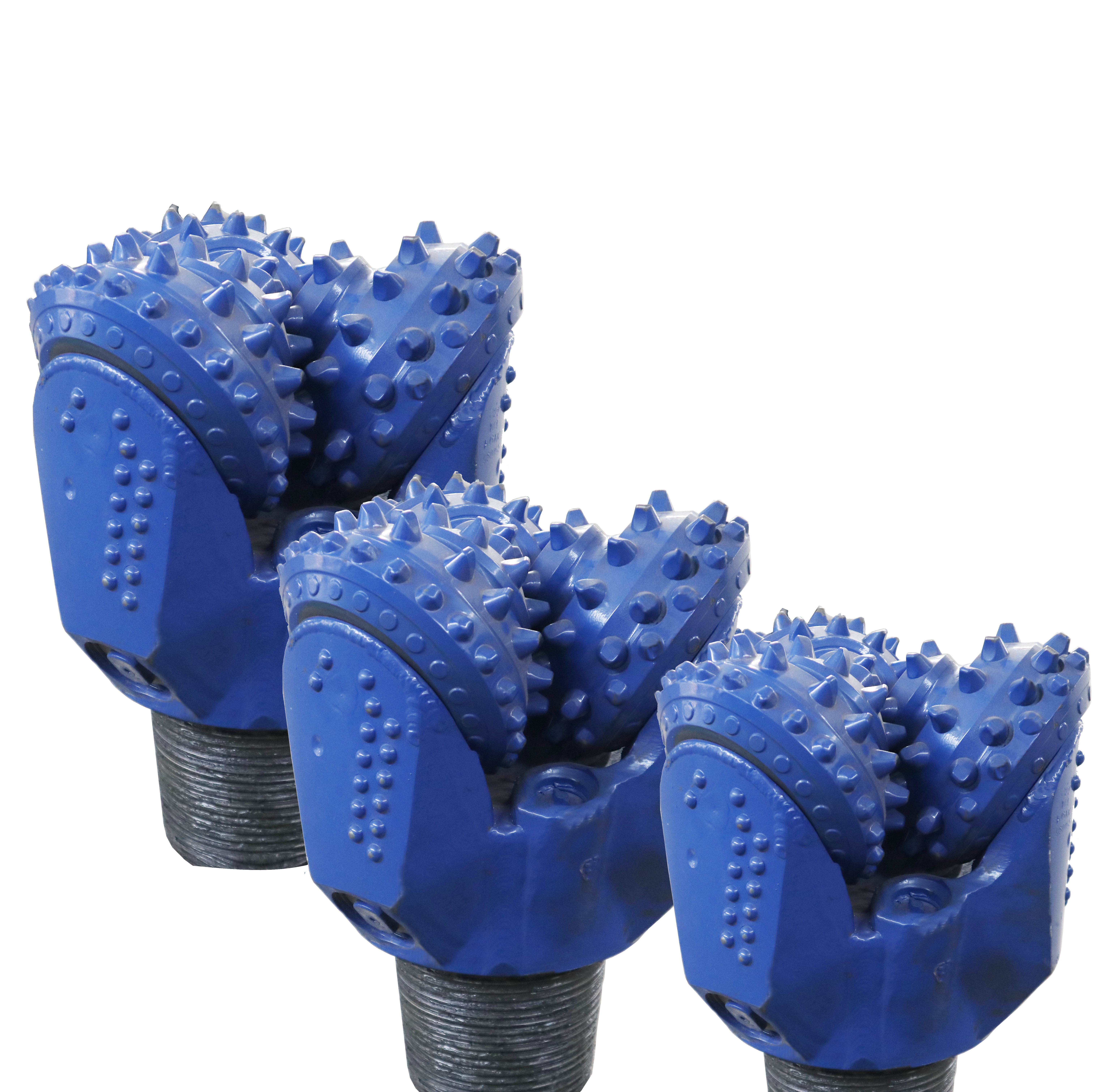

Soft formation TCI tricone bits:
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Hard formation TCI tricone bits:
The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Hard formation TCI tricone bits:
The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
Products Description
|
IADC
|
WOB
|
RPM
|
Applicable Formations
|
|
|
|
(KN/MM)
|
(r/min)
|
|
|
|
|
(Bit Dia)
|
|
|
|
|
116 117
|
0.35~0.8
|
150~80
|
Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
|
|
|
136 137
|
0.35~1.0
|
120~60
|
Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium
soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. |
|
|
216 217
|
0.4~1.0
|
100~60
|
Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft
sandstone,soft formation with harder interbeds ect. |
|
|
246 247
|
0.4~1.0
|
80~50
|
Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
|
|
|
417 437
|
0.35~0.9
|
150~70
|
Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft
limestone,etc. |
|
|
447
|
|
|
|
|
|
517 527
|
0.35~1.0
|
140~60
|
Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect.
|
|
|
537 547
|
0.45~1.0
|
120~50
|
Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft
sandstone,medium formation with harder and abrasiver interbeds,ect. |
|
|
617 627
|
0.45~1.1
|
90~50
|
Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect.
|
|
|
637
|
0.5~1.2
|
80~40
|
Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect.
|
|
Product packaging
PRODUCT PACKING
Other Product
Exhibition
About Us
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
we has always followed our survival principle that “strives for the survival by quality, development through reputation”, and our service tenet “your demand is our demand”. Through continuous technological innovation we try to build our global brand.
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
FAQ
1.What kind of drilling tools can we provide?
Ans.: We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications,our company can produce special specification products to customer requirements.
2.What is the advantages of our products?
Ans.:We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive price.No matter you are dealers or end user,you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide six months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7-10 days after receipt of your payment.
5.What payment terms do we accept?
Ans.: We accept T/T in advance or L/C at sight.
6.We provide customized services for drilling tools, kelly bars and have sold world-wide for BAUER,MAIT, SOILMEC, CASAGRANDA,SANY,XCMG drilling rig etc.
Ans.: We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications,our company can produce special specification products to customer requirements.
2.What is the advantages of our products?
Ans.:We use super quality raw material, which makes the drilling tools more durable and our drilling tools with competitive price.No matter you are dealers or end user,you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide six months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7-10 days after receipt of your payment.
5.What payment terms do we accept?
Ans.: We accept T/T in advance or L/C at sight.
6.We provide customized services for drilling tools, kelly bars and have sold world-wide for BAUER,MAIT, SOILMEC, CASAGRANDA,SANY,XCMG drilling rig etc.
