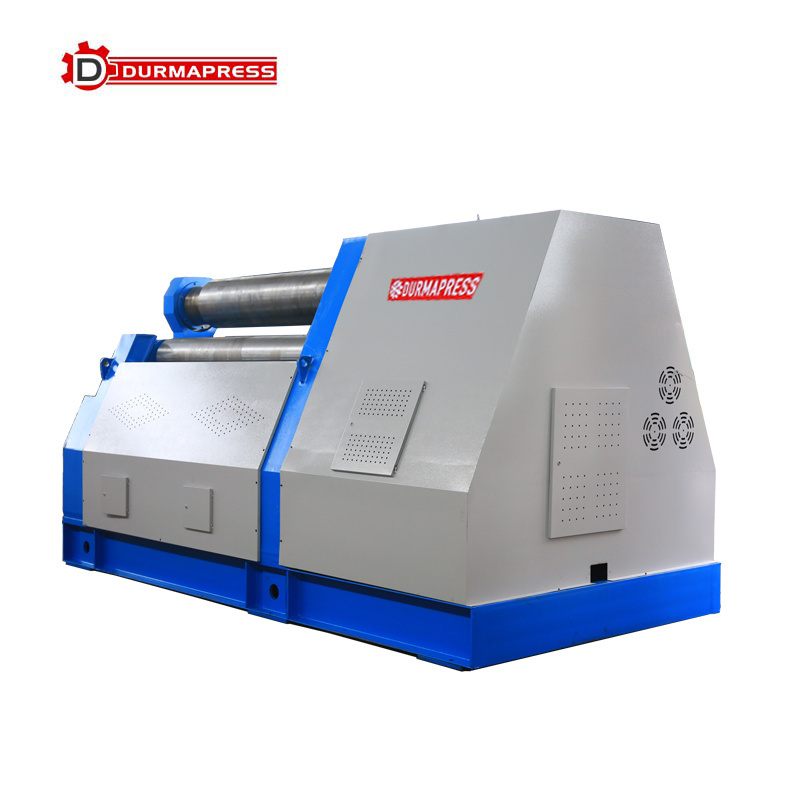

Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine
Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine

Mechanical 3/4 Roller Plate Rolling Machine W12 3000 Length 4 Roller Plate CNC Rolling Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $5984
≥2 Sets
US $5864
≥3 Sets
US $5764
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Marketing Type:
New Product 2024
Place of Origin:
Anhui, China
Brand Name:
Durmapress
Weight (KG):
5600 KG
Motor Power (kw):
15 kw
Product name:
Bending rolling machine
Thickness:
12mm
Raw Material:
Sheet / Plate Rolling
Roller quantity:
3rollers 4rollers
Color:
Customized
Usage:
Metal Sheet Rolling Cutting Bending
Function:
Roll Bending Plate
Application:
Die Making Die Cutting Bending Machine
Main motor:
Seimens

Quick Details

Max. Working Length (mm):
3000 mm
Max. Plate Thickness (mm):
12 mm
No. of Roller:
4
Marketing Type:
New Product 2024
Place of Origin:
Anhui, China
Brand Name:
Durmapress
Weight (KG):
5600 KG
Motor Power (kw):
15 kw
Product name:
Bending rolling machine
Thickness:
12mm
Raw Material:
Sheet / Plate Rolling
Roller quantity:
3rollers 4rollers
Color:
Customized
Usage:
Metal Sheet Rolling Cutting Bending
Function:
Roll Bending Plate
Application:
Die Making Die Cutting Bending Machine
Main motor:
Seimens
Product Description
Rolling Machine
* W11 series plate rolling machine with mechanical drive.When take away work pieces,upper roller can be separated.Upon request,wecan install kinds of side wheels to bend different types metal sheet.
* W12 series rolling machine with four rollers adopt upper roller rotary mechanical drive,lower and side roller fluctuation drive,electric concentrated control opreation system.This machine can complete pre-bending and pipe shaped rolling for one material feeding,arc or moderate taper shaped material can be pre-bend in this machine with minimized residual straight margin and high work efficiency,it also can do the work of the approximate leveling for matal plate to be processed.The machine equipped with NC System contyrol,improve automation level.It is widely used in petroleum,chemical boiler,shipbuilding,metal structure and mechanical manufacturing industry.
Detailed Images
PLC Control System
*HMI(Human Machine interface）intellgent operation.Self-compensating,single operate,high effeciency,safe and convenient.
*Many models for choice,economic numberical control madel
*A PLC control system ensure the machine bottom and lateral rolls operate synchronously.Up to eight steps can be playgrammed eith the touchsceem.
*Passed CE cetification to meet the needs of overseas markets.
W11 Series 3 Roller Plate Rolling Machine
Model
Plate yeild limit (Mpa)
Rolling speed (mm - 1 )
Min dia of plate in full load(mm)
Dia. of upper/lower roller(mm)
Space between of two lower rollers(mm)
Main moter (KW）
Dimension L*W*H(mm)
W11-6*1500
265
7.16
380
180/160
210
5.5
3310*1210*1330
W11-6*2000
265
7.16
380
180/160
220
5.5
3810*1210*1330
W11-6*2500
265
7.16
500
190/170
260
7.5
4310*1210*1330
W11-6*3200
265
6.45
500
240/200
310
11
5220*1400*1200
W11-8*2000
265
7.16
450
190/170
260
7.5
3810*1210*1330
W11-8*2500
265
6.46
500
240/200
310
11
4500*1420*1610
W11-12*2000
265
5
500
240/200
310
11
4050*1420*1610
W11-12*2500
265
5
750
260/220
330
11
5000*1500*1300
W11-12*3000
265
5
650
280/240
360
15
5500*1500*1300
W11-16*2000
265
5
750
260/220
330
11
4500*1500*1300
W11-16*2500
265
5
750
280/240
360
15
5000*1500*1300
W11-16*3200
265
5
900
340/280
440
22
6300*1600*1900
W11-20*2000
265
5
750
280/240
360
15
4500*1500*1300
W11-20*2500
265
5
850
340/280
440
30
5600*1600*1900
W11-25*2000
265
5
850
340/280
440
30
5100*1600*1900
W11-25*2500
265
4.5
900
380/300
490
37
6000*4600*2150
W11-30*2000
265
4.5
900
380/300
490
37
5500*1460*2150
W11-30*2500
265
4.34
1100
460/380
600
45
6900*2300*2800
W11-30*3000
265
5
1200
460/400
600
45
7400*2300*2800
W11-30*3200
265
5
1200
500/400
600
45
7600*2300*2600
W11-40*2000
265
5
1200
480/400
600
45
6400*2300*2800

Features:

Nowadays, plate bending has become more and more a CNC-supported operation. DURMAPRESS ® was the first manufacturer to use CNC on four roll-plate bending machines specifically designed for bending circular cans for applications like wind tower production and also complex shapes for applications like tank production. DURMAPRESS ® is continuously developing innovative numerical controls for three-roll production, specifically indicated for the production of thick cones or heavy duty cans.
W12 Series 4 Roller Plate CNC Rolling Machine
Model
Rolling speed（m/min）
Pre-Bending Thickness (mm)
Min dia. of plate in full load (mm）
Dia. of upper/lower /sider roller （mm））
Main moter (KW）
Dimension L*W*H(mm)
W12-8*2000
6.1
6
700
280/260/180
11
8300*1400*1760
W12-8*2500
6.1
6
750
300/260/180
15
6100*2000*2070
W12-12*2000
5.5
10
700
300/280/230
15
5600*2000*2070
W12-12*2500
5.5
10
750
340/300/260
22
6300*2000*1800
W12-12*2000
4
10
850
380/340/280
30
7600*2000*2150
W12-16*4000
5.5
12
750
340/300/260
22
5800*2000*1800
W12-16*2500
6.5
12
850
350/320/280
30
6810*2000*1870
W12-20*2000
6.5
16
850
350/320/280
30
6000*2000*1850
W12-20*2500
6.5
16
1000
400/380/320
37
6850*2000*2070
W12-20*3000
4.5
16
1100
450/420/350
45
7310*2100*2200
W12-25*2000
6.5
22
1000
400/380/320
37
6300*2300*2070
W12-25*2500
5
22
1100
450/420/350
45
8000*2600*2100
W12-25*3000
5
22
1150
480/460/380
55
9000*3200*2500
W12-25*4000
4
22
1200
540/500/450
63
10100*3500*2900
W12-30*2000
5
25
1100
450/420/350
45
7500*2600*2500
W12-30*2500
4.5
25
1150
480/460/380
55
8400*2590*2600
W12-30*3000
4
25
1300
560/520/420
60
9200*3500*2900
W12-30*4000
4
25
1500
650/600/480
60
10200*3500*2900
W12-40*2000
4.5
36
1200
520/500/400
45
8200*3000*2500
W12-40*2500
4
36
1300
560/520/420
60
8700*3500*2900

Description of Main Components :

This machine is reliable and effective. The parallelism of the side rolls is controlled by a torsion bar system that connects to both ends of the side roll, eliminating the disadvantage of extra encoders and special hydraulic balancing valves. The two central rolls are driven by hydraulic motors and high efficiency planetary gearboxes coupled directly on the rolls. The Durmapress solution, with rolls assembled on sealed bearings and without secondary components, reduces the dispersions of the applied force generated by the frictions of the various components (typical in synchronization systems used in Press Brake).
Name
Details
Manufacture
Remarks
Hydraulic System
*Pump Station
ChangYuan , China
Options : Sunny
USA

*Valve
Yuken , Japan
/
Control Device
*Low Voltage Apparatus
Siemens, Germany
/
Drive Device
*Motor
Hanzhu , Ningbo
/
Side Frame and Chassis
*Material
Q235
Standard

*Techniques
Side Roller Lift cylinder
material for 45# forgings ,
quenching and tempering
heat treatment HB217-255
/
Working Roller
*Material
42CrMo
Standard

*Techniques
Forging piece go through
rough machining then
quenching and tempering
treatment at HB241-280
/
Electrical Control System
*Touchwin from China
Durmapress
/
Sealings
*NOK
Japan
/
Bearing
*WFD
China
/
PLC Encoder
*Omron
Japan
/
Other Electrical Parts
*Simens
German
/

Optional Components

* Top and lateral support rack for big diameter * Ground and polished rolls for special job
* Safety cable
* Fan cooled or water cooled
* Cone bending device
