Quick Details
-
Voltage:
-
220V, 380V or customized
-
Power:
-
6KW
-
Dimension(L*W*H):
-
1930*1150*1315MM
-
Weight (KG):
-
300
-
Marketing Type:
-
hot product 2023
-
Evaporation Capacity(kg/h):
-
3-85
-
Air direction:
-
side
-
After Warranty Service::
-
Video technical support
-
Noise:
-
Low Noise Dry Oven
-
Advantage:
-
Low Consumption High Efficiency
-
Certification:
-
ISO9001&ISO14001&CE
-
Compressor type:
-
High temperature fully enclosed scroll compressor
-
After Warranty Service:
-
Video technical support
-
Refrigerant:
-
R134a
-
Ambient temperature range:
-
-5~43
Quick Details
-
Type:
-
heat pump dryer
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianjie
-
Voltage:
-
220V, 380V or customized
-
Power:
-
6KW
-
Dimension(L*W*H):
-
1930*1150*1315MM
-
Weight (KG):
-
300
-
Marketing Type:
-
hot product 2023
-
Evaporation Capacity(kg/h):
-
3-85
-
Air direction:
-
side
-
After Warranty Service::
-
Video technical support
-
Noise:
-
Low Noise Dry Oven
-
Advantage:
-
Low Consumption High Efficiency
-
Certification:
-
ISO9001&ISO14001&CE
-
Compressor type:
-
High temperature fully enclosed scroll compressor
-
After Warranty Service:
-
Video technical support
-
Refrigerant:
-
R134a
-
Ambient temperature range:
-
-5~43
Small Mini Vacuum Freeze Drying Food Household Home Freeze Dryer for Sale

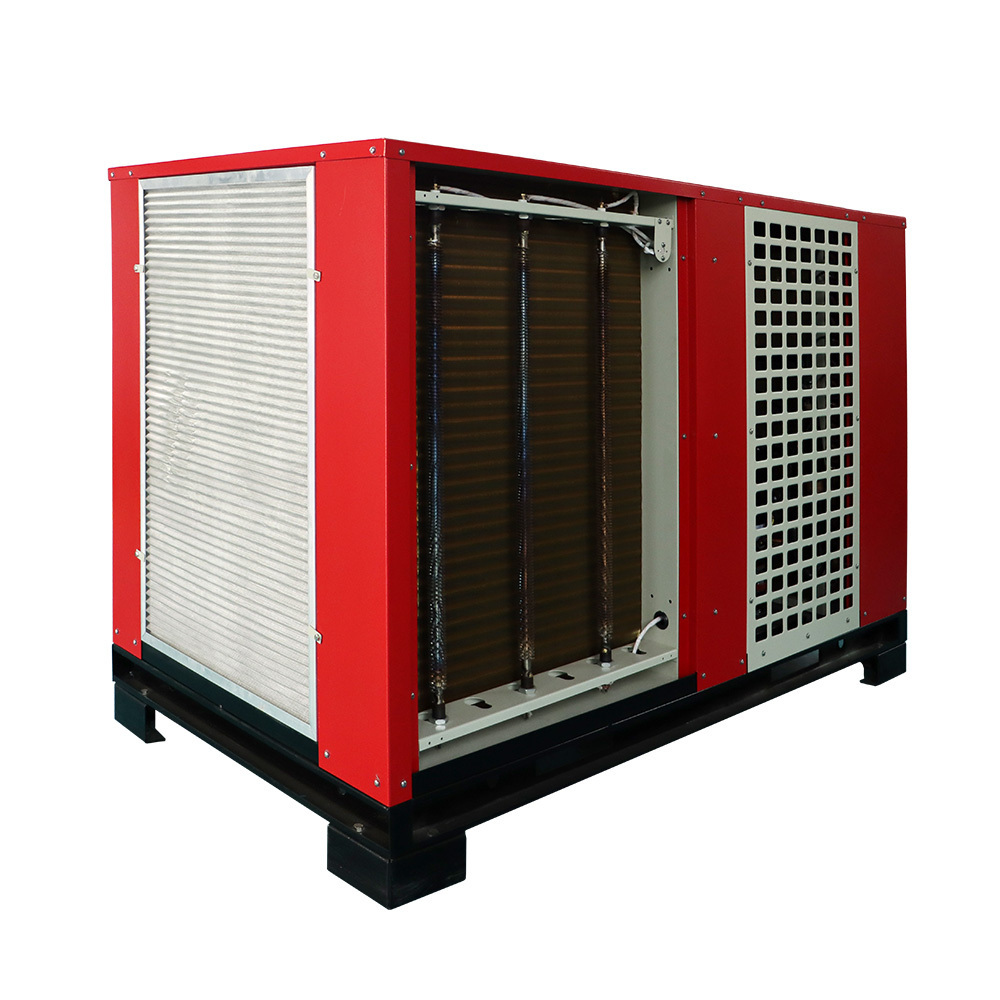

Heat Pump Dryer Hot Air Industrial Wood Dryer Dehydrator Wood Kiln Dryer
The air energy heat pump dryer is a new type of energy-saving drying equipment that integrates dehumidification heating, and drying. The equipment is equipped with multiple heat recovery devices, which effectively improves the utilization of heat energy. Compared with ordinary heat pump drying equipment, Energy saving is more than 70%, which greatly saves operating costs.
How does a heat pump save energy?
Consume 1kw electrical energy to transfer 3kw heat energy,you can get 4kw heat energy.
1kw electrical energy=4kw heat energy
| Item Name | Integral side air supply scroll | |||||||
| Unit Type | 3P | 5P | 7P | 12P | 15P | 20P | 25P | |
| Drying temperature range | ℃ | 30~75 | ||||||
| Ambient temperature range | ℃ | -5~43 | ||||||
| Power type | 380V 3N 50HZ | |||||||
| Compressor type | High temperature fully enclosed scroll compressor | |||||||
| Number of compressors | N | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Refrigerant | R134A | |||||||
| Rated heating capacity | kW | 8.7 | 15.6 | 22.0 | 38.0 | 45.0 | 65.0 | 77.0 |
| Rated input power | kW | 2.7 | 4.9 | 6.3 | 12.3 | 12.5 | 18.6 | 22.3 |
| Rated current | A | 6.9 | 10.3 | 13.2 | 25.2 | 26.4 | 45.6 | 56.6 |
| Electric heating power | kW | 6 | 9 | 12 | 18 | 18 | 24 | 30 |
| Electric heating power | kW | 9.3 | 14.5 | 19.5 | 32.4 | 32.8 | 46.1 | 56.5 |
| Input current | A | 17.3 | 28.1 | 34.9 | 55.8 | 60.8 | 91.6 | 108.9 |
| Circulation fan power | kW | / | / | / | / | / | / | / |
| Rated air volume | m³/h | / | / | / | / | / | / | / |
| Dehumidification fan powe | kW | 0.3 | 0.3 | 0.37 | 0.55 | 0.55 | 0.74 | 1.1 |
| Fresh air volume | m³/h | 2000 | 2000 | 2500 | 4000 | 4000 | 6000 | 8000 |
| Moisture displacement | kg/h | 15 | 20 | 25 | 42 | 50 | 65 | 80 |
| Size | mm | 1620×910×1104 | 1740×980×1203 | 1800×1030×1403 | 2170×1240×1624 | 2170×1240×1624 | 2350×1560×1754 | |
