Quick Details
-
Warranty:
-
25 years
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1310*1080*35mm
-
Product name:
-

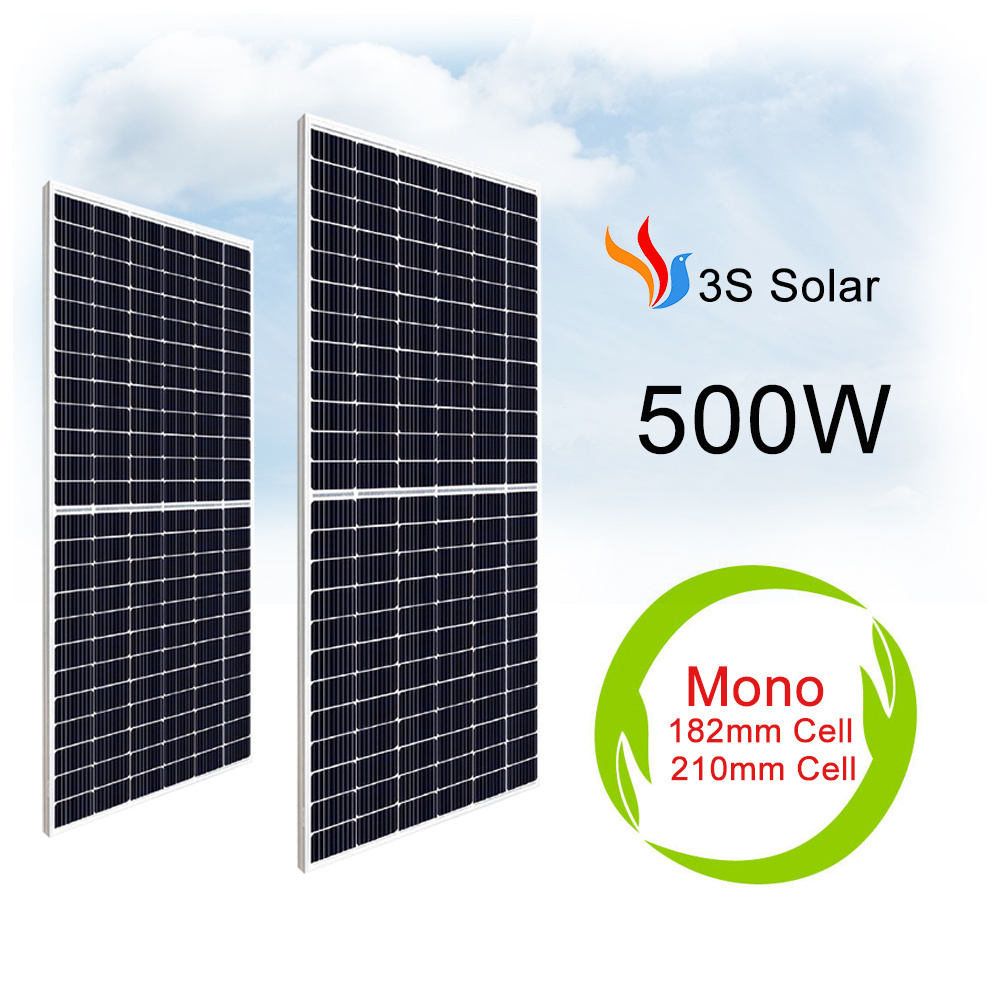

Monocrystalline Silicon Solar Panel
-
Application:
-
Solar Power System
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Compatible Connector
-
Weight:
-
15.7kg
-
Glass:
-
3.2mm Tempered Low Iron
-
Cable:
-
4mm2
-
OEM Order:
-
Acceptable
-
Certificate:
-
CE/TUV/ISO
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
300w
-
Warranty:
-
25 years
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1310*1080*35mm
-
Product name:
-
Monocrystalline Silicon Solar Panel
-
Application:
-
Solar Power System
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Compatible Connector
-
Weight:
-
15.7kg
-
Glass:
-
3.2mm Tempered Low Iron
-
Cable:
-
4mm2
-
OEM Order:
-
Acceptable
-
Certificate:
-
CE/TUV/ISO
|
Product Information
|
|
|
|
|
|
|
|
|||||||
|
Module
|
Vmp(V)
|
Imp(A)
|
Voc(V)
|
Isc(A)
|
η(%)
|
Size
(MM) |
Weight
(KG) |
|||||||
|
500W48V
|
52.3
|
9.53
|
63.1
|
10.12
|
19.37
|
1956*1320*40
|
27.6KG
|
|||||||
|
480W48V
|
51.1
|
9.42
|
62.1
|
10.02
|
18.59
|
1956*1320*40
|
27.6KG
|
|||||||
|
400W38.5V
|
41.3
|
9.73
|
49.0
|
10.31
|
20.17
|
1979*1002*40
|
21.5KG
|
|||||||
|
385W36V
|
40.0
|
9.63
|
47.9
|
10.22
|
19.42
|
1979*1002*40
|
21.5KG
|
|||||||
|
375W36V
|
39.2
|
9.53
|
47.3
|
10.12
|
18.91
|
1979*1002*40
|
21.5KG
|
|||||||
|
360W36V
|
38.3
|
9.42
|
46.6
|
10.02
|
18.15
|
1979*1002*40
|
21.2KG
|
|||||||
|
330W32V
|
34.0
|
9.70
|
40.6
|
10.27
|
19.82
|
1665*1000*35
|
19.5KG
|
|||||||
|
315W32V
|
32.9
|
9.56
|
39.6
|
10.14
|
18.92
|
1665*1000*35
|
19.5KG
|
|||||||
|
300W32V
|
31.9
|
9.42
|
38.8
|
10.02
|
18.02
|
1665*1000*35
|
19.5KG
|
|||||||
|
300W36V
|
37.6
|
7.98
|
49.0
|
8.46
|
20.16
|
1500*992*35
|
17.9KG
|
|||||||
|
280W36V
|
36.4
|
7.69
|
43.7
|
8.07
|
18.82
|
1500*992*35
|
17.9KG
|
|||||||
|
260W36V
|
37.6
|
6.92
|
45.1
|
7.26
|
19.60
|
1340*990*35
|
15.6KG
|
|||||||
|
250W36V
|
36.4
|
6.86
|
43.7
|
7.21
|
18.81
|
1340*992*35
|
15.6KG
|
|||||||
|
230W36V
|
37.6
|
6.12
|
45.1
|
6.43
|
19.36
|
1200*990*35
|
14.7KG
|
|||||||
|
200W18V
|
20.6
|
9.73
|
24.5
|
10.31
|
19.87
|
1480*680*30
|
11.2KG
|
|||||||
|
180W16V
|
17.7
|
10.17
|
21.0
|
10.75
|
20.05
|
1320*680*30
|
9.6KG
|
|||||||
|
170W16V
|
17.3
|
9.82
|
20.5
|
10.37
|
18.94
|
1320*680*30
|
9.6KG
|
|||||||
|
160W16V
|
16.7
|
9.63
|
20.0
|
10.22
|
17.83
|
1320*680*30
|
9.6KG
|
|||||||
|
150W16V
|
16.0
|
9.42
|
19.4
|
10.02
|
16.71
|
1320*680*30
|
9.6KG
|
|||||||
Solar Cell
> High efficiency 5BB PV cell
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
Glass
> Antireflective glass> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
Frame
> Stock-size
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
EVA
>High Transmittance EVA,>High GEL Content To Provide Good Encapsulation
>Protect Cells From Vibration With Longer Durability.
>Protect Cells From Vibration With Longer Durability.
Humanized design
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
