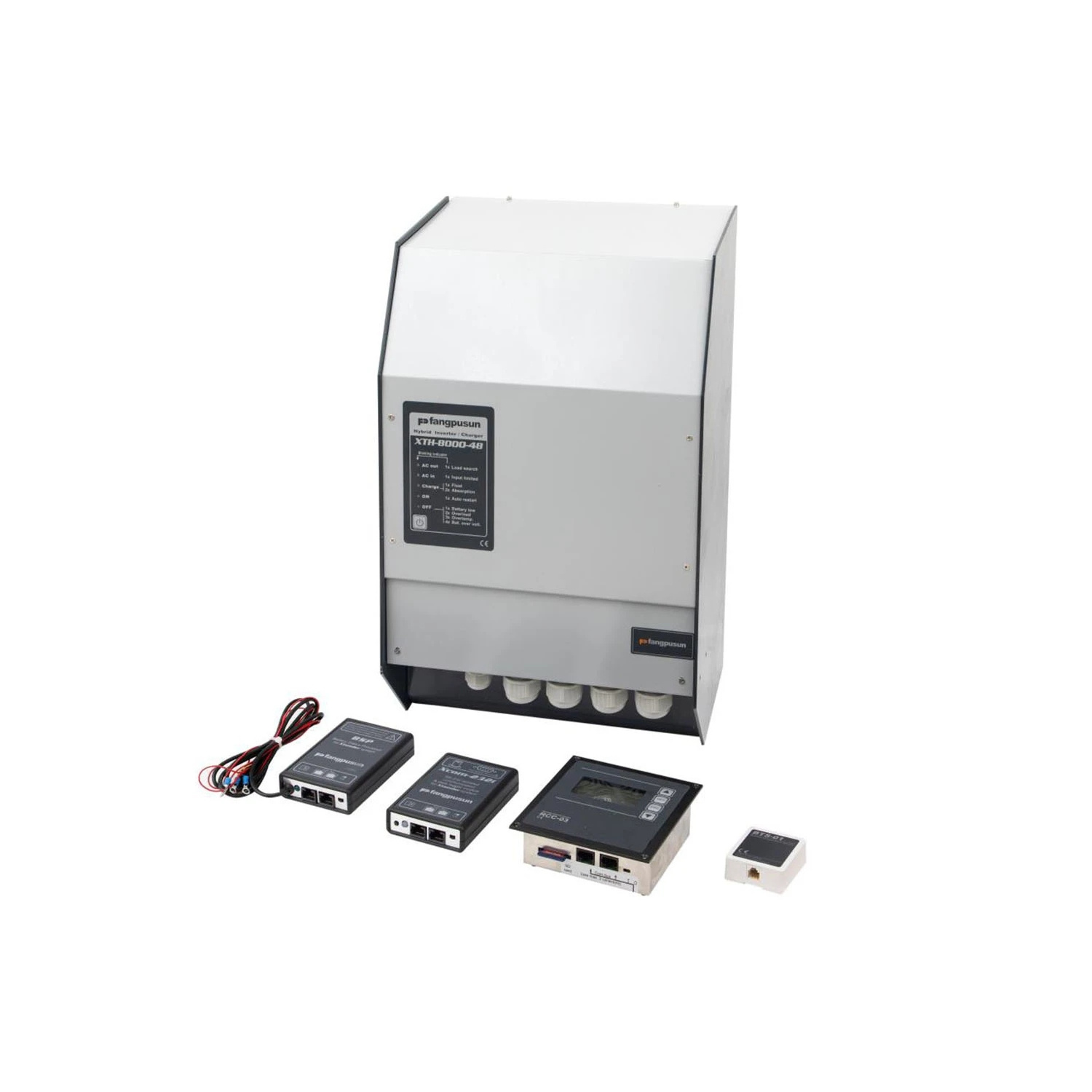

Inverter / Charger XTH 8000-48 (7000W/48V) With Battery Charger 0-120A

Inverter / Charger XTH 8000-48 (7000W/48V) With Battery Charger 0-120A

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1962

≥5 Pieces

US $1783.63

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XTH 8000-48

Output Frequency:: 50Hz/60Hz

Size:: 230*300*500mm

Weight:: 47KG

Norminal Battery voltage:: 48V

Input voltage range:: 38-68VDC

Continuous power:: 7000VA

Power 30min:: 8000VA

Power 5sec:: 21KVA

Max.efficiency:: 96%

Output voltage:: Pure Sine Wave 230VAC / 120VAC

Output frequency:: 45Hz-60Hz

Protection index:: IP20

Warranty:: 5 Years

Quick Details

Output Current:: 50Aac/80Aac

Place of Origin:: Zhejiang, China

Brand Name:: Fangpusun

Model Number:: XTH 8000-48

Output Frequency:: 50Hz/60Hz

Size:: 230*300*500mm

Weight:: 47KG

Norminal Battery voltage:: 48V

Input voltage range:: 38-68VDC

Continuous power:: 7000VA

Power 30min:: 8000VA

Power 5sec:: 21KVA

Max.efficiency:: 96%

Output voltage:: Pure Sine Wave 230VAC / 120VAC

Output frequency:: 45Hz-60Hz

Protection index:: IP20

Warranty:: 5 Years

Inverter / Charger XTH 8000-48 (7000W/48V) With Battery Charger 0-120A

Xtalent XTM Models : XTM 1500-12 ; XTM 2000-12 ; XTM 2400-24 ; XTM 3500-24 ; XTM 2600-48 ; XTM 4000-48

Xtalent XTH Models : XTH 3000-12 ; XTH 5000-24 ; XTM 6000-48 ; XTH 8000-48

Overview

A series of products allowing for system capacities from 0.5kVA to 72kVA that allow for the optimal use of available energy, either as an off-grid inverter, battery charger, current injector, or support to an AC source. The Xtalent is a high-tech device and a key player in the management of an energy system.

Flexible
The Xtalent series is comprised of three groups by power level corresponding to the XTS, XTM and XTH models. Whether configured individually, in parallel, split-phase, or three-phase, these devices allow for complete flexibility with respect to the desired energy system concept.

With its sophisticated software, the Xtalent can be used in a wide range of applications. The Xtalent series products are ideal devices for specific markets that need revolutionary solutions with all types of battery technologies.

Ease of use
The Xtalent fulfils the requirements of the majority of applications with its factory settings, which makes it a plug & play device. Energy flows automatically and the auxiliary contacts are configured to provide genset auto-start and alarm functions.

The LEDs on the Xtalent front panel allow the user to see in a quick glance how the device is working.

5 in 1
The Xtalent is a true energy manager, unique and compact, that has 5 main functions. It can be an off-grid inverter, battery charger, current injector, transfer system and provide support to an AC source. With these functions, the available energy can be managed and used in an intelligent and efficient manner.

	Power P30 / Pnom [VA]	Battery voltage Unom [V]	Corriente de transferencia Imax [A]	Charger current Imax [A]
XTM 1500-12	1500 / 1500	12	50	70
XTM 2000-12	2000 / 2000	12	50	100
XTM 2400-24	2400 / 2000	24	50	55
XTM 2600-48	2600 / 2000	48	50	30
XTM 3500-24	3500 / 3000	24	50	90
XTM 4000-48	4000 / 3500	48	50	50
XTH 3000-12	3000 / 2500	12	50	160
XTH 5000-24	5000 / 4500	24	50	140
XTH 6000-48	6000 / 5000	48	50	100
XTH 8000-48	8000 / 7000	48	50	120

Features and performances

True sine wave voltage
Reliable and silent with any kind of load
Outstanding overload capabilities
Smart-Boost function for assistance to the source even with difficult loads
Automatic reduction of peak loads (power shaving)
Multi-stage programmable battery charger with PFC ( Power Factor Correction)
Stand-by level adjustable over a large range and from a very low threshold
Ultra-fast transfer relay
Control by digital signal processors (DSP)
High efficiency
2-year warranty

Functions

* Connection possibilities

* The Smart-Boost function

* Automatic management of two different energy sources

* Data logger and analysis function

* Operating with a variable power generator

* Battery as main energy source

* Solsafe - A backup system for grid connected solar installations

Accessories

* RCC-03 Remote Control and Programming Centre

The RCC-03 enables the user to supervise the system and to completely adapt it to the needs through the many parameter settings available on the Xtalents, on the VarioTracks and on the VarioStrings.

Thanks to its digital display, the RCC-03 provides clear and comprehensive indications on the state of the system in the chosen language.

The device memorizes the events that occurred on an installation and therefore anticipates any future problems.

A SD card reader is available and allows parameters recording, as well as the uploading of various pre-settings and of all future updates.
