Quick Details
-
Applicable Models:
-
all, connector every kinds car OBD
-
Combination:
-
Cooling System Pressure Tester, Automobile water tank leak detector
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BX
-
Model Number:
-
ZD18
-
Warranty:
-
6 Months, 6 Months
-
Product Name:
-
Auto Smoke Machine EVAP Tester Leak Detector
-
Color:
-
Picture Shows
-
Function:
-
Multi Function
-
Dimensions:
-
26*20*18cm
-
Material:
-
carbon steel
-
MOQ:
-
2
-
Keywords:
-
Smoke Gas Leak Leakage Tester Detector
Quick Details
-
Car Fitment:
-
BMW (BRILLIANCE), Audi, Mercedes Benz
-
Voltage:
-
12V, 12-24v
-
Power:
-
10W
-
Applicable Models:
-
all, connector every kinds car OBD
-
Combination:
-
Cooling System Pressure Tester, Automobile water tank leak detector
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BX
-
Model Number:
-
ZD18
-
Warranty:
-
6 Months, 6 Months
-
Product Name:
-
Auto Smoke Machine EVAP Tester Leak Detector
-
Color:
-
Picture Shows
-
Function:
-
Multi Function
-
Dimensions:
-
26*20*18cm
-
Material:
-
carbon steel
-
MOQ:
-
2
-
Keywords:
-
Smoke Gas Leak Leakage Tester Detector
Oem Portable AUTOOL Sdt103 Car Evay System Smoke Test Machine For A Car Electric Vehicles Tools
|
Type
|
Engine Analyzer
|
|
Voltage
|
DC12V
|
|
Power
|
9-30w
|
|
Applicable Models
|
ALL Cars
|
|
Combination
|
pipeline leak tester, fuel tank test
|
|
Place of Origin
|
China
|
|
Warranty
|
3Years
|
|
Product Name
|
Evap Smoke Tester Leak Detector Diagnostic Tool
|
|
Function
|
Pipe Leak Sealing Evap System Test
|
|
Keywords
|
Smoke Gas Leak Leakage Tester Detector
|
|
Weight
|
2.7kg
|
|
Application
|
Universal Cars
|
|
Dimensions
|
26*20*18cm
|
|
Support
|
DC 12V
|
|
Output Folow
|
5L/min
|
|
Warranty
|
3 years
|
|
Output Pressure
|
3.2kpa(0.46psi)
|
Why detecting leaks in the automotive EVAP system is suggested?
With the implementation of the international emission standards represented by CARB LEV III and EURO 6 and the requirements of
on-board diagnostic systems, nowadays vehicles need to have on-board diagnostic function for small leakage (0.5mm or 1mm aperture)
emissions of EVAP system. Compared with vehicles without on-board diagnostic requirements, the frequency of EVAP system leakage
alarms will increase. Therefore, car owners go to the maintenance station to for EVAP system inspection more often. The demand for
leak inspection and leak finding will also rise accordingly. For the special maintenance site of the vehicle enterprise, it is

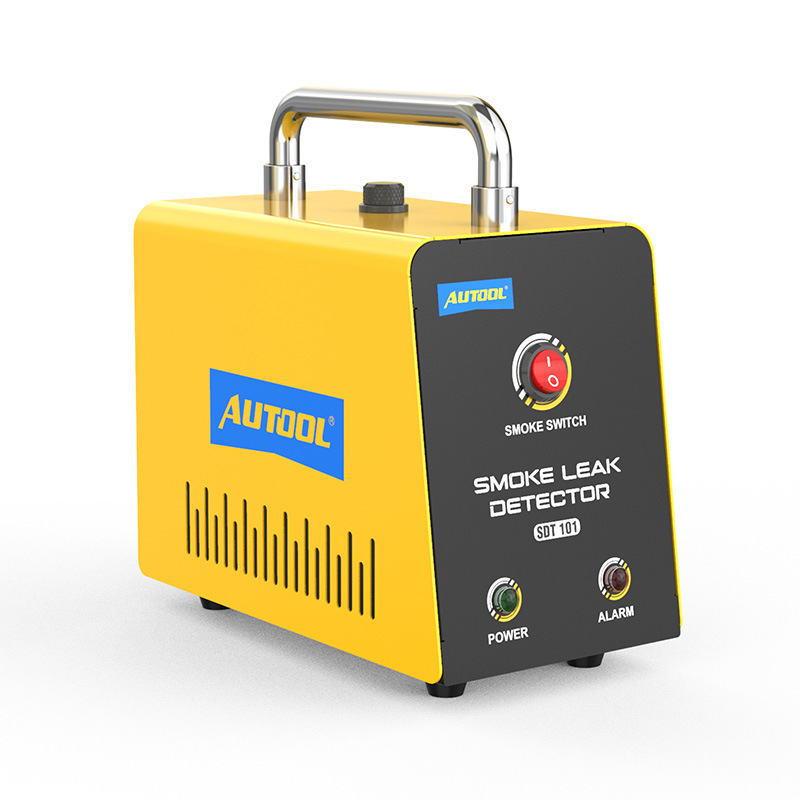

necessary to be equipped with professional EVAP leak inspection and special tools for locating leak points. The AUTOOL SDT101
automotive EVAP leak detector is a powerful maintenance tool, suitable for EVAP system detection.
Why do customers need AUTOOL SDT101 ?
AUTOOL SDT101 model is easy to operate. It can help you quickly and accurately find if a failure is caused by a plumbing leak,
even the smallest leaks can be detected. Through the precise pressure regulation of the external air supply, SDT 101 can output
the standard test pressure of 32mbar required by the automotive EVAP system. Moreover it can output smoke within a few seconds,
greatly improving the diagnostic efficiency. SDT 101 can be widely used in all SUVs, MPVs, racing cars and household pickups with
EVAP system, as well as trucks, engineering vehicles, tractors etc.It can accurately find vehicle problems and diagnose faults
with automatic diagnostic tools.
With the implementation of the international emission standards represented by CARB LEV III and EURO 6 and the requirements of
on-board diagnostic systems, nowadays vehicles need to have on-board diagnostic function for small leakage (0.5mm or 1mm aperture)
emissions of EVAP system. Compared with vehicles without on-board diagnostic requirements, the frequency of EVAP system leakage
alarms will increase. Therefore, car owners go to the maintenance station to for EVAP system inspection more often. The demand for
leak inspection and leak finding will also rise accordingly. For the special maintenance site of the vehicle enterprise, it is
necessary to be equipped with professional EVAP leak inspection and special tools for locating leak points. The AUTOOL SDT101
automotive EVAP leak detector is a powerful maintenance tool, suitable for EVAP system detection.
Why do customers need AUTOOL SDT101 ?
AUTOOL SDT101 model is easy to operate. It can help you quickly and accurately find if a failure is caused by a plumbing leak,
even the smallest leaks can be detected. Through the precise pressure regulation of the external air supply, SDT 101 can output
the standard test pressure of 32mbar required by the automotive EVAP system. Moreover it can output smoke within a few seconds,
greatly improving the diagnostic efficiency. SDT 101 can be widely used in all SUVs, MPVs, racing cars and household pickups with
EVAP system, as well as trucks, engineering vehicles, tractors etc.It can accurately find vehicle problems and diagnose faults
with automatic diagnostic tools.
Full system diagnostics, don't miss any leaks.
Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and
cause oil leakage.
Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in
scant engine power.
Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not
soundproof, and not waterproof , etc.
Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of
the fuel tank cap, it can cause leaks in the fuel tank system.
Turbo Test: The leakage of coolant would cause the engine to report high water temperature.
Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system
hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.
EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and
pollution or unstable engine idling.
Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main
disadvantage when leaks happened in the exhaust.
Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and
cause oil leakage.
Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in
scant engine power.
Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not
soundproof, and not waterproof , etc.
Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of
the fuel tank cap, it can cause leaks in the fuel tank system.
Turbo Test: The leakage of coolant would cause the engine to report high water temperature.
Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system
hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.
EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and
pollution or unstable engine idling.
Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main
disadvantage when leaks happened in the exhaust.
Small size design
Most smoke leak detectors are bulky and heavy, which are not convenient for transportation and storage, so repair shops are their main users. To solve this issue, AUTOOL designed this 4-pound machine to be small and light, not only for storage but also for ease of use. It is an indispensable tool for any car owner.
Fast smoke output
AUTOOL SDT101 uses an external air supply and has a superior wick and heating elements. It can produce smoke immediately by heating USP mineral oil or baby oil. A 4ft exhaust pipe helps make the perfect connection.
Overheating and antifreeze protection
Our smoke leak detector is equipped with the latest intelligent protection devices. When the temperature exceeds 75 degrees Celsius, the protection device will start and shut down the power intelligently to protect the operator and the equipment. Our device is also suitable for low temperature operation.
