- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
DXF, BMP, JPG,PNG,NC
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOMSTACK
-
Dimension(L*W*H):
-
570*600*270mm
-
Weight (KG):
-
14 KG
-
Warranty of core components:
-
13 months
-
Material:
-
Aluminum Alloy Frame
-
Key Selling Points 2:
-
High Rigidity,Long Service Life,Automatic,Flexible Manufacturing,
-
Control Software:
-
LaserGRBL, LightBurn,APP
-
Feature 2:
-
Portable,Programmable,Multifunction,Automated
-
Laser output power:
-
6W power
-
After-sales service provided:
-
Online support,Video technical support
-
Data transmission method:
-
USB connection
-
Style:
-
Portable Mini Desktop Laser Engraver
-
Color:
-
Luxury Gray
-
Support customization:
-
OEM,ODM
Quick Details
-
Engraving Area:
-
365mm*305mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
36000mm/min
-
Graphic Format Supported:
-
DXF, BMP, JPG,PNG,NC
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOMSTACK
-
Dimension(L*W*H):
-
570*600*270mm
-
Weight (KG):
-
14 KG
-
Warranty of core components:
-
13 months
-
Material:
-
Aluminum Alloy Frame
-
Key Selling Points 2:
-
High Rigidity,Long Service Life,Automatic,Flexible Manufacturing,
-
Control Software:
-
LaserGRBL, LightBurn,APP
-
Feature 2:
-
Portable,Programmable,Multifunction,Automated
-
Laser output power:
-
6W power
-
After-sales service provided:
-
Online support,Video technical support
-
Data transmission method:
-
USB connection
-
Style:
-
Portable Mini Desktop Laser Engraver
-
Color:
-
Luxury Gray
-
Support customization:
-
OEM,ODM
Production Certification :
Products Specification
|
Model number
|
ATOMSTACK A6/X6 Pro 50W
|
|
Engraving Area
|
within 365*305mm
|
|
Electric power
|
50W
|
|
Certification
|
CE, ROHS, FCC
|
|
Wave Length
|
445 ± 5nm
|
|
Engraving accuracy
|
0.01mm
|
|
Laser protective cover
|
Protect the user's eyes and prevent pets from grabbing the laser spot .
|
|
Focusing method
|
fixed focus laser, no need to focus
|
|
Input Voltage
|
AC(100-240V 50-60Hz)
|
|
Output Voltage
|
DC(24V 5A)
|
|
Applicable Materials For Caver
|
All wood , bamboo , paper , plastic , leather , PCB board , aluminum oxide , non-reflective plating and lacquered metal
|
|
Applicable Materials For Cutting
|
Cardboard , non-woven fabric , light wood ,Acrylic material , thin plastic board .
|
|
Data Transfer Method
|
USB, APP
|
|
Operating software
|
LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / Win 10 system.
|
|
Input Format
|
BMP, JPG, PNG, NC,DXF, etc.
|
|
Packing size
|
600*600*130 mm
|

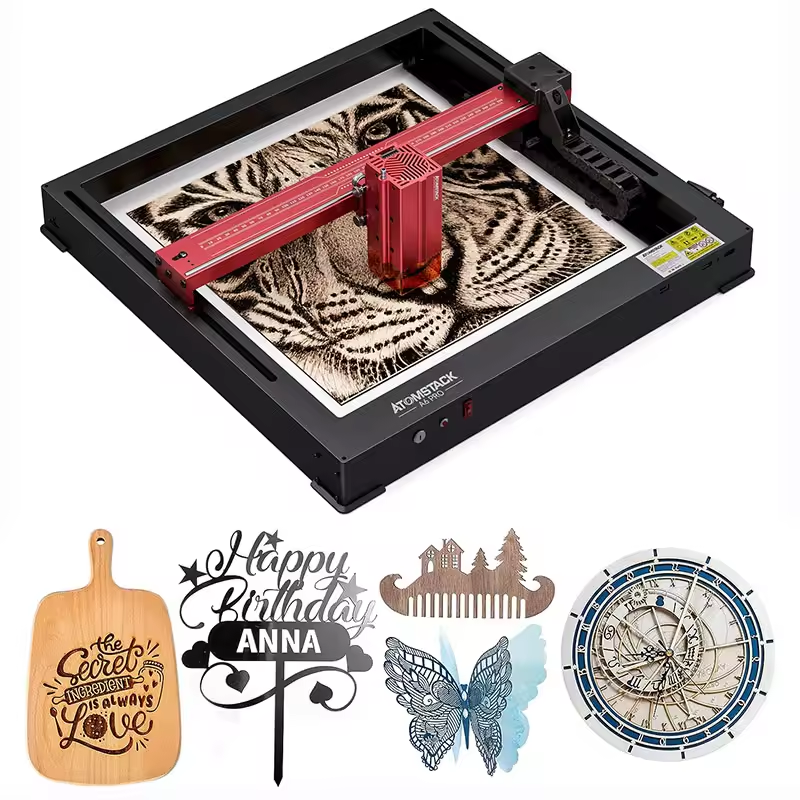

Product Description
1. Unprecedented Power: The world's first laser engraver boasting a 6W optical power.
2. Sturdy and No Setup Required: Crafted from anodized full aluminum alloy, this design ensures durability and engraving
precision. Plus, it's one-piece frame design, calibrated with precision before shipping, allowing you to use the perfect machine right out of the box.
3. Enhanced Motion Structure: The AtomStack A6/X6/S6 PRO sets a new standard with its superior structural stability, employing a linear guide for the X-axis. This ensures smooth operation at high speeds of up to 36000mm/min, yielding perfect engraving and cutting lines without any shaking.
4. Cross Laser Positioning: Newly added cross laser positioning feature for clear visibility of the laser’s location, perfect
alignment for engraving, and easy horizontal adjustment.
5. Advanced 32-bit Motherboard: Our latest AtomStack innovation features a 256-bit color scale, delivering unparalleled engraving clarity and contrast. Now, vibrant projects aren't just a dream!
6. ATOMSTACK Mobile App: Available on major Android and Apple stores, our custom-designed app provides a unique, seamless control experience. All in the palm of your hand!
7. Eye-Protection Redefined: Our panoramic filter glass cover shields eyes effectively, blocking 97% of UV light. No more
goggles;observe your engraving in real-time, safely.
8. State-of-the-Art Fixed-Focus Laser: No more pre-engraving adjustments. This laser's focal spot is notably smaller and more precise, marrying detailed engraving with powerful cutting.
9. Wide compatibility: the machine is compatible with various mature engraving software such as LaserGRBL LightBurn supports Win XP / Win 7 / Win 8 / XP / Win 10 and also supports for MAC system (LightBurn) engraving file format supports NC BMP JPG PNG DXF etc.
10. Detailed Axis Scale Lines: Precise scales on the X and Y axes enable swift measurements. With a generous 365*305mm engraving area, all your project needs are covered.
11. Superior Compression Technology: An ultra-fine laser focus of 0.05*0.05mm high-density laser black acrylic; it can directly engrave smooth stainless steel metal and ceramics.
12. Integrated Screw Rod: An all-in-one design for the stepper motor and screw rod ensures pinpoint laser accuracy and enhanced durability.
13. Convenient Laser Adjustment: Newly incorporated knob facilitates easy height adjustments.
14. Side-Over Warning: Built-in gyroscope detection, when the tilt angle of the machine is greater than 15°, an alarm will be triggered, making engraving safer.
15. Emergency Control: An incorporated stop button ensures immediate response during unexpected situations, enhancing safety.
16. Built-In Limiter: Included for added safety and precision.
17. Reset Capability: Built-in for user convenience.
Shipping Ways:
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the mosteconomical way to reduce shipping cost.
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the mosteconomical way to reduce shipping cost.
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand. - Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand. - Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
FAQ
Q:
Does this machine need to be assembled when I received it?
A:
This machine comes as a kit. You need to assemble it yourself.All tools and part are included in the kit.
Q: Are there software and instructions can I get it?
A: You can get the software,Kindly contact us.
Q: What's the laser's lifetime?
A: The laser modules have over 20000 hours lifetime.
Q: Can I regulate the laser power or the laser power is adjustable?
A: yes ,can adjustable
Q: What is the maximum thickness of acrylic it can cut?
A: The results we have tested so far: the thickest 12mm, black acrylic sheet, can be cut and penetrated
Q: New ATOMSTACK A6 Pro Laser in the description informs 5-6W, wouldn't it be 50W?
A: The total power of the machine is 50W, and the laser power is 6W.
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then install the software and the driver, power supply the machine, that's all.
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free express shipping, about 6-10 days to door.
Q: Are there software and instructions can I get it?
A: You can get the software,Kindly contact us.
Q: What's the laser's lifetime?
A: The laser modules have over 20000 hours lifetime.
Q: Can I regulate the laser power or the laser power is adjustable?
A: yes ,can adjustable
Q: What is the maximum thickness of acrylic it can cut?
A: The results we have tested so far: the thickest 12mm, black acrylic sheet, can be cut and penetrated
Q: New ATOMSTACK A6 Pro Laser in the description informs 5-6W, wouldn't it be 50W?
A: The total power of the machine is 50W, and the laser power is 6W.
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then install the software and the driver, power supply the machine, that's all.
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free express shipping, about 6-10 days to door.
