Armature making machine automatic production line

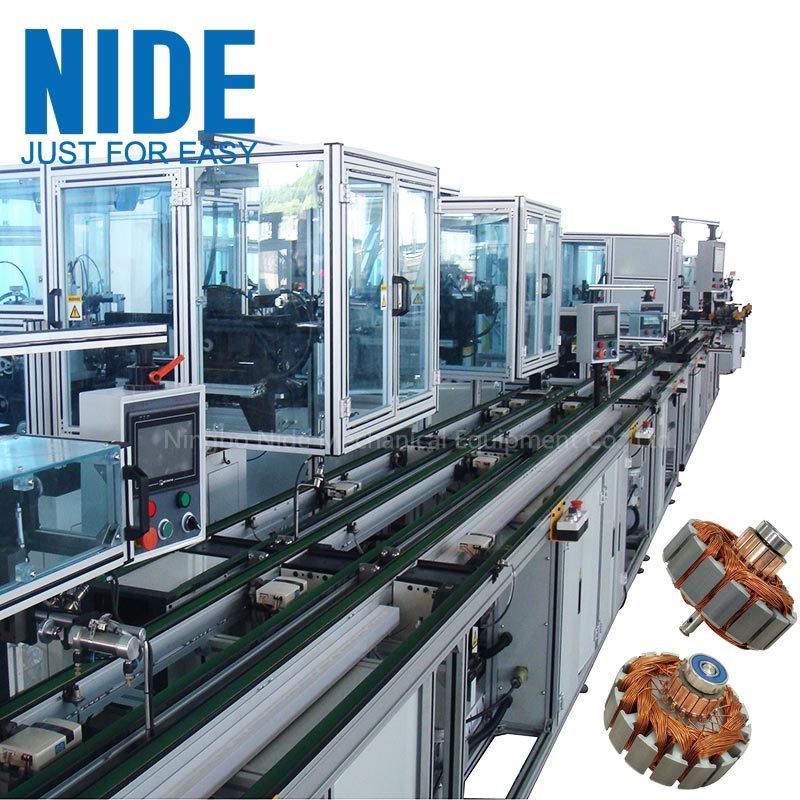

Armature automatic production line

Our Electric Motor Automatic Armature  Production Line can be produced in two different process according to client's requirements.

Process 1:
Shaft press---end field press---commutator press----armature insulation paper inserting---armature winding—commutator welding----wedge inserting— armature testing.

This armature production line including: shaft pressing machine, end plate pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine.

Process 2:

Armature insulation paper inserting---armature winding—commutator welding----wedge inserting—- armature testing.

There are three kinds of production line according to different conveyor: S1, S2 and S3.
S1: Support the armature on the armature shaft, this way maybe damage the shaft.
S2: Support the armature on the lamination, it can protect the shaft and has low noise.
S3: Put the armature on a conveyor plate, it can protect the shaft, lower noise and has nice appearance.

Motor armature rotor manufacturing assembly line including: shaft pressing machine, end cover pressing machine, commutator pressing machine, armature insulation paper inserting machine, armature winding machine, commutator hot stacking machine, armature wedge inserting machine and armature testing machine, ball bearing inserting machine, and worm shaft inserting, NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries. Among the customers, many of them are the world-renown companies.

Established in 2010, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
