- Product Details
- {{item.text}}
Quick Details
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, SDK, ADAS, 5G Sim Card
-
Voltage:
-
8-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CITOPS
-
Model Number:
-
M52HV.DGNE1-A
-
Product name:
-
4/8 Channels AI MDVR Solution
-
Video resolution:
-
1080P/720P/D1 Optional
-
Language:
-
English
-
Video format:
-
H.264/H.265
-
Video input:
-
AHD:8ch 1080/25fps
-
Storage:
-
2T+512GB Max (not Included)
-
Application:
-
Vehicle Fleet Management
-
Network:
-
CMS Platform Via 4G
-
Chipset:
-
Novatek 98323
-
Features:
-
4G/Wifi/GPS/G-sensor
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
120-180°
-
Resolution:
-
1080P 720P D1 Optional
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, SDK, ADAS, 5G Sim Card
-
Voltage:
-
8-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CITOPS
-
Model Number:
-
M52HV.DGNE1-A
-
Product name:
-
4/8 Channels AI MDVR Solution
-
Video resolution:
-
1080P/720P/D1 Optional
-
Language:
-
English
-
Video format:
-
H.264/H.265
-
Video input:
-
AHD:8ch 1080/25fps
-
Storage:
-
2T+512GB Max (not Included)
-
Application:
-
Vehicle Fleet Management
-
Network:
-
CMS Platform Via 4G
-
Chipset:
-
Novatek 98323
-
Features:
-
4G/Wifi/GPS/G-sensor
NOTE:
Order only include a 8ch AI HDD Mdvr Host with 4g+gps
It n
eeds to be used with camera and other accessories.

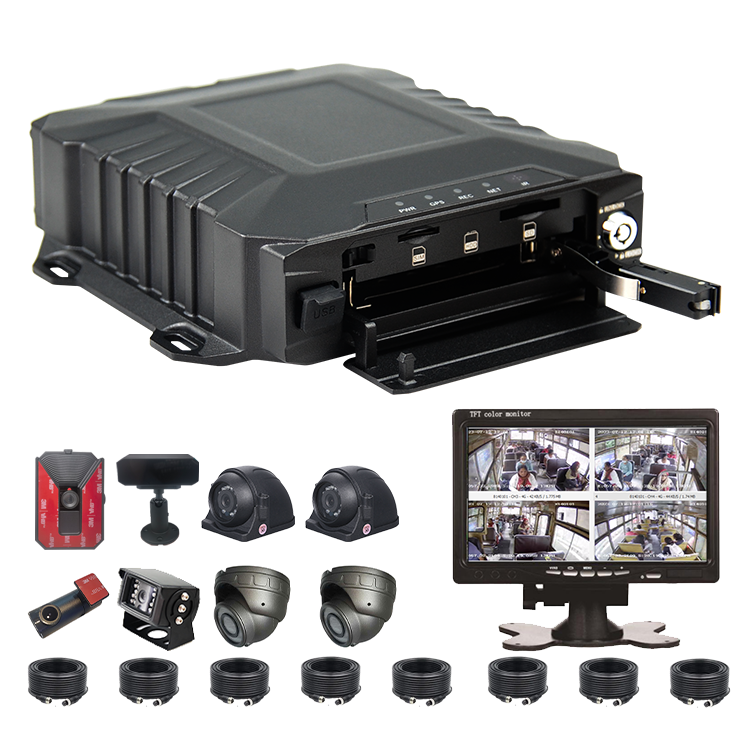

Products Description
Dsm Camera 4g Gps Wifi Truck Bus Vehicle Support 1tb Hdd Mdvr Mobile Gps Mdvr Tracking Taxi Truck Car Dvr Mdvr Bus 8 Channel
a
dopts a self-pop-up structure design of hard disk, high-speed processor
NT98323
and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/ decompression, 4G network, GPS/BD positioning and other technologies.
* The interface can operate reliably and stably in complex environments
* Video encoding H.265/H.264
* Support 4G WIFI and GPS functional modules,Optional
* Supports Max 2Tb SSD/HDD+512G SD card For Storage
* The interface can operate reliably and stably in complex environments
* Video encoding H.265/H.264
* Support 4G WIFI and GPS functional modules,Optional
* Supports Max 2Tb SSD/HDD+512G SD card For Storage
*
Rich peripheral interfaces
* Support external UPS battery life
* High scalability
* High scalability
|
project
|
|
parameter specification
|
|
|
Audio and Video Inputs
|
video input
|
AHD：8ch 1080/25fps
IPC：Scalable 1-8ch |
|
|
|
audio input
|
4ch audio iuput
|
|
|
Audio and Video outputs
|
video output
|
Default 1-way CVBS output (VGA output optional)
|
|
|
|
speech output
|
1ch audio output
|
|
|
Audio and video parameter coding
|
video coding
|
H.264 Main Profile/H.265
|
|
|
|
· Resolution
|
1080P/720P/D1 optional
|
|
|
|
audio coding
|
Default G.726,G.711A optional
|
|
|
storage space
|
HDD
|
1 2.5-inch optional:
SSD/HDD hard disk
|
|
|
|
SD
|
Support 1
SD card
|
|
|
wireless network
|
4G
|
Supports 1 SIM card,
optional: all major communication modules in the world
|
|
|
|
WIFI
|
2.4/5.8G optional
|
|
|
locate mode
|
BD/GPS
|
Support for mixed positioning, speed detection, time synchronization
|
|
|
interface
|
USB
|
USB2.0 interface, support export data, external engineering treasure
|
|
|
|
serial port
|
Support
2 RS232, 1 RS485
, can be connected with external sensor
|
|
|
|
I/O
|
4 level inputs, 2 analog inputs, 2 alarm outputs
|
|
|
|
network interface
|
Support external IPC
, support hybrid NVR function
|
|
|
|
· Intercom
|
1 special intercom handheld mark interface
|
|
|
Physical Specifications
|
size
|
176.9mm（L）*186.8mm（W）*54mm（H）
|
|
|
|
weight
|
NW：1.4kg
GW：2kg（M51H-DGNE1-L as a standard） |
|
|
work environment
|
operating temperature
|
-20〜+70℃
|
|
|
|
operating humidity
|
· 8%〜90%（No condensation）
|
|
|
Other
|
operator schema
|
remote control、APP、WEB
|
|
|
|
· Gravity sensor
|
Built-in G-Sensor
|
|
|
|
Configurable AI algorithms
|
Driving Assistance,Face recognition,People Counting
|
|
The product supports 4G+GPS, it is recommended to contact the customer for more information before placing an order.
