Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHENGYANGD
-
Capacity:
-
14T
-
Brake:
-
420mmx200mm
-
Axle Beam:
-
150mmx150mm
-
Total Length:
-
Approx 2172 mm
-
Recommended Wheel:
-
8.50V-20
-
Product Name:
-
accessories 13/18/20/28Ton rear axle mobile home axles for sale
Quick Details
-
OE NO.:
-
OEM Service Provided
-
Max Payload:
-
16T
-
Size:
-
Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHENGYANGD
-
Capacity:
-
14T
-
Brake:
-
420mmx200mm
-
Axle Beam:
-
150mmx150mm
-
Total Length:
-
Approx 2172 mm
-
Recommended Wheel:
-
8.50V-20
-
Product Name:
-
accessories 13/18/20/28Ton rear axle mobile home axles for sale
Product Description
Specification
|
Model
|
Capacity(T)
|
Brake (mm)
|
Distance of brake chamber L4
|
Axle Tube(mm)
|
Center distance of spring seat L3
|
|
ZY-A1069
|
12
|
420x180
|
420
|
φ150
|
≥980
|
|
ZY-A1070
|
13
|
420x200
|
360
|
φ150
|
≥900
|
|
ZY-A1071
|
14
|
420x200
|
356
|
φ150
|
≥900
|
|
ZY-A1072
|
15
|
420x200
|
360
|
φ150
|
≥900
|
|
ZY-A1073
|
18
|
420x220
|
380
|
φ150
|
≥900
|
|
Stud
|
P.C.D D1
|
Seam allowance D2
|
Track L2(mm)
|
Bearing Inner/Outer
|
Total Length L1(mm)
|
Weight(KG)
|
Recommended Wheel
|
|
10-M22x1.5
|
335
|
280.8
|
1840
|
33118 33213
|
≈2158
|
375
|
7.5V-20
|
|
10-M22x1.5
|
335
|
280.8
|
1840
|
33118 33213
|
≈2158
|
390
|
7.5V-20
|
|
10-M22x1.5
|
335
|
280.8
|
1840
|
33219 33215
|
≈2172
|
420
|
8.0V-20
|
|
10-M22x1.5
|
335
|
280.8
|
1840
|
32222 32314
|
≈2245
|
440
|
8.5V-20
|
|
10-M22x1.5
|
335
|
280.8
|
1850
|
32222 32314
|
≈2245
|
445
|
8.5V-20
|

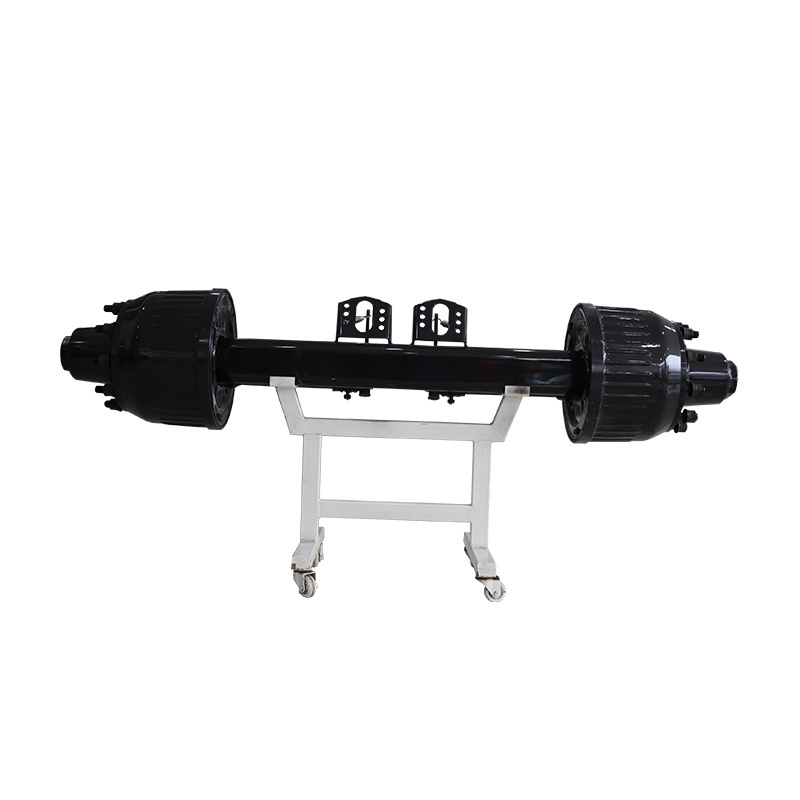

Product show
1. Special heat treatment, low alloy steel axle beam, good comprehensive performance, strong bearing capacity, low dead weight;
2. High quality alloy solid spindle provides superior fatigue resistance through integral heat treatment;
3. Camshaft adopts special sealing processing to ensure that grease will not enter the brake drum, which is more safe;
4. New tight fit wheel hubcap, O-ring seal, good sealing performance;
5. Extend the free maintenance time
