Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hongbaoyuan
-
Voltage:
-
local voltage
-
Dimension(L*W*H):
-
3600(L)*1850(W)*2200(H)mm
-
Weight (KG):
-
4800 kg
-
Model:
-
QT5-25D
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Weight:
-
4800kg
-
Power:
-
21kw
-
Pallet size:
-
1050*550*20mm
-
Forming cycle:
-
25~30s
-
Daily Capacity:
-
8000-20000blocks/day
-
Vibrating Force:
-
50KN
-
Worker:
-
3-4 Person
-
Area:
-
2000m2
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 8000-20000blocks/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hongbaoyuan
-
Voltage:
-
local voltage
-
Dimension(L*W*H):
-
3600(L)*1850(W)*2200(H)mm
-
Weight (KG):
-
4800 kg
-
Model:
-
QT5-25D
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Weight:
-
4800kg
-
Power:
-
21kw
-
Pallet size:
-
1050*550*20mm
-
Forming cycle:
-
25~30s
-
Daily Capacity:
-
8000-20000blocks/day
-
Vibrating Force:
-
50KN
-
Worker:
-
3-4 Person
-
Area:
-
2000m2

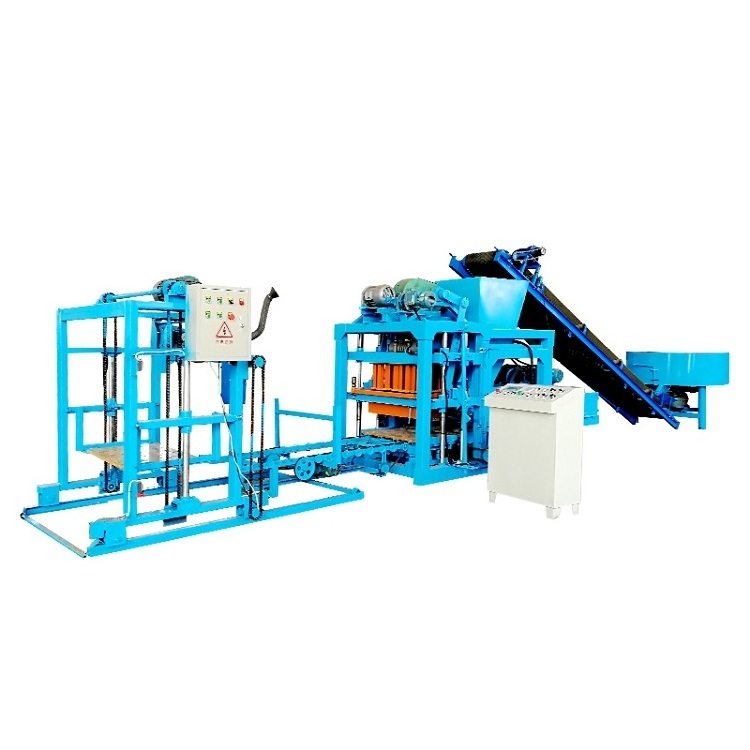

QTJ5-25D Hebel Big Eps Concrete Block Making Machine
Whatsapp/ Mobile/Wechat : +8618353988569
Advantage:
- full automatic and output is big. the machine equip with PLC ,
- easy to operate.the control box is very easy to operate.
- suitable make hollow solid block ,pavement block,curbstone .
- material can be easy find all over the world .
material:cement ,concrete ,sand ,flyash ,
Ratio of raw material :cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
hollow block weight : (400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
QTJ5-25D Block Making Machine Main Parameter
|
Model |
QTJ5-25D |
Power |
21kw |
|
Weight |
4800kg |
Overall size |
3600(L)*1850(W)*2200(H)mm |
|
Forming cycle |
20-25S |
Pallet size |
1050*550/450*20mm |
QTJ5-25D Concrete Block Production Line Production Capacity
|
Brick size |
Pcs/mould |
Pcs/hour |
Pcs/8hour |
|
390*150*190mm |
6 |
864 | 7000 |
|
390*190*190mm |
5 |
720 |
5760 |
|
390*100*190mm |
9 |
1300 | 10400 |
QTJ5-25D Concrete Block Production Line Base Installation
|
Area |
2000m2 |
Workshop |
50m2 |
|
Raw Material Work Shop |
300m2 |
Office |
30m2 |
|
Staff And Workers |
3-4 person |
Power Distribution |
30kw |
|
Water Consumption |
4T per day |
Pallets need |
1200pcs |
JQ500Mixer
|
F eeding Capacity |
600L |
Discharging Capacity |
500L |
|
Deepth |
0.5m |
Motor Power |
7.5kw |
|
Overall Size |
1500L*1500W*1300Hmm |
Diameter |
1500mm |
|
Reducer |
350 |
Weight |
800kg |
Pre-sale Service:
Analyze the customer's need and market prospect;
Provide perfect solution to set up a factory.
In-Sale Service:
Provide service of installation in customers’ country;
Provide training for operator and maintenance person.
After-sale Service:
Provide free consultation;
Supply parts service.
