Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5800*1850*2750
-
Machine Weight:
-
9000 kg
-
Bucket capacity:
-
1 cbm
-
Marketing Type:
-
Other
-
Product name:
-
Backhoe loader
-
Key words:
-
backhoe excavator loader
-
Drive type:
-
4*4 wheel
-
Engine type:
-
yanmer kubota epa EURO5
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
2 years
-
Other name:
-
retroexcavadora
-
Brand:
-
SOAO
-
Application:
-
Farm Machinery,construction
Quick Details
-
Engine Brand:
-
CHANGCHAI/YUNNEI
-
Power:
-
75 KW, 37 KW, 55 kw, 92 KW, Other
-
Brand Name:
-
SOAO
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5800*1850*2750
-
Machine Weight:
-
9000 kg
-
Bucket capacity:
-
1 cbm
-
Marketing Type:
-
Other
-
Product name:
-
Backhoe loader
-
Key words:
-
backhoe excavator loader
-
Drive type:
-
4*4 wheel
-
Engine type:
-
yanmer kubota epa EURO5
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
2 years
-
Other name:
-
retroexcavadora
-
Brand:
-
SOAO
-
Application:
-
Farm Machinery,construction

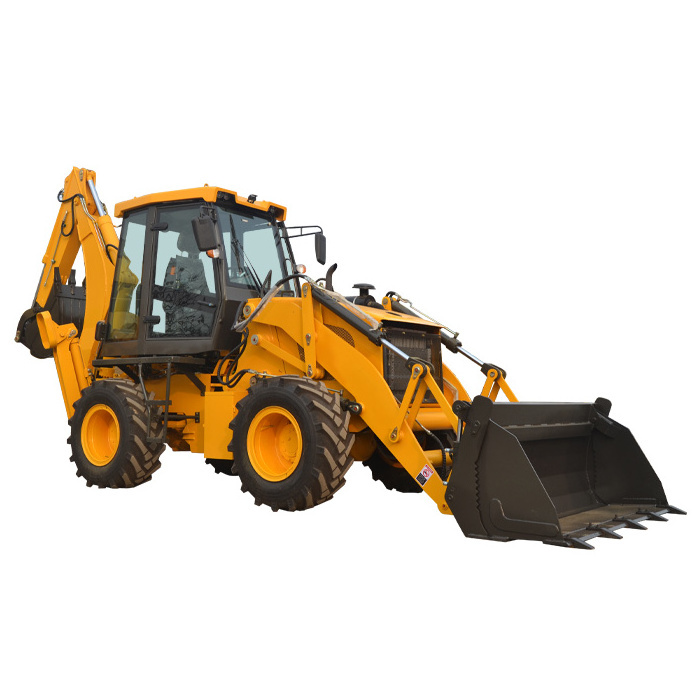

SOAO Earth-moving Machinery Mini Tractor Towable Backhoe Loader
World's advanced technology, Top brand engines, Unbeatable prices！！！
The newest technology mining backhoe loader, the king of work efficiency. It can install / Chang.chai / Kubota 5 / American EPA certification engine.
SELLING
1. Production process visualization
2. Packaging process visualization
3. Transportation process visualization
|
WZ40-30C Backhoe Loader
|
|
|
|
Operating Weight
|
8,000 kg
|
|
|
L*W*H
|
6,800*2,390*2,890 mm
|
|
|
Wheel base
|
2,250 mm
|
|
|
Min. Ground Clearance
|
300 mm
|
|
|
Hydraulic System Pressure
|
22 Mpa
|
|
|
Max. Traction
|
39 kN
|
|
|
Loader Performance
|
|
|
|
Rated Load
|
3,000 kg
|
|
|
Loader Bucket Capacity
|
1.5 m³
|
|
|
Loader Bucket Width
|
2,300 mm
|
|
|
Loader Bucket Dumping Height
|
2,800 mm
|
|
|
Loader Bucket Dumping Distance
|
1,062 mm
|
|
|
Loader Bucket Digging Depth
|
52 mm
|
|
|
Loader Bucket Breakout Force
|
38 kN
|
|
|
Loader Bucket Lifting Time
|
5.4S
|
|
|
Loader Bucket Lowering Time
|
3.1S
|
|
|
Loader Bucket Discharge Time
|
2.0S
|
|
|
Backhoe Performance
|
|
|
|
Backhoe Bucket Capacity
|
0.35 m³
|
|
|
Backhoe Bucket Width
|
700 mm
|
|
|
Max. Digging Depth
|
4,100 mm
|
|
|
Backhoe Digging Force
|
46.5 kN
|
|
|
Backhoe Boom Digging Force
|
31 KN
|
|
|
Backhoe Bucket Swing Angle
|
190°
|
|
|
Engine
|
|
|
|
Brand & Model
|
YUCHAI 4105
|
|
|
Type
|
In Line, Direct injection, 4-Stroke, Water-cooled, Diesel
|
|
|
Rated Power
|
85 kw, Turbocharger
|
|
|
Steering System
|
|
|
|
Steering Angle
|
±36°
|
|
|
Min. Turning Radius
|
6,581 mm
|
|
|
System Pressure
|
12 Mpa
|
|
|
Axle
|
|
|
|
Brand
|
FEICHENG YUNYU
|
|
|
Main Transmission Type
|
Double Reduction
|
|
|
Final Reducer
|
Single Stage Final Reducer
|
|
|
Rated Loader
|
4/18.5t
|
|
|
Torque Converter
|
|
|
|
Model
|
YJ280
|
|
|
Type
|
Single-stage, Single-phase Three Element
|
|
|
Cooling Type
|
Oil-cooling Pressure Circulation
|
|
|
Gearbox
|
|
|
|
Type
|
Fixed Shaft Power Transmission
|
|
|
Gears
|
F2 + R2
|
|
|
Max.Speed
|
30 km/h
|
|
|
Tire
|
|
|
|
Model
|
Tubeless, F: 14-17.5, R: 19.5L-24
|
|
|
Tire Pressure
|
0.22 Mpa
|
|
|
Brake System
|
|
|
|
Service Brake
|
Air Over Oil Caliper Brake
|
|
|
|
External Type
|
|
|
|
Self-adjustment
|
|
|
|
Self-balancing
|
|
|
Emergency Brake
|
Operation Power Implementing brake
|
|
|
|
Manual Operation Power Terminating Brake
|
|
|
Standard Configuration
|
Loader Bucket, Backhoe Bucket, Heater, Air Fan, Deluxe Adjustable Rotating Seat，Adjustable Instrument Panel, Hydraulic Joystick,
Special 280 Gearbox, H-shaped Hydraulic Support Leg |
|
|
|
|
|
|
|
|
|
|
|
|
|
1.24Hours after-sales service by email or phone.
2. 100% Response rate.
3. Our customer-oriented sales and technical team are always at your service
4. OEM Service available
5. Warranty: 24 months warranty , beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
|
FAQ
|
|
1.Are you a manufacturer or Trader ?
|
|
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
|
|
2.What is your payment term ?
|
|
We accept T/T, L/C at sight, Western Union, Paypal etc.
|
|
3.How long is the validity of quotation ?
|
|
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
|
|
4.How to install the equipment after purchasing ?
|
|
We will provide professional installation video to illustrate and manual.
|
|
5.Do you provide OEM/ODM Service ?
|
|
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
|
