Quick Details
-
Brand Name:
-
Ro-Chain
-
Model Number:
-
RC-DDX01(50KW)
-
Product name:
-
sensor x ray
-
Application:
-
xray machine medical for humans
-
Function:
-
Medical Radiography
-
Detector Type:
-
Flat Panel Detector
-
Vision Size:
-
17*17"/14*17"
-
SpatialResolution:
-
3.6 lp/mm
-
Certificate:
-
CE Certificate
-
Pixel Size:
-
3072*3072
-
Power supply:
-
220V 50HZ/ 110V 60HZ
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ro-Chain
-
Model Number:
-
RC-DDX01(50KW)
-
Product name:
-
sensor x ray
-
Application:
-
xray machine medical for humans
-
Function:
-
Medical Radiography
-
Detector Type:
-
Flat Panel Detector
-
Vision Size:
-
17*17"/14*17"
-
SpatialResolution:
-
3.6 lp/mm
-
Certificate:
-
CE Certificate
-
Pixel Size:
-
3072*3072
-
Power supply:
-
220V 50HZ/ 110V 60HZ
RO-CHAIN@Imaging World: DR X-ray machine, Digital Mammography System, Dynamic Digital Radiography/Fluoroscopy System, Angiography, CT Scanner, C arm, Ultrasound. Highly welcome you choose us to work on this products.
Product details
50KW 380V 10-630mA with flat panel detector digital medical floor mounted x ray machine system
Model:RC-DDX01(50KW)
Product Introduction for
50KW 380V 10-630mA with flat panel detector digital medical floor mounted x ray machine system
:

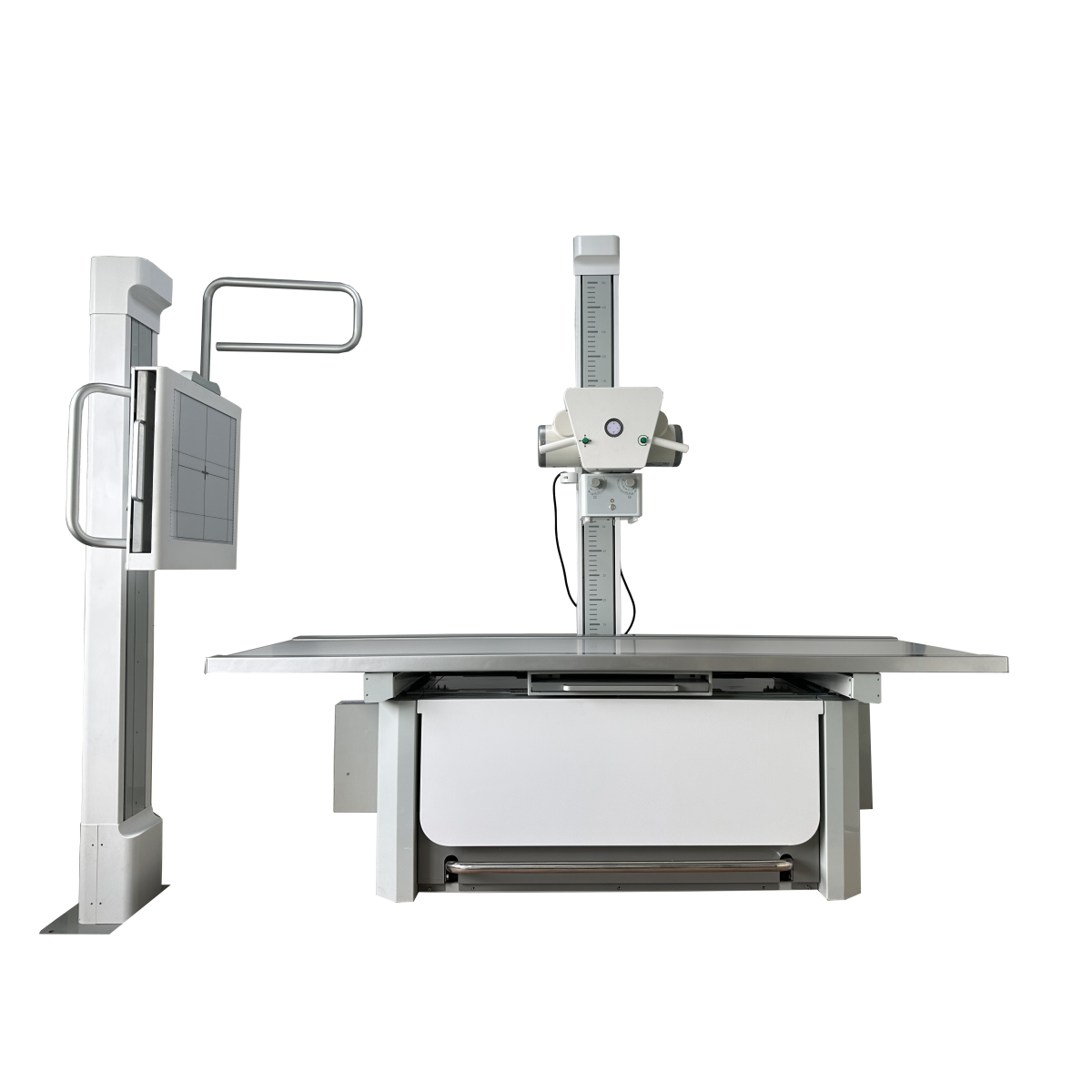

Floor-mounted Digital -ray Radiography System adopts floor-mounted table and wall stands. Its smart design, flexiblemovement, easy operation and high working efficiency providemore imaging positions. It is a high-end digital radiographydevice with wide range of applications, which could performroutine imaging of human head, chest, abdomen, lumbarvertebra and limbs with PA, LAT and clinostatism in hospitals atall levels.
|
Product Feature for
50KW 380V 10-630mA with flat panel detector digital medical floor mounted x ray machine system
:
|
|
|
|
|
||||
|
1
|
Sophisticated technology, high rotating speed good heat dissipation, high heat capacitysuitable for long-time clinical examinationlong product life.
|
|
|
|
||||
|
2
|
High frequency generator with high X-rayinverse frequency, large power and good X-ray quality
|
|
|
|
||||
|
3
|
Intelligence high voltage control system withvarious APR
|
|
|
|
||||
|
4
|
New generation a-Si Csl flat panel detectorwith high conversion rate achieves digitalimage acquisition with low dose
|
|
|
|
||||
|
5
|
High standard digital image processingsystem provides more post-processing andmeets clinical needs
|
|
|
|
||||
Tube Stand
Saving the cost and installation time designed byfreestanding (Floormounted). Accommodatesfacilities where can't support a ceilingmountedsystem, Wide range of travels covering lateral andother difficultpositioning.Electromagnetic lockssecure at any position.
Tube Head
Specially designed tube head arm holder makes smoothvertical movement and compensates mechanical vibration.
|
Product Specifications of
50KW 380V 10-630mA with flat panel detector digital medical floor mounted x ray machine system
:
|
|
|
|
|
||||
|
Model
|
RC-DDX01Series
|
|
|
|
||||
|
Power Output
|
32kw
|
50kw
|
65kw
|
80kw
|
||||
|
Current
|
10-400mA
|
10-630mA
|
10-800mA
|
10-1000mA
|
||||
|
Voltage
|
40kV-125kV
|
40kV-150kV
|
40kV-150kV
|
40kV-150kV
|
||||
|
mAs
|
0.1-400mAs
|
0.1-630mAs
|
0.1-800mAs
|
0.1-1000mAs
|
||||
|
Exposure time
|
1-6300ms
|
1-6300ms
|
1-6300ms
|
1-6300ms
|
||||
|
Focus Size
|
1.0/2.0
|
0.6/1.2
|
0.6/1.2
|
0.6/1.2
|
||||
|
Detector Type
|
Flat Panel Detector
|
|
|
|
||||
|
Vision Size
|
17*17”/14*17"
|
|
|
|
||||
|
A/D Conversion
|
16 bits
|
|
|
|
||||
|
SpatialResolution
|
3.6 lp/mm
|
|
|
|
||||
|
Pixel Size
|
3072X3072
|
|
|
|
||||
