Quick Details
-
Dimension(L*W*H):
-
2250*580*730mm
-
Weight:
-
304
-
Key Selling Points:
-
firewood equipment wood processor elevator
-
Power:
-
6.5hp petrol engine
-
Keywords:
-
wooden conveyor
-
Package:
-
Wooden Case
-
Certification:
-
CE
Quick Details
-
Use:
-
loading wooden
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOLINK
-
Dimension(L*W*H):
-
2250*580*730mm
-
Weight:
-
304
-
Key Selling Points:
-
firewood equipment wood processor elevator
-
Power:
-
6.5hp petrol engine
-
Keywords:
-
wooden conveyor
-
Package:
-
Wooden Case
-
Certification:
-
CE

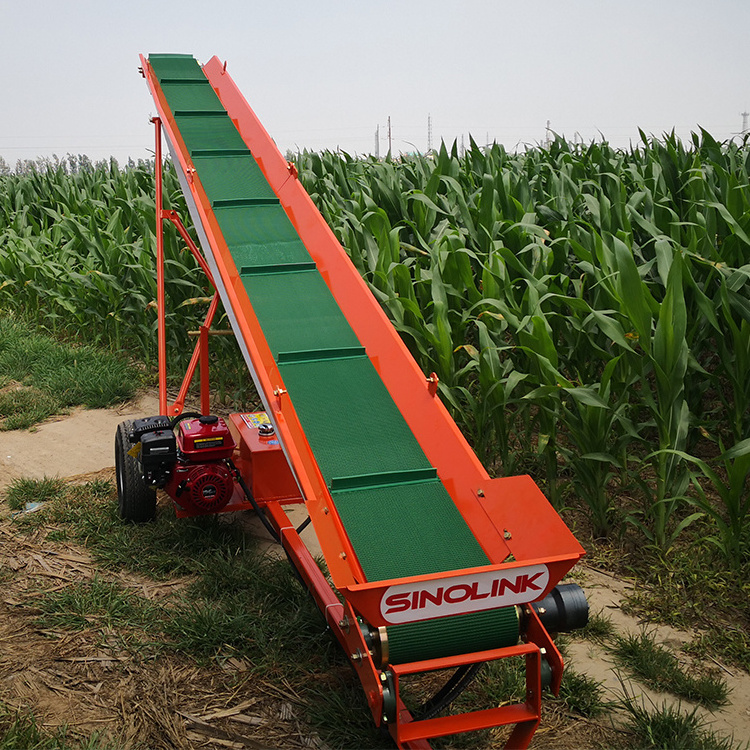

FC500 firewood conveyor Description:
Newly Upgraded Firewood Conveyor FC500 with 6.5hp Lifan or Loncin recoil start engine!Make loading your firewood quick and easy with this FC500 foot firewood conveyor! This FC500 foot conveyor is powered by a 6.5 Hp gasoline engine to quickly take the wood you've split up, over into your truck. No more picking up piece after piece of firewood and throwing it into the truck to take back to the wood pile.
Product Features:
Hydraulic driven belt for smooth operation.
Adjustable height at the top end for different applications.
Towable; can be towed using the 2" hitch provided.
Sturdy construction to move your firewood.
One year manufacturer's warranty!
Loncin 6.5hp recoil start engine
Four-stroke with recoil start
4.1KW and 3600rpm
196cc and fuel tank 3.6L
304 model hydraulic pump
Displacement is 4 ml/r
Pressure is 10 Mpa
Max speed is 2000 r/min
500mm width belt
Width is 500mm
Thickness is 5mm
Length is 9610mm
Height adjust manual winch
Belt winch and length is 3m
Extended handle with fixed plate
Forward and reverse
Nylon high quality roller
Avoid scratching the paint Winch belt extends life Smooth movement in the track
Conveyor safety lock design
Lock nylon pulley shaft
Relieve the force on the winch
Semi-automatic locking
convenient and quick
Front safety cover plates
Prevent materials from falling out Prevent the roller from hurting Can be adjust according material Strong assembly by bolts
|
Model
|
FC300
|
FC500
|
|
Engine brand
|
Lifan/Loncin Petrol 4 Stroke
|
Lifan/Loncin Petrol 4 Stroke
|
|
Horse power
|
6.5HP
|
6.5HP
|
|
Engine start
|
Recoil
|
Recoil
|
|
Belt material
|
PVC
|
PVC
|
|
Max.Height
|
3M
|
3M
|
|
Belt Width/thickness
|
300mm/5mm
|
500mm/5mm
|
|
Belt Travel Speed
|
0.7m/s
|
0.7m/s
|
|
Hydraulic Oil Tank Capacity
|
12L
|
12L
|
|
Hydraulic driven Pump
|
5.3 Gallon Per Minute
|
5.3 Gallon Per Minute
|
|
Tire
|
5.7-8
|
5.7-8
|
|
Height adjust
|
Use Manual winch adjust.
|
Use Manual winch adjust.
|
|
Net Weight
|
285kg
|
375kg
|
|
Package Size
|
2250*800*740mm
|
2250*600*740mm
|
|
Color
|
According to requirement
|
According to requirement
|
|
MOQ
|
3Unit
|
3Unit
|
|
Container
loading capacity
|
27Unit/20ft
|
21Unit/20ft
|
|
|
54Unit/20ft
|
42Unit/40ft
|
|
Transport length
|
4.7M
|
4.7M
|
|
Package
|
Plywood case
|
Plywood case
|
|
Axle distance
|
1100mm
|
1100mm
|
