Tungsten electrode gold containing 1.5%La2O3 Price of tungsten electrode prone to arcing Popular 175mm 10 tungsten electrodes

Tungsten electrode gold containing 1.5%La2O3 Price of tungsten electrode prone to arcing Popular 175mm 10 tungsten electrodes

FOB Reference Price: Get Latest Price

≥5 Pieces

US $4.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: Tungsten electrode WLa15 2.4*175 1.5% Lanthanated Tungsten Gold Head

Shape:: Tig Welding

Size:: 2.4*175

Material:: 1.5% Lanthanated

Color:: Gold

Usage:: Welding

Application:: Semi, Industry, Aerospace

MOQ:: 20 Pcs

Welding Metal:: Copper alloy, nickel alloy, titanium alloys, and stainless steel

MSDS:: Yes

Quick Details

Place of Origin:: Henan, China

Brand Name:: YOLO

Model Number:: Tungsten electrode WLa15

Product Name:: Tungsten electrode WLa15 2.4*175 1.5% Lanthanated Tungsten Gold Head

Shape:: Tig Welding

Size:: 2.4*175

Material:: 1.5% Lanthanated

Color:: Gold

Usage:: Welding

Application:: Semi, Industry, Aerospace

MOQ:: 20 Pcs

Welding Metal:: Copper alloy, nickel alloy, titanium alloys, and stainless steel

MSDS:: Yes

PRODUCT SPECIFICATIONS

Item	Data
Product name	Tungsten electrode WLa15 2.4*175 1.5% Lanthanated Tungsten Gold Head
Color	Gold
Application	Tig Welding
Standard	ANSI AWS
Wire Diameter	2.4mm
Welding Materials	AC & DC applications and for welding titanium alloys, copper alloys, magnesium alloys, aluminum alloys, nickel alloys, non-corrosive steels, and low-alloyed steels.
Materials	1.5% Lanthanated Tungsten
Package	10pcs in one Strong plastic boxes

ELECTRODES INTRODUCTION

Our tungsten electrodes are popular for their reliable arc initiation, high arc quality and low burnout, while meeting ANSI and AWS standards.

2% Thorium (Red) Electrode

Our second most popular electrode on Alibaba, the 2% thorium electrode is known for its reliable arc initiation, low burnout and durability, while meeting ANSI and AWS standards.

Thorium electrodes perform well in DC applications and are ideal for welding copper alloys, nickel alloys, titanium alloys and stainless steel.

Designed to exact specifications, you
can rely on these durable electrodes to perform time and time again in your most difficult welding applications.

Is your current tungsten electrode not durable when soldering?

When others use one electrode to complete the same material, do you use 2-3 pcs?

For more efficiency, you need an electrode with a uniform structure to prolong the service life of your electrode.

In China, only less than 1% of manufacturers start with raw materials. We are one of these few manufacturers.

We start from producing tungsten powder. Controlling the uniformity of the mixing powder, the temperature, and every other process.

Almost all tungsten factories start with purchased semi-finished products.
But we start with raw materials.

As you can see, Yolo will save you a lot of purchasing and labor costs.

Yolo: Uniform particle size

Title goes here.

About YOLO

Yolo metal materials technology., Ltd, founded in 2000, is a manufacturer who engaged in the raw materials and precision parts
production of tungsten and molybdenum. And now, Yolo exported to many countries over many years.

We have a group of professional processing technicians to supply customers with tungsten and molybdenum parts solutions.
Especially for some high-tech requirements, high standards, difficult to machine, such as thin probe, thin tungsten tube, NDB
fusion technology resistance welding electrode.

ELECTRODES PARAMETERS

Diameter			Dia Tolerance	Length	Length Tolerance	Inquiry
mm	inch	mm	mm	mm
1.00	0.4	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
1.6	1/16	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
2.0	5/64	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
2.4	3/32	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
3.2	1/8	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
4.0	5/32	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
4.8	3/16	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
6.4	1/4	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
8.0	5/16	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
10.0	25/64	(+/-)0.05	50, 75, 150, 175, 178	(+/-)0.10	Get a Quote
Customized specs are also available, welcome your inquiry!

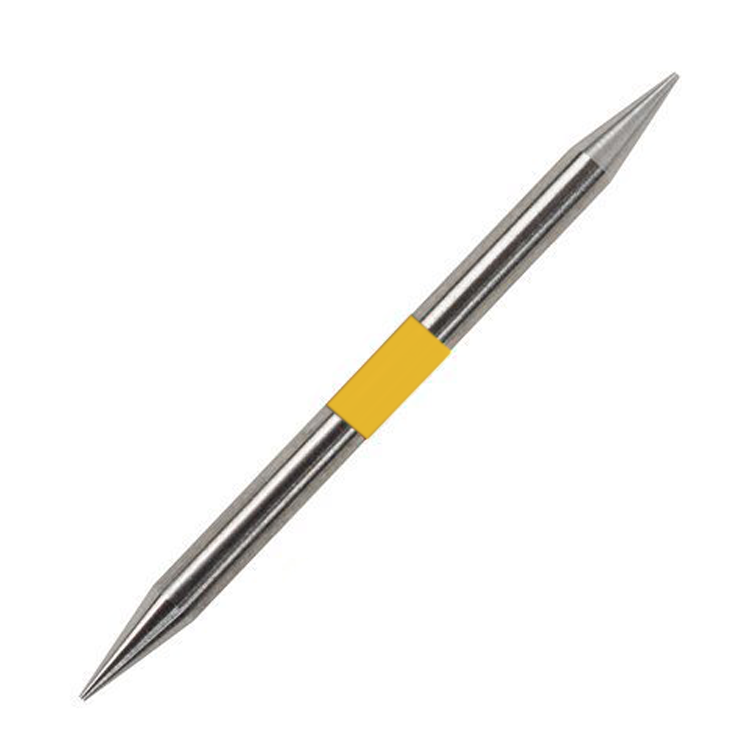

You can buy large quantity pre-sharpened tungsten electrode from YOLO at the best factory direct price, whether it is single or both ends pre-sharpened taper.

Whether you want pre-ground tungsten electrodes in regular size or custom size, Yolo is able to produce large quantities

With Yolo’s state-of-the-art drawing and sharpening equipment, especially for ultra-fine electrodes of 1/4″ diameter, Yolo is able to accurately guarantee the accuracy of the taper and surface finish.

3 Head Types Selection of Pre Sharpened Tungsten Tig Electrodes

* Arc head
* Flat head
* Pointed head

Pre-Ground Electrode Diameter	Pre-Ground Electrode Length	Pre-Ground Electrode Angle
Customized are available	Customized are available	Customized are available
0.04"	1.375"	15 degree
1/16"	1.5"	20 degree
3/32“	2.25"	25 degree
1/8“	2.6"	30 degree
5/32“	3"
	3.5"
