Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEB Tools
-
Model Number:
-
SEB-CSB-001
-
outer size:
-
110-600mm
-
hole size:
-
20, 22.23, 25, 30mm
-
Blade Material:
-
ALLOY STEEL
-
Material of Body:
-
50# carbon steel or 65Mn or 75Cr1
-
Teeth:
-
24, 30, 36, 40, 48, 60, 100, 120T
-
Material of Teeth:
-
K10 or K01 grade Tungsten Carbide
-
Advantage:
-
Long-life Tungsten Carbide-tip
-
Service:
-
ODM OEM
-
Feature:
-
sharper, smooth
-
Main market:
-
America, Europe, Australia, Africa, South Asia etc.
Quick Details
-
Blade Length:
-
6in, 6 1/2in, 10in
-
Finishing:
-
printed
-
Size:
-
4''-20''
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SEB Tools
-
Model Number:
-
SEB-CSB-001
-
outer size:
-
110-600mm
-
hole size:
-
20, 22.23, 25, 30mm
-
Blade Material:
-
ALLOY STEEL
-
Material of Body:
-
50# carbon steel or 65Mn or 75Cr1
-
Teeth:
-
24, 30, 36, 40, 48, 60, 100, 120T
-
Material of Teeth:
-
K10 or K01 grade Tungsten Carbide
-
Advantage:
-
Long-life Tungsten Carbide-tip
-
Service:
-
ODM OEM
-
Feature:
-
sharper, smooth
-
Main market:
-
America, Europe, Australia, Africa, South Asia etc.

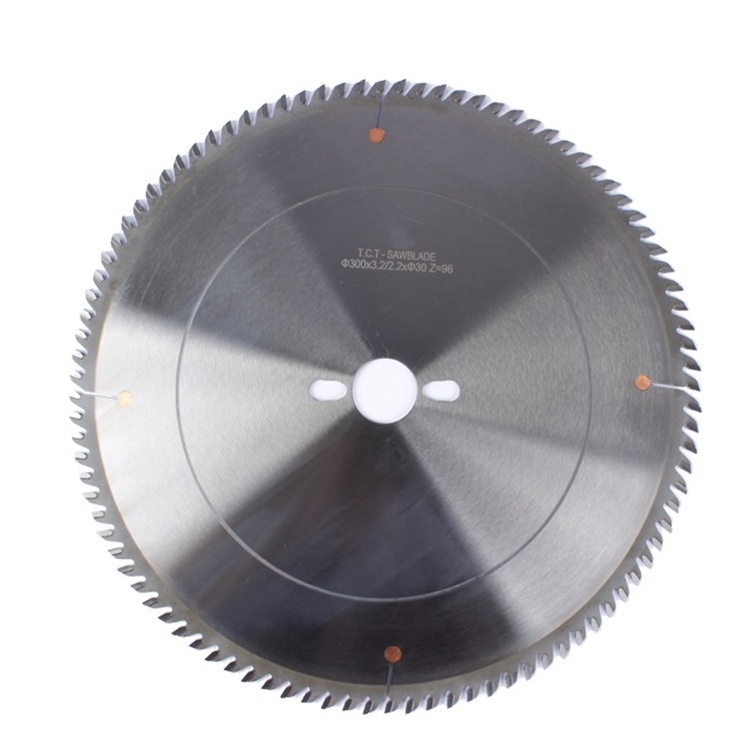

Sharper TCT Circular Saw Disc for cutting aluminum
TCT saw blade is a kind of cutting tool, widely used in cutting wood, steel, or other non-ferrous metals, such as copper, brass and magnesium .
Parameter : outer dia x inner dia x segement height x segement thickness
Size: 4''-20''diameter
Advantage: 1. fast, free, smooth cutting
2. Reduce cutting friction, improve slab flatness, save energy.
Saw blade speed:
When sawing granite, saw blades linear velocity can be in 25 m ~ 35 m/s within the scope of the selected.
| Specification | Body material | Body thickness | Body hardness | Kerf |
| 110mm x 24T | 50# | 1.2 | 40-44 | 2.0 |
| 110mm x 30T | 50# | 1.2 | 40-44 | 2.0 |
| 110mm x 40T | 50# | 1.2 | 40-44 | 2.0 |
| 160mm x 24T | 50# | 1.3 | 40-44 | 2.1 |
| 160mm x 30T | 50# | 1.3 | 40-44 | 2.1 |
| 160mm x 36T | 50# | 1.3 | 40-44 | 2.1 |
| 160mm x 40T | 50# | 1.3 | 40-44 | 2.1 |
| 160mm x 48T | 50# | 1.3 | 40-44 | 2.1 |
| 180mm x 24T | 50# | 1.4 | 40-44 | 2.2 |
| 180mm x 30T | 50# | 1.4 | 40-44 | 2.2 |
| 180mm x 36T | 50# | 1.4 | 40-44 | 2.2 |
| 180mm x 40T | 50# | 1.4 | 40-44 | 2.2 |
| 230mm x 24T | 50# | 1.6 | 40-44 | 2.4 |
| 230mm x 30T | 50# | 1.6 | 40-44 | 2.4 |
| 230mm x 36T | 50# | 1.6 | 40-44 | 2.4 |
| 230mm x 40T | 50# | 1.6 | 40-44 | 2.4 |
| 230mm x 48T | 50# | 1.6 | 40-44 | 2.4 |
| 230mm x 80T | 50# | 1.6 | 40-44 | 2.4 |
| 250mm x 24T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 36T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 40T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 48T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 60T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 80T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 100T | 50# | 1.8 | 40-44 | 2.6 |
| 250mm x 120T | 50# | 1.8 | 40-44 | 2.6 |
| 300mm x 40T | 50# | 2.0 | 40-44 | 3.0 |
| 300mm x 60T | 50# | 2.0 | 40-44 | 3.0 |
| 300mm x 80T | 50# | 2.0 | 40-44 | 3.0 |
| 300mm x 100T | 50# | 2.0 | 40-44 | 3.0 |
| 300mm x 120T | 50# | 2.0 | 40-44 | 3 |
Application: for cutting aluminum sheet and other non-ferrous metals, such as copper, brass and magnesium.
