Quick Details
-
Weight:
-
8000kg
-
Power (kW):
-
55
-
Screw Diameter:
-
90mm
-
L:D:
-
20:1
-
Motor Power:
-
55KW
-
Screw Material:
-
38CrMoAlA
-
Area Length:
-
30m
-
Product Shape:
-
Various shapes
-
Usage:
-
extruding strips
-
Material:
-
EPDM, NBR, SBR etc.
-
Item:
-
Window Flocking Rubber Seal Strips
-
Type:
-
Meet Customer's Demand
-
Certification:
-
ISO, CE, SGS
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SFC
-
Voltage:
-
As requirements
-
Weight:
-
8000kg
-
Power (kW):
-
55
-
Screw Diameter:
-
90mm
-
L:D:
-
20:1
-
Motor Power:
-
55KW
-
Screw Material:
-
38CrMoAlA
-
Area Length:
-
30m
-
Product Shape:
-
Various shapes
-
Usage:
-
extruding strips
-
Material:
-
EPDM, NBR, SBR etc.
-
Item:
-
Window Flocking Rubber Seal Strips
-
Type:
-
Meet Customer's Demand
-
Certification:
-
ISO, CE, SGS

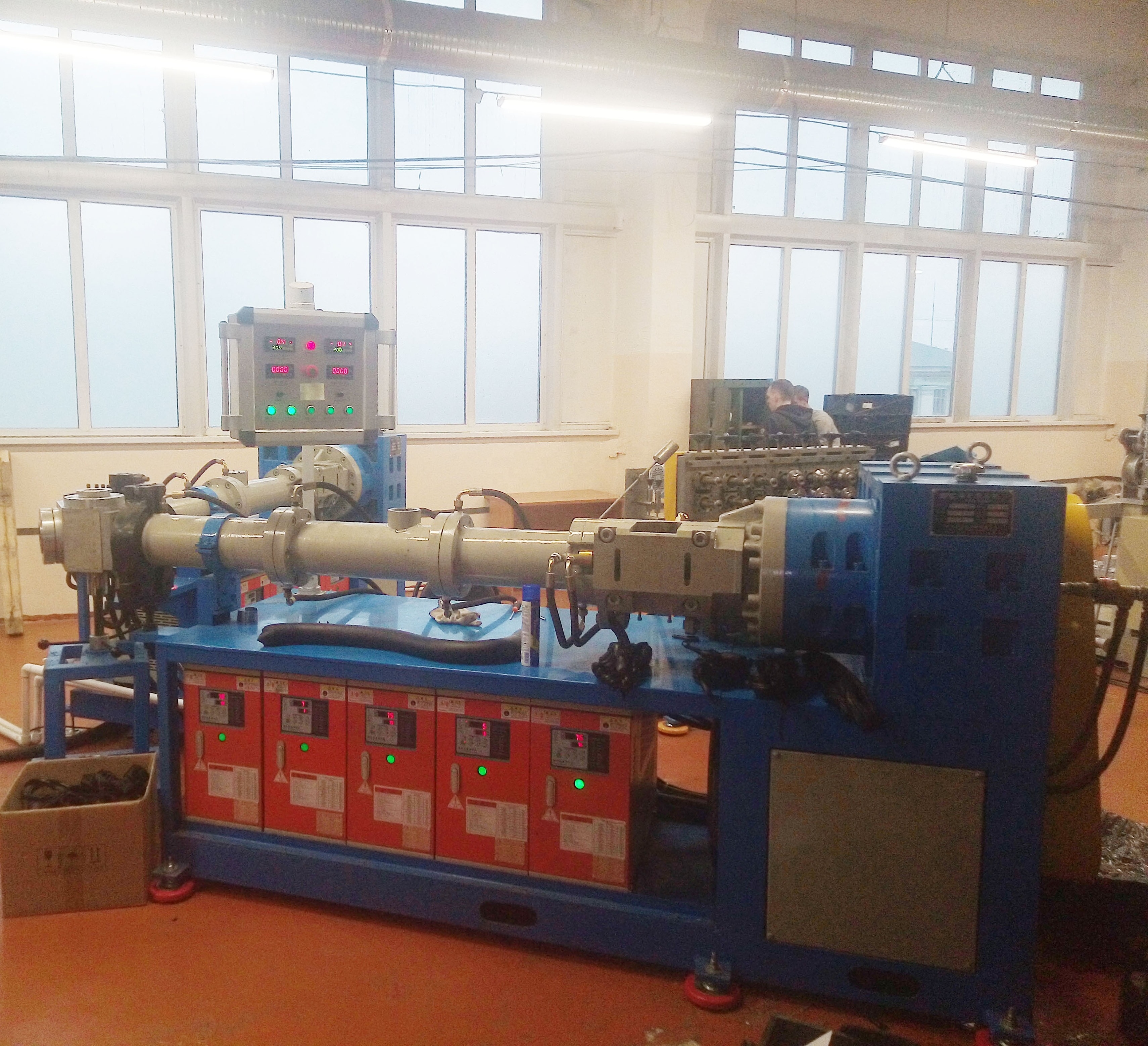

High Quality EPDM Rubber Seal Strip Extrusion Machine / Window and Door Sealing Strips Machine
The equipment is widely used in rubber machinery for extruding tread, inner tube, rubber tube and various rubber strips.
Features:
1) EPDM strips Extruder is simple structure ,easy in installation and maintenance.
2) EPDM strps Extruder adopts advanced world famous brand components in hydraulic parts, electric parts and operation parts.
3) Energy saving, high productivity, good plasitcization and refined glue quality characteristic.
4) It can equipped with various extrusion heads as required by users.
5) Machine body temperature measuring and indicating device is installed. The feeding zone is equipped with side rolls for the enhancement of feeding capability.
6)The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.
7)The reducer has a forced lubrication unit,which is featured by high transmission efficiency, long service life and low noise.
8) The machine is driven by a variable-speed motor.
9) The side rolls are designed as side-open type for easy rubber removal.
10) ISO, CE, SGS certificate.
Specification:
| Model | SJ-75 | SJ-90 | SJ-120 |
| Diameter of Screw (mm) | 75 | 90 | 120 |
| L:D | 20:1 | 20:1 | 20:1 |
| Motor Power (KW) | 37 | 55 | 90 |
Application:
| Item |
Quantity (set) |
| 1. 90 mm cold feed vacuum extruder+ Standard head | 1 |
| 2. 3m high temperature forming machine | 1 |
| 3. 8.9m 12KW microwave vulcanization oven | 1 |
| 4. 8.9m Hot air vulcanization oven | 2 |
| 5. 3m Cooling water tank | 1 |
| 6. Traction machine | 1 |
Single Extrusion EPDM rubber extrusion machine for aluminum windows:
extruder---high temperature forming machine---high temperature forming machine---microwave vulcanization---hot air vulcanization---hot air vulcanization--- water tank--- tractor ---cutting winder
(1) wrapped with stretch film, avoid rubbing the paint off the surface
(2 ) key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in plywood cases.
