Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
ZW
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2~75hp
-
Cable Length:
-
/
-
Outlet Size:
-
1inch ~ 12inch
-
Power:
-
1.5~55kw
-
motor:
-
IEC
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Impeller, seal, etc
-
Sealing:
-
Mechanical seal
-
Casing material:
-
Cast iron, stainless steel
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Packing:
-
Plywood case
-
Shipment:
-
By sea, air, express, etc
Quick Details
-
Application:
-
Wastewater Transport and Flood Control, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Middle pressure
-
Voltage:
-
110v, 220v, 380v, 415v, 480v, etc, 220V, 240V, 380V, 400V, 415V, 440V, etc are all available
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
ZW
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2~75hp
-
Cable Length:
-
/
-
Outlet Size:
-
1inch ~ 12inch
-
Power:
-
1.5~55kw
-
motor:
-
IEC
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Impeller, seal, etc
-
Sealing:
-
Mechanical seal
-
Casing material:
-
Cast iron, stainless steel
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Packing:
-
Plywood case
-
Shipment:
-
By sea, air, express, etc

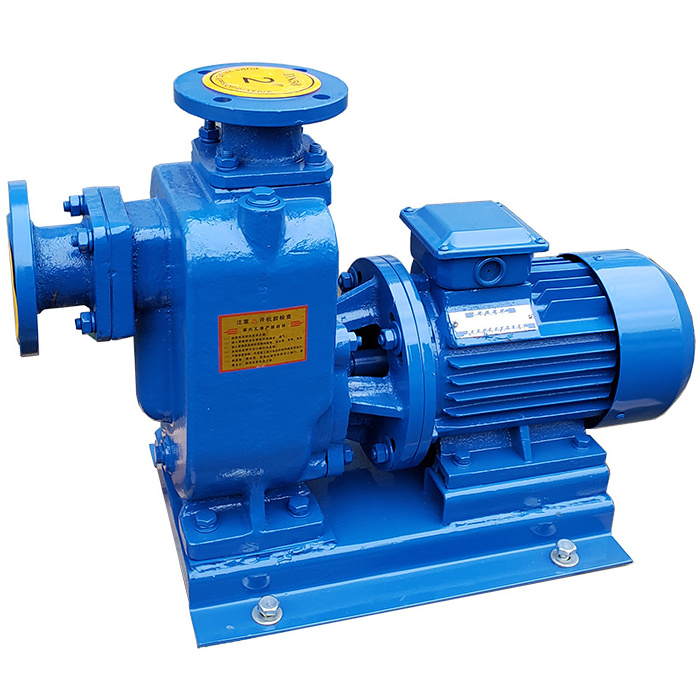

ZW self-priming sewage pump horizontal centrifugal industrial dirty water pump
Product introduction:
1. ZW self-priming sewage pump horizontal centrifugal industrial dirty water pump is special designed for sewage and waste water transfer and treatment.
2. The horizontal centrifugal pump is with self-priming structure, at the bottom of inlet, there’s a hole for unloading of solids left in pump.
3. It also could be equipped with diesel engine for wild application.
4. The unique structure of open impeller makes sure the free pass of solids in sewage with max size of 60% of outlet DN and fiber 150% of impeller diameter.
5. The sewage pumps are widely applicable for the lines of urban diacharge projects, light industry, papermaking, textile, foodstuff, chemicals, electric power, petroleum, mines, aquiculture and so on.
Products details:
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Sewage with soilds, dirty water |
| Driver: | Electric motor, diesel engine |
| Power Specs: | 220/380/400/415 V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal |
| Maximum grain diameter: | 15-170mm |
| Maximum fiber length: | 120-2000mm |
| Maximum viscosity: | 1×10 4 C.S.T |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 300mm(12nch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 8-800m 3 /h(35.2-3520US.GPM) |
