Quick Details
-
Brand Name:
-
Xintai
-
Model Number:
-
DN15-DN25
-
Nominal Size:
-
DN15
-
L*W*H1:
-
258*90*120mm
-
L1*W1*H2:
-
165*90*200mm
-
Link thread pipe D:
-
R 1/2
-
Link threaded case D:
-
G 3/4 B
-
Range ratio R:
-
100
-
Q1/Q2/Q3/Q4:
-
0.031/0.05/2.5/3.125(m³/h)
-
Temperature grade:
-
T30/T50/T90( standard configuration is T30, customized)
-
Min.Reading:
-
99999m³
-
ladder-like water price:
-
Three-tiered price
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Multi-jet meters, Prepaid water meters
-
Place of Origin:
-
Kaifeng, China
-
Brand Name:
-
Xintai
-
Model Number:
-
DN15-DN25
-
Nominal Size:
-
DN15
-
L*W*H1:
-
258*90*120mm
-
L1*W1*H2:
-
165*90*200mm
-
Link thread pipe D:
-
R 1/2
-
Link threaded case D:
-
G 3/4 B
-
Range ratio R:
-
100
-
Q1/Q2/Q3/Q4:
-
0.031/0.05/2.5/3.125(m³/h)
-
Temperature grade:
-
T30/T50/T90( standard configuration is T30, customized)
-
Min.Reading:
-
99999m³
-
ladder-like water price:
-
Three-tiered price
Product Description
Specification
|
Product Name
|

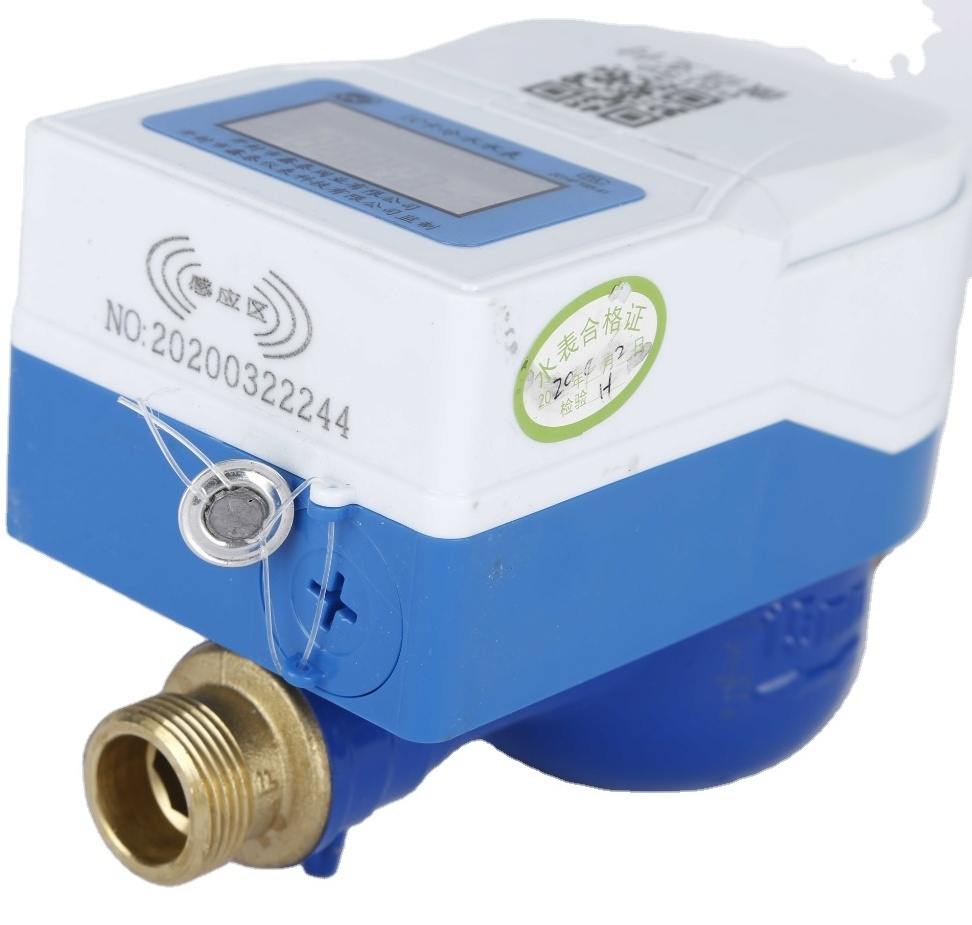

Smart ic card water meter
|
Temperature grade
|
T30/T50/T90( standard configuration is T30, and other temperature grades, customized)
|
|
Nominal Size
|
DN15
|
Min.Reading
|
99999m³
|
|
L(MM)
|
258
|
Display Content
|
Remaining amount, purchased water, used amount, used water, voltage, version number, etc.
|
|
L1(MM)
|
165
|
Ladder-like water price
|
Three-tiered price
|
|
W(MM)
|
90
|
Maximum allowable working pressure
|
1.0MPa
|
|
H1 (MM)
|
120
|
Work environment
|
-10℃～55℃, ≤100%RH
|
|
H2(MM)
|
200
|
Upstream fluency sensitivity level
|
U10
|
|
Link thread pipe D
|
R ½
|
Downstream fluency sensitivity level
|
D5
|
|
Link threaded case D
|
G ¾ B
|
Climatic and mechanical environmental condition grades
|
Grade B
|
|
Range ratio R
|
100
|
Electromagnetic compatibility level
|
E1
|
|
Q4（m³/h)
|
3.125
|
Power Supply
|
DC2.8V～3.6V
|
|
Q3（m³/h)
|
2.5
|
Pressure loss
|
≤0.063MPa
|
|
Q2（m³/h)
|
0.05
|
Protection grade
|
IP68
|
|
Q1（m³/h)
|
0.031
|
Quiescent current
|
＜20uA
|
|
Nominal Caliber(mm)
|
L (mm)
|
L1(mm)
|
W(mm)
|
H1(mm)
|
H2(mm)
|
Connect thread hose d
|
Connect thread case D
|
|
15
|
258
|
165
|
90
|
120
|
200
|
R1/2
|
G3/4B
|
|
20
|
299
|
195
|
90
|
120
|
200
|
R3/4
|
G1B
|
|
25
|
345
|
225
|
90
|
120
|
200
|
R1
|
G1
1/4
B
|
|
Item
|
Parameter
|
|
|
||
|
Nominal Caliber
|
DN15
|
DN20
|
DN25
|
||
|
Range Ratio R
|
R80/R100
|
|
|
||
|
Q4(m3/h)
|
3.125
|
5
|
7.875
|
||
|
Q3(m3/h)
|
2.5
|
4
|
6.3
|
||
|
Q2(m3/h)
|
0.05
|
0.08
|
0.13
|
||
|
Q1(m3/h)
|
0.031
|
0.05
|
0.08
|
||
|
Temperature Grade
|
T30/T50/T90
|
|
|
||
|
Max Reading
|
99999m³
|
|
|
||
|
Display Content
|
Remaining amount, purchased water amount, used amount, used water amount, voltage, version number, etc
|
|
|
||
|
Ladder Price
|
3 laddering price
|
|
|
||
|
Max Permit Work Pressure
|
1.0Mpa
|
|
|
||
|
Working Environment
|
-10℃-55℃, ≤100% RH
|
|
|
||
|
Up Stream Flow sensitivity Level
|
U10
|
|
|
||
|
Down Stream Flow sensitivity Level
|
D5
|
|
|
||
|
Climate and mechanical environment level
|
B Class
|
|
|
||
|
Electromagnetic Compatibility Level
|
E1
|
|
|
||
|
Power Supply
|
DC2.8V-3.6V
|
|
|
||
|
Pressure Loss
|
≤0.063MPa
|
|
|
||
|
Protect Level
|
IP68
|
|
|
||
|
Quiescent Current
|
<20uA
|
|
|
||
Features
1. Wechat app, open Bluetooth, and within 10 meters, the mobile phone will automatic connect to the water meter to recharge, check the balance, check the battery status, ETC ;
2. When the user's mobile phone is connected to the Bluetooth water meter, the water meter data will be automatically uploaded to the management through the mobile phone;
3. Low power consumption Bluetooth data transmission technology is adopted to ensure the service life of the product is more than 6 years;
4. There is no need for construction wiring, no need to add intermediate data transmission equipment, reduce cost and failure rate, and improve the success rate, stability and convenience of data transmission;
5. Support Bluetooth recharging, IC card recharging, and Bluetooth card reader recharging; 6. Support ladder water price online change function
3. Low power consumption Bluetooth data transmission technology is adopted to ensure the service life of the product is more than 6 years;
4. There is no need for construction wiring, no need to add intermediate data transmission equipment, reduce cost and failure rate, and improve the success rate, stability and convenience of data transmission;
5. Support Bluetooth recharging, IC card recharging, and Bluetooth card reader recharging; 6. Support ladder water price online change function
