Quick Details
-
Product name:
-
gas-fired melting furnace
-
Crucible capacity:
-
Graphite Crucible 350KG
-
Power:
-
300,000 kcal
-
Fule:
-
Natural gas
-
Design operating temperature:
-
less than 900℃
-
Melting speed:
-
less than 2.5h
-
Temperature control accuracy:
-
less than ±5℃
-
Energy consumption:
-
The target value is 70Nm³ per 1 ton
-
Soup method:
-
Hydraulic dumping
-
Temperature uniformity:
-
±5℃
Quick Details
-
Place of Origin:
-
United States
-
Weight (T):
-
0.5 T
-
Power (kW):
-
300,000 kcal
-
Product name:
-
gas-fired melting furnace
-
Crucible capacity:
-
Graphite Crucible 350KG
-
Power:
-
300,000 kcal
-
Fule:
-
Natural gas
-
Design operating temperature:
-
less than 900℃
-
Melting speed:
-
less than 2.5h
-
Temperature control accuracy:
-
less than ±5℃
-
Energy consumption:
-
The target value is 70Nm³ per 1 ton
-
Soup method:
-
Hydraulic dumping
-
Temperature uniformity:
-
±5℃

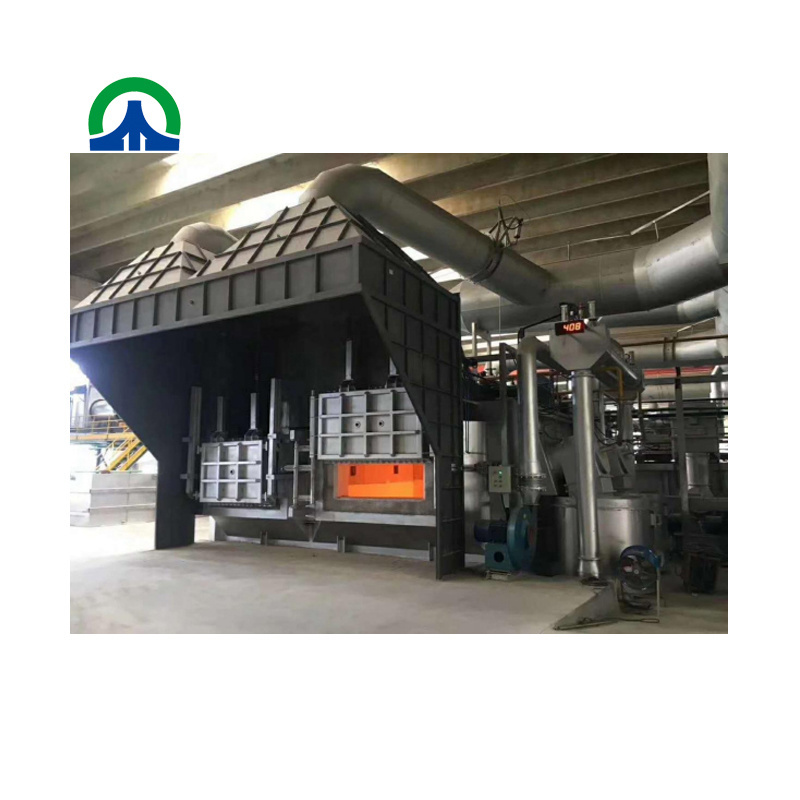

Gas smelting furnace is a furnace used for smelting and holding non-ferrous metals such as copper, aluminum and zinc,etc. The main fuel is natural gas, liquefied petroleum gas or diesel. Mainly used in the melting and metal casting industries of scrap metal recycling.
According to the different capacity, it can be divided into crucible furnace, converter furnace, reverberatory furnace.
|
Model |
Melting Capacity |
Crucible Capacity |
Burner Power |
Dimension(L*W*H) |
|
DM-GMF-350 |
150 kg/h |
350 kg |
20*10 4 Kcal/h |
1750*2050*2050mm |
|
DM-GMF-500 |
200 kg/h |
500 kg |
3 0*10 4 Kcal/h |
2000*2280*2150mm |
|
DM-GMF-600 |
300 kg/h |
600 kg |
30*10 4 Kcal/h |
2050*2280*2150mm |
|
DM-GMF-800 |
350 kg/h |
800 kg |
40*10 4 Kcal/h |
2200*2400*2300mm |
|
DM-GMF-1000 |
450 kg/h |
1000 kg |
40*10 4 Kcal/h |
2200*2400*2500mm |
