Quick Details
-
Current:
-
50Hz
-
Dimensions:
-
160mm~315mm
-
Use:
-
Welding plastic pipe
-
Power (kW):
-
5.21
-
Weight (KG):
-
217 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
red or blue or other
-
Available welding diameter:
-
160mm,180mm,200mm,225mm,250mm,280mm,315mm
-
Total Weight:
-
218KG
-
Material:
-
Aluminum
-
Weld Method:
-
hydraulic butt fusion welding machine
-
Apply To:
-
sanitation, water, natural gas and others
-
Package:
-
standard export plywood cases
-
Video teaching:
-
YES
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BADA
-
Input Voltage:
-
220v
-
Current:
-
50Hz
-
Dimensions:
-
160mm~315mm
-
Use:
-
Welding plastic pipe
-
Power (kW):
-
5.21
-
Weight (KG):
-
217 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
red or blue or other
-
Available welding diameter:
-
160mm,180mm,200mm,225mm,250mm,280mm,315mm
-
Total Weight:
-
218KG
-
Material:
-
Aluminum
-
Weld Method:
-
hydraulic butt fusion welding machine
-
Apply To:
-
sanitation, water, natural gas and others
-
Package:
-
standard export plywood cases
-
Video teaching:
-
YES
pipe hdpe welding hydraulic butt welder butt fusion welding machine

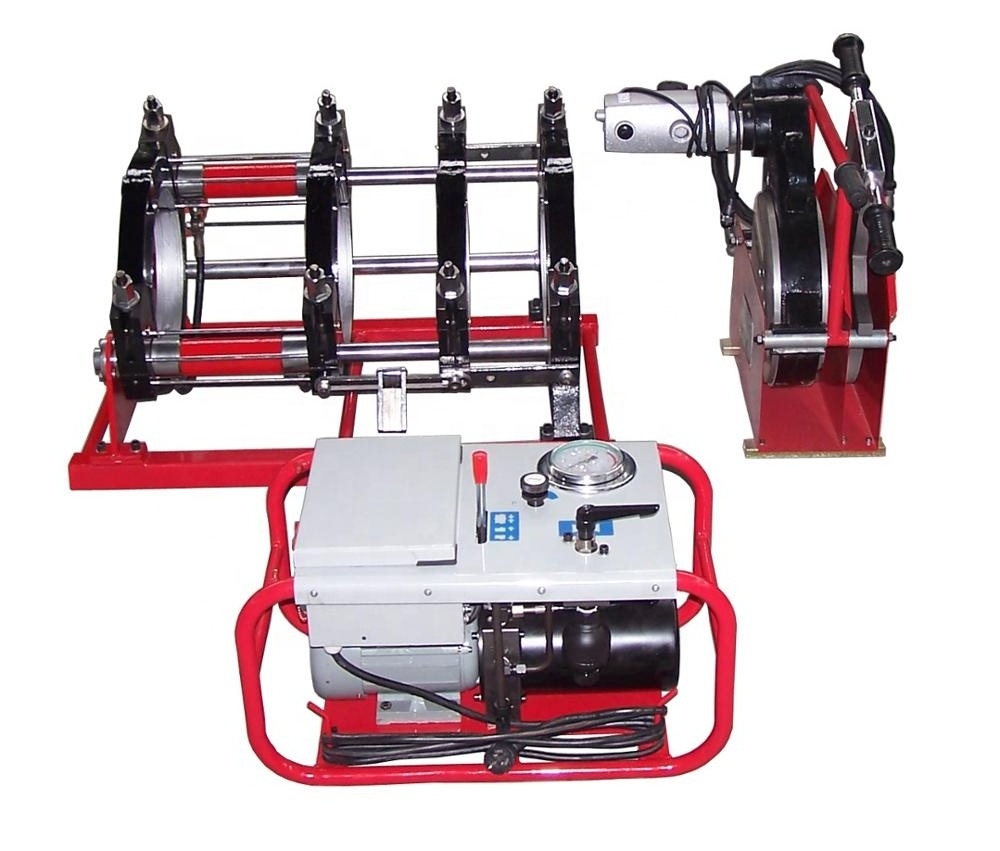

This
hydraulic butt fusion welding machine
is able to weld pipes and fittings with material pe pipe，hdpe pipe , operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
|
Model
|
SHBD315
|
|
Welding diameters (mm)
|
90-110-125-140-160-180-200-225-250-280-315mm
|
|
Heating plate temperature
|
270°C
|
|
Heating plate surface
temperature(170-250°C) |
<±5°C
|
|
Pressure adjustment range
|
0-10MPa
|
|
Cross-sectional area of the cylinder
|
2000mm
2
|
|
Working Voltage
|
220V, 50Hz
|
|
Heating plate power
|
3.1KW
|
|
Milling cutter power
|
1.36KW
|
|
Hydraulic station power
|
0.75KW
|
|
Total Power
|
5.21KW
|
When our
hydraulic butt fusion welding machine
together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.
1. CE, SGS, ISO9001 certificate
2. 2 years warranty, life-long maintenance.
3. Provide on line video technique teaching of fusion welding,In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can Offer maintenance service (charge for material cost).
4. Engineers available to service machinery overseas.
Related Products
Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd
is a 23 years factory in China on research
develop and produce welding machine Jinan Bada's main products are:HDPE pipe butt fusion welding machineelectrofusion welding machine,automatic welding machine,multi-angle cutti-ng sawworkshop fitting welding equipment, gas and water polyethylene pipes and fittings.
The products are widely used in municipalelectric power,petroleum and chemical industries.
as well as mininanon-ferrous metal smeltina submarine water convevance and other special working conditions.
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
1. Q:What is your payment terms ?
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
A:100% TT in advance . Western Union , D/P, Credit card payment on line .
2. Q:What’s your delivery time ?
A:3-5 days after payment
3.Q:How about your Guarantee and Service ?
A:All designed according to ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007)
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
International warranty: 12 months. Any parts broken or does not work under normal operating, we are free to provide.
4.Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
