Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huadong
-
Model Number:
-
vr cable
-
1.Brand:
-
Huadong
-
2.name:
-
Electric Buliding Wire
-
3.Model Number:
-
BV BLV RBV RVV RVS RV
-
4.Voltage:
-
300/500V 450/750V
-
5.Insulation:
-
PVC
-
6.Color:
-
Black /Red or as your requirement
-
7.Certificate:
-
CCC CQC ISO BV
-
8.Conductor:
-
Copper or Aluminum
-
9.Number of cores:
-
1core ,2 cores ,3 cores ,as your request
-
10.Standard:
-
IEC 60227
Quick Details
-
Application:
-
home wire
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Huadong
-
Model Number:
-
vr cable
-
1.Brand:
-
Huadong
-
2.name:
-
Electric Buliding Wire
-
3.Model Number:
-
BV BLV RBV RVV RVS RV
-
4.Voltage:
-
300/500V 450/750V
-
5.Insulation:
-
PVC
-
6.Color:
-
Black /Red or as your requirement
-
7.Certificate:
-
CCC CQC ISO BV
-
8.Conductor:
-
Copper or Aluminum
-
9.Number of cores:
-
1core ,2 cores ,3 cores ,as your request
-
10.Standard:
-
IEC 60227

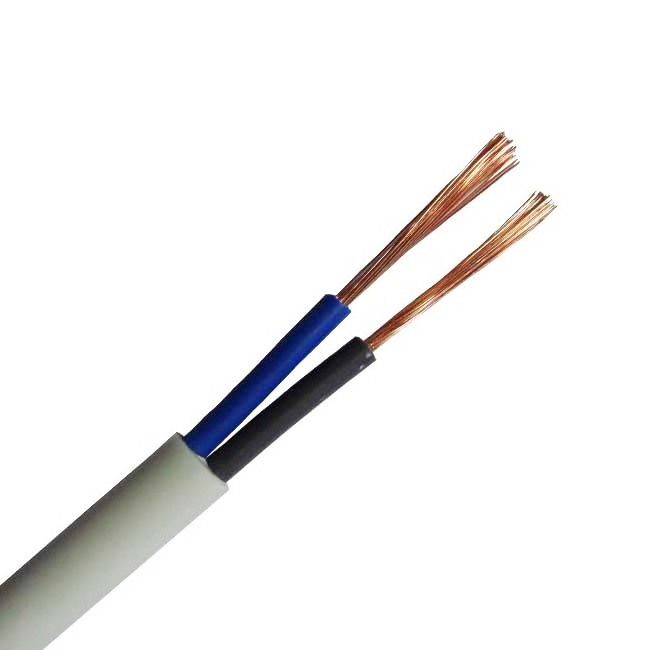

Ghana BVVB flat electrical wire 2.5mm twin with earth cable PVC insulation white sheath
the products can be used for power,lighting or telecommunication equipment,household electric appliance,meter and instrument,etc.
A. Uo/U is 450/750 and 300/500.
B. Long time working temperature of or below 70°C is required for all cables or wires,except Model No BV-90 that can stand temperature up to 90°C.
C. Temperature should be above 0°C when laying the cables or wires.
|
Nominal section (mm 2 ) |
Number/diameter of core (mm) |
Maximum outer diameter (mm 2 ) |
Reference weight (Kg/km) |
Conductor resistance at 20°C ≤(Ω/km) |
||
|
copper |
aluminum |
aluminum |
copper |
|||
|
1.5(A) |
1/1.38 |
3.3 |
20.3 |
----- |
----- |
12.1 |
|
1.5(B) |
7/0.52 |
3.5 |
21.6 |
----- |
----- |
12.1 |
|
2.5(A) |
1/1.78 |
3.9 |
31.6 |
17 |
11.80 |
7.41 |
|
2.5(B) |
7/0.68 |
4.2 |
34.8 |
----- |
----- |
7.41 |
|
4(A) |
1/2.25 |
4.4 |
47.1 |
22 |
7.39 |
4.61 |
|
4(B) |
7/0.85 |
4.8 |
50.3 |
------ |
----- |
4.61 |
|
6(A) |
1/2.76 |
4.9 |
65 |
29 |
4.91 |
3.08 |
|
6(B) |
7/1.04 |
5.4 |
71.2 |
---- |
---- |
3.08 |
|
10 |
7/1.35 |
7.0 |
119 |
62 |
3.08 |
1.83 |
|
16 |
7/1.70 |
8.0 |
179 |
78 |
1.91 |
1.15 |
|
25 |
7/2.04 |
10.0 |
281 |
118 |
1.20 |
0.727 |
|
35 |
7/2.52 |
11.5 |
381 |
156 |
0.868 |
0.524 |
|
50 |
19/1.78 |
13.0 |
521 |
215 |
0.641 |
0.387 |
|
70 |
19/2.14 |
15.0 |
734 |
282 |
0.443 |
0.268 |
|
95 |
19/2.52 |
17.5 |
962 |
385 |
0.320 |
0.193 |
Good quality 2.5mm electrical wiring with best price.
1,wooden drum, Iron wooden drum or as your request
. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
2, the long & wide & high of 40 size container:11.9*2.32*2.72
Good quality 2.5mm electrical wiring with best price
.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
