Quick Details
-
Weight (KG):
-
1.1
-
Dimensions:
-
130x110x170 CM
-
Use:
-
welding
-
Applicable Material:
-
Metal Stainless Steel Aluminum
-
Product name:
-

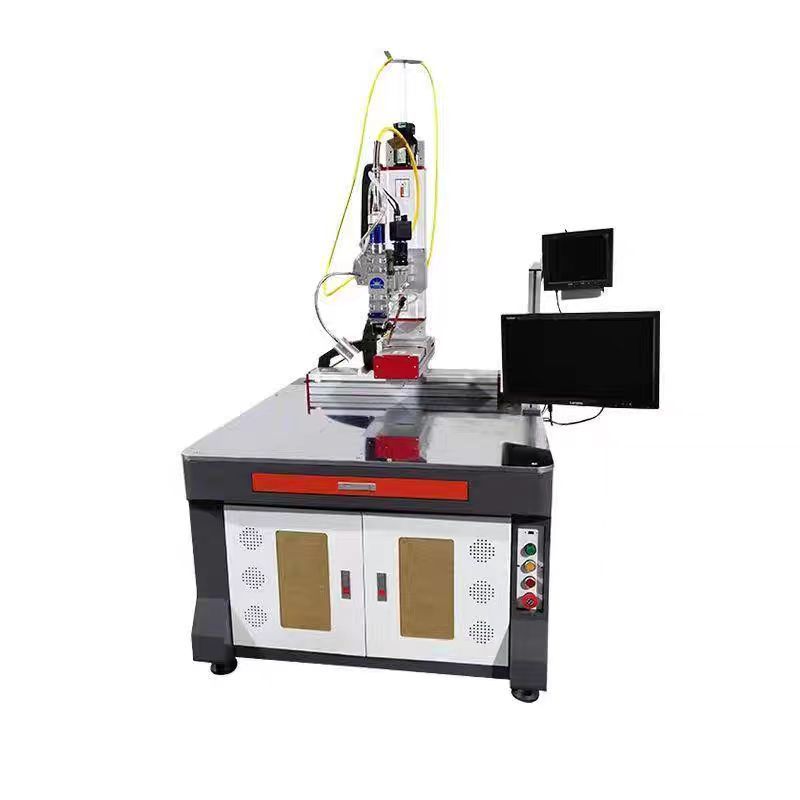

Fiber Laser Welding Machine
-
Keyword:
-
High-quality Laser Welding Machine
-
Function:
-
Welding Steel Tube
-
Motion axis travel:
-
660*460*400(mm)
-
After-sales Service Provided:
-
Service Machinery Overseas
-
maximum load:
-
250KG
-
output method:
-
Continuous/modulation
-
Wobble weld size:
-
0-10mm
-
linkage function:
-
Yes
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
smartech
-
Weight (KG):
-
1.1
-
Dimensions:
-
130x110x170 CM
-
Use:
-
welding
-
Applicable Material:
-
Metal Stainless Steel Aluminum
-
Product name:
-
Fiber Laser Welding Machine
-
Keyword:
-
High-quality Laser Welding Machine
-
Function:
-
Welding Steel Tube
-
Motion axis travel:
-
660*460*400(mm)
-
After-sales Service Provided:
-
Service Machinery Overseas
-
maximum load:
-
250KG
-
output method:
-
Continuous/modulation
-
Wobble weld size:
-
0-10mm
-
linkage function:
-
Yes
Products Description
|
The application of fiber laser welding machine
|
* 5 In 1 multifunctional which is more cost effective,your best choice !
* The internal design is smart, and the good interactive control system expands the tolerance range of the processed parts and the width of the weld seam(range 0-6mm), solves the disadvantage of small light spot, and makes the weld seam better.
* Lightweight, using body engineering design method, comfortable grip; easy control with one hand
* simple operation,Easy to use,no have to be experienced workers,fresh workers are fine.
* With multiple safety alarms, the light will be automatically locked after the work piece is removed, which is highly safe.
* Beautiful welding seam, fast speed, no welding marks,not deformation, not blackening, strong welding, no grinding required no need for later polishing,Consumables few.
* Various angle nozzles can be configured to meet the welding needs of different products.
* Swing welding head can be used for welding at any angle or shape.
Performance characteristics:
* Adapt for various metal materials, Carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials；
* The light can be emitted continuously or pulsed, not only for thermal conductivity, but also for continuous deep penetration.It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, cleaning,cutting.
* Adopt continuous Fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency is greater than 25%, and the service life of the pump source is greater than 100,000 hours;
* Fast processing speed;
* Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials);
* It can process parts with complex shapes and small parts, and can also be processed in vacuum;
* and Robotic arm and other automated institutions Combined, the processing can be automated;
* Can realize filler wire welding,Due to advanced processimethods, existproduct structures and materials can be improved.
|
Specification
|
|
|
|
Equipment Dimensions Table
|
Length (front and back)1250mmX width (left and right)1000mmXheight 740mm
|
|
|
Motion axis travel
|
660*460*400(mm)
|
|
|
Features
|
Standard 3-axis linkage realizes welding of any three-dimensionaltrajectory in space
|
|
|
maximum load
|
250KG
|
|
|
Collimation head adjustment
|
XZ plane +45° tilt angle adjustable
|
|
|
Wobble weld size
|
0-10mm
|
|
|
External control call waveform
|
Yes (for pulsed lasers)
|
|
|
linkage function
|
Yes
|
|
|
Supporting models
|
Various series of optical fiber transmission welding machines
|
|
|
electricity demand
|
220V+5%/50Hz/20A
|
|
|
power consumption of workbench
|
5KW
|
|
