2D CMOS QR Code Reader for Warehouse with Screen Handheld Bluetooth 2D Barcode Scanner Wireless

2D CMOS QR Code Reader for Warehouse with Screen Handheld Bluetooth 2D Barcode Scanner Wireless

FOB Reference Price: Get Latest Price

≥2 Pieces

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Optical Resolution:: 3mil

Scan Speed:: 65cm/s

Brand Name:: DY Scan

Place of Origin:: Guangdong, China

Scan Type:: CMOS

Resolution:: 640*480

Decoding speed:: 65CM/S

Depth of field:: 10mm~550mm

Scan Mode:: Manual , Auto Sense,Continuous

Prompt method:: LED indicator, buzzer

Print Contrast Signal:: ≥15%

Battery capacity:: 4800mAh

Support systems:: Windows,Mac OS,IOS, Linux,Unix,Android

Screen Size:: 1.77 inch

Quick Details

Type:: Barcode Scanner

Scan Element Type:: CMOS

Max Paper Size:: A4 Size

Optical Resolution:: 3mil

Scan Speed:: 65cm/s

Brand Name:: DY Scan

Place of Origin:: Guangdong, China

Scan Type:: CMOS

Resolution:: 640*480

Decoding speed:: 65CM/S

Depth of field:: 10mm~550mm

Scan Mode:: Manual , Auto Sense,Continuous

Prompt method:: LED indicator, buzzer

Print Contrast Signal:: ≥15%

Battery capacity:: 4800mAh

Support systems:: Windows,Mac OS,IOS, Linux,Unix,Android

Screen Size:: 1.77 inch

Products Description

Model:DS5220BD-2D

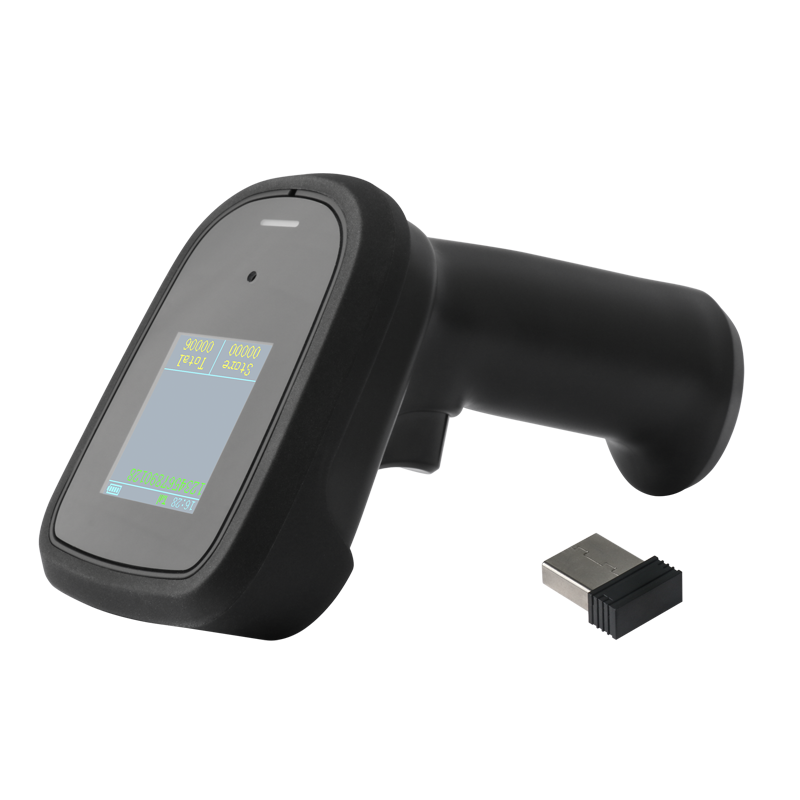

DS5220BD-2D is an industrial handheld 2D wireless barcode scanner with a display screen. It has excellent reading performance and can easily read barcodes on different media such as paper, commodities, and screen.
This product adopts enhanced wireless 2.4G transmission technology, the effective distance of outdoor open environment can reach more than 60 m, and it can support both wired and wireless transmission methods.
The screen can display barcode data , product name and price information, the current time, wireless (wired) status, wireless working mode, charging status and battery power, total stored data.

The total number of decoding (the maximum count shows 99999),the number of pieces of data and the total number of times can be cleared by scanning the setting codes.
It can be mainly used in industrial production, mobile payment, commodity barcode scanning, inventory, etc.

Features

> Highly integrated two-dimensional decoding structure, anti-drop, anti-vibration.
> Using high-performance MCU, it can easily identify all mainstream 1D 2D barcodes in the market.
> 300,000 global exposure camera, automatic exposure, suitable for complex use environment.
> Easily read barcodes above 3MIL to meet daily scanning needs.
> Enhanced wireless 2.4G transmission technology, reliable outdoor transmission distance can reach more than 60 m, and support wired transmission without switching.
>Support wireless BT 4.2 communication mode, support HID, SPP, BLE three communication protocols.
>Support multiple working modes (manual, induction, continuous) to meet different reading needs.
>1.77 inch TFT screen, 128×160, can display up to 96 barcode characters in 6 lines.
>The product name and price information can also be displayed on the TFT screen through the uploaded product information.
>Support online upgrade, custom development and secondary development.
>With vibration prompt, scanning code is clearer.

Details Images

Product Parameters

Performance

Scan Type	CMOS
Light Source	Red Light LED 525±10nm（aim), 5600K LED ( Lighting)
CUP	ARM32-bit
Resolution	640*480(global exposure)
Reading precision	≥3mil/0.076mm（PCS90%,CODE 39）
Motion tolerance	65CM/S
Depth of field	10mm~550mm
Scan mode	Manual , Auto Sense,Continuous
prompting mode	LED indicator, buzzer
Reading angle	Roll：±30°、Pitch：±60°or greater、Yaw：±60°or greater）
Print contrast	≥15%PCS
Ambient Light	Dark environment, indoor natural light
Wireless communication mode	Synchronization , storage
Wireless transmission distance	2.4GHz,100m（Open distance）, BT 30m ( Open distance)
Storage	4Mb（over 15,000 Product code）
Battery capacity	4800mAh
Battery charging time	About 7 hours
Symbologies	1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Tepepen, Febraban，GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, etc.

Physical Parameter

Weight	≈217.1g（without cable）
Dimension	L169.08mm * W67.1mm * H90.96mm
Interface	USB
Communication	USB、Wireless 2.4G、Wireless BT 4.2
Power Supply	DC 5V@200mA

Environmental

operating temperature	0℃ to 50℃
storage temperature	-30℃ to 60℃
Humidity	5% to 95%（non-condensing）
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.
High Temp	60℃
Low Temp	-20℃
Transport vibration test	10H@125RPM
