Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHARPHY
-
Model Number:
-
PWM Motor Speed Controller
Product Discription:
Operating voltage: DC 10V-60V
Output Current: 0 to 20A.
Frequency:25KHz.
Continuous power: Max 1200W
Speed range: Motor zero speed to maximum motor speed
The maximum current up to 20A radiator or heat required to increase the fan
Material: Plastic, metal
Size (L*W*H):76mm*44mm*26mm
Package Included:

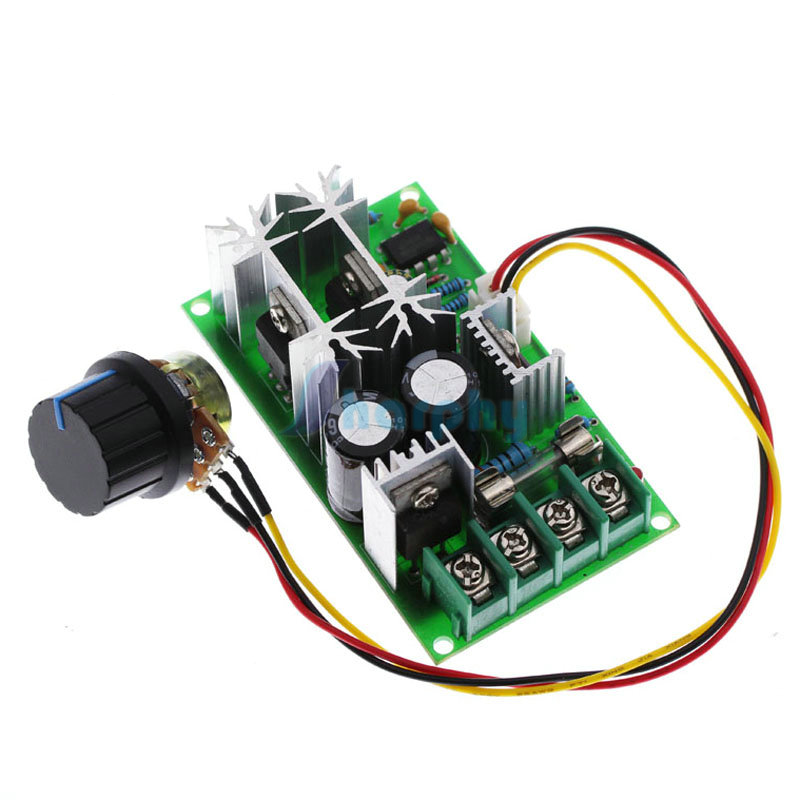

1 x 20A Universal DC10-60V PWM HHO RC Motor Speed Regulator Controller Switch
Explain:
Before starting the power supply, make sure the positive and negative connections are correct, do not touch the heatsink and touch the circuit board that may burn. Please note that this is not a power supply module, must be connected to the motor to speed up the speed, do not connect the motor multimeter output unchanged.
Enter 9 × 60V internal DC power
Supply: POWRE POWRE-.
Motors: MOTOR MOTOR-.
Please note:
1, This governor is used for DC brush motor.
2, Not suitable for DC brushless motor speed regulation; nor can it be used as a regulator or regulator!
