Quick Details
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2643x1150x2215mm
-
Weight (KG):
-
3800 kg
-
Type:
-
Powered Pallet Truck
-
Product Name:
-
Diesel Forklift 2ton for sale
-
Engine:
-
Isuzu, Mitsubishi, Yanmar, Xinchai
-
Loading Capacity:
-
2000kgs
-
Mast:
-
3000-7000mm
-
Tire:
-
Pneumatic, Solid,super plastic
-
Transmission:
-
Automatic, Mechanical
-
Options:
-
Side shifter, Fork positioner, Clamp, etc.
-
Color:
-
Yellow, Red, Orange, Blue
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2643x1150x2215mm
-
Weight (KG):
-
3800 kg
-
Type:
-
Powered Pallet Truck
-
Product Name:
-
Diesel Forklift 2ton for sale
-
Engine:
-
Isuzu, Mitsubishi, Yanmar, Xinchai
-
Loading Capacity:
-
2000kgs
-
Mast:
-
3000-7000mm
-
Tire:
-
Pneumatic, Solid,super plastic
-
Transmission:
-
Automatic, Mechanical
-
Options:
-
Side shifter, Fork positioner, Clamp, etc.
-
Color:
-
Yellow, Red, Orange, Blue
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product
Product Description

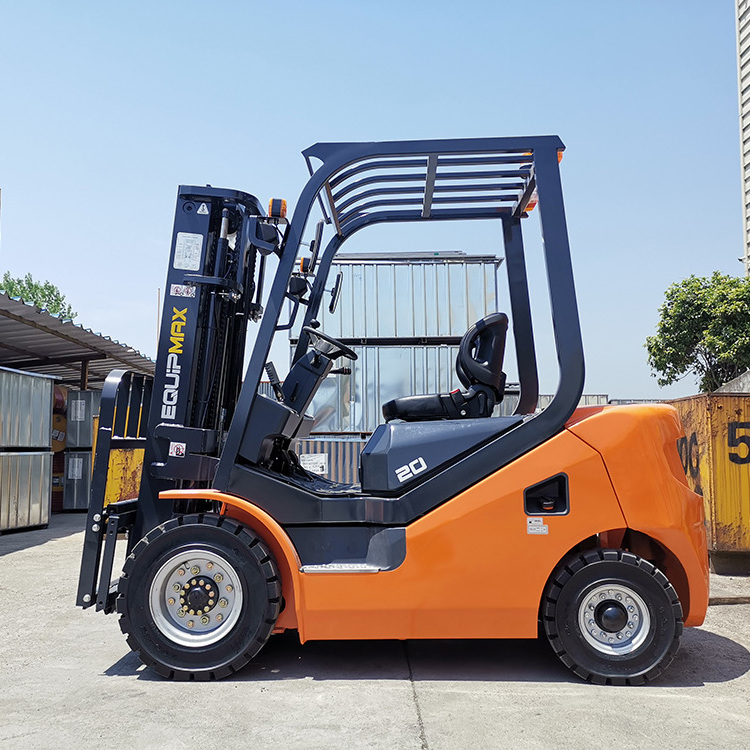

Equipmax FD15T-FD35T Diesel Forklift provides you with multiple choices as per your real needs, we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provides prompt and precise feedback to the driver when steering.
The operator cabin is reasonable-designed considering its space,layout of the steering column and instrument displayer,file storage and suspension seat.The wide-view mast provides the operator with a wide visibility which improves the efficiency and guarantee the safety.
All these features guarantee the stability and driving safety of the forklift.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provides prompt and precise feedback to the driver when steering.
The operator cabin is reasonable-designed considering its space,layout of the steering column and instrument displayer,file storage and suspension seat.The wide-view mast provides the operator with a wide visibility which improves the efficiency and guarantee the safety.
All these features guarantee the stability and driving safety of the forklift.
| General | 1 | Brand | EQUIPMAX | ||||
| 2 | Model | FD20T-FN | FD25T-FN | FD20T-JBN | FD25T-JBN | ||
| (FD20-F) | (FD25-F) | (FD20-JB) | (FD25-JB) | ||||
| 3 | Power Type | Diesel | |||||
| 4 | Rated Load Capacity | Q(kg) | 2000 | 2500 | 2000 | 2500 | |
| 5 | Load Centre | C(mm) | 500 | ||||
| Characteristic & Dimension | 6 | Rated Lift Height | H3(mm) | 3000 | |||
| 7 | Free Lift Height | H2(mm) | 100 | ||||
| 8 | Fork Size (L×W×T) | mm | 1070×120×40 | ||||
| 9 | Mast Tilt Angle (F/R, α°/β°) | deg | 6°/12° | ||||
| 10 | Fork Overhang (Wheel Center to Fork Face) | X1(mm) | 479 | ||||
| 11 | Rear Overhang | X2(mm) | 520 | ||||
| 12 | Ground Clearance (Bottom of Mast) | H7(mm) | 130 | ||||
| 13 | Length to Face of Fork (Without Fork) | L1(mm) | 2660 | ||||
| 14 | Overall Width | B1(mm) | 1150 | ||||
| 15 | Mast Lowered Height | H1(mm) | 2055 | ||||
| 16 | Mast Extended Height (With Backrest) | H4(mm) | 4070 | ||||
| 17 | Overhead Guard Height | H5(mm) | 2215 | ||||
| 18 | Turning Radius (Outside) | Wa(mm) | 2365 | ||||
| 19 | Min.Aisle width for pallets | Ast(mm) | 4120 | ||||
| Performance | 20 | Travel Speed (No Load) | km/h | 19 | |||
| 21 | Lifting Speed (Full Load) | mm/sec | 490 | ||||
| 22 | Lowering Speed (Full Load) | mm/sec | 450 | ||||
| 23 | Max.Drawbar Pull (Full Load/No Load) | KN | |||||
| 24 | Max.Gradeability (Full Load) | % | 20 | ||||
| Chassis | 27 | Front Tread | B2(mm) | 970 | |||
| 28 | Rear Tread | B3(mm) | 980 | ||||
| 29 | Wheelbase | Y(mm) | 1650 | ||||
| Power & Transmission | 35 | Battery | V/Ah | 12/90 | |||
| 36 | Engine Model | C490BPG -37 (EUⅢ) | C240NKFC-01 (EUⅢ) | ||||
| 37 | Engine Manufacturer | XINCHAI | ISUZU | ||||
| 38 | Rated Output / r.p.m. | kw | 36.8/2650 | 34.5/2500 | |||
| 39 | Rated Torque / r.p.m. | N·m | 156/1800 | 139/1800 | |||
| 40 | No.of Cylinder | 4 | |||||
| 41 | Bore x Stroke | mm | 90×105 | 86×102 | |||
| 42 | Displacement | cc | 2670 | 2369 | |||
| 43 | Fuel Tank Capacity | L | 50 | ||||
| 44 | Transmission Type | Powershift ( Manual) | |||||
| 45 | Transmission Stage (FWD/RVS) | 1/1(2/2) | |||||
| 46 | Operating Pressure (For Attachments) | Mpa | 17.5 | ||||
