Quick Details
-
Brand Name:
-
LIYI
-
Temperature range:
-
-70C~+150C
-
Humidity range:
-
20%~98%
-
Uses:
-
Environmental chamber
-
Controller:
-
Touch screen programmable controller
-
Compressor:
-
Tecumseh
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIYI
-
Temperature range:
-
-70C~+150C
-
Humidity range:
-
20%~98%
-
Uses:
-
Environmental chamber
-
Controller:
-
Touch screen programmable controller
-
Compressor:
-
Tecumseh

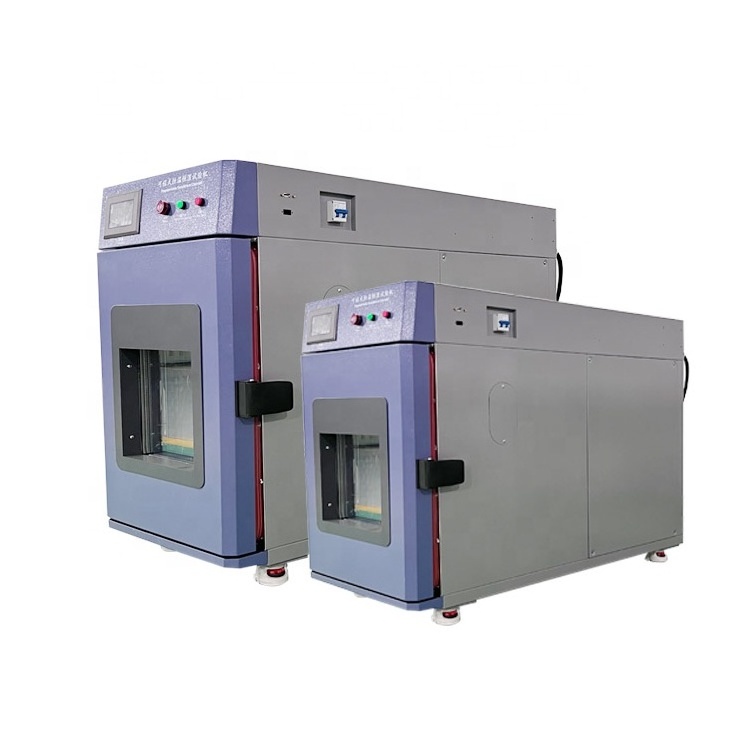

Liyi Constant Temperature And Humidity Machine Control Chamber Climate Test Cabinet Climatic Chamber Price
Product Description
Liyi temperature and humidity chamber is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth. Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
Specifications
|
Model
|
|
LY-280
|
LY-2150
|
LY-2225
|
LY-2408
|
LY-2800
|
|||||
|
Inner Size
W×H×D(cm) |
|
40×50×40
|
50×60×50
|
50×75×60
|
60×85×80
|
100×100×80
|
|||||
|
Outside Size
W×H×D(cm) |
|
93×155×95
|
100×148×106
|
117×166×91
|
140×176×101
|
170×186×111
|
|||||
|
Volume (V)
|
|
80 L
|
150L
|
225L
|
408L
|
800L
|
|||||
|
Temp and Hum
Range |
|
A:-20°C~150°C B: -40°C~150°C
C: -60°C~150°C D: -70°C~150°C
RH20%-98%
|
|
|
|
|
|||||
|
|
Fluctuation
|
±0.5°C ±2.5%RH
|
|
|
|
|
|||||
|
|
Deviation
|
±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
|
|
|
|
|
|||||
|
|
Controller
Analytical Accuracy |
±0.3°C ±2.5%RH
|
|
|
|
|
|||||
|
Material
|
Inner Wall
|
#SUS 304 Stainless steel
|
|
|
|
|
|||||
|
|
Outer Skin
|
#SUS 304 Stainless steel
|
|
|
|
|
|||||
|
|
Heat
Preservation |
High temperature resistant,
high chlorine acid b vinegar foam insulation materials |
|
|
|
|
|||||
|
Wind Cycling Way
|
|
Centrifugal fan-broadband type forced air circulation
|
|
|
|
|
|||||
|
Refrigeration Way
|
|
Single stage compression refrigeration
|
|
|
|
|
|||||
|
Refrigerator
|
|
French Tecumseh
|
|
|
|
|
|||||
|
Refrigerants
|
|
R4O4A USA DuPont environmental protection refrigerant(R23+R404)
|
|
|
|
|
|||||
|
Condensing Way
|
|
Air-cooled or water-cooled
|
|
|
|
|
|||||
|
Heater
|
|
Nickel chrome heating wire heater
|
|
|
|
|
|||||
|
Humidifier
|
|
Semi-closed steam and wet
|
|
|
|
|
|||||
|
Water Supplying Way
|
|
Automatic cycling water supply
|
|
|
|
|
|||||
|
Standard
Accessories |
|
1 Observe window(double-deck cavity toughened glass),
1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|
|
|
|
|||||
