On Sale Vertical Guide Rail Elevators Hydraulic Freight Elevator

Brief introductions

Hydraulic Guide Rail Cargo lift is mainly applied to cargo transportation up and down between different working floors, it is the best option for places with stereo garage, or two to three-stories underground garage where pits are not allowed, or difficult narrow spaces such as the top height can ’ t meet the required height. As our cargo lift minimum height is very low, which is suitable for vertical transportation with no lifting point need on top for industrial areas with large capacity, high floor height, and grounds with no pits.

Hydraulic guide rail cargo lift has various working types, including single column, double column, four-column, Unilateral, Bilateral, and multilateral delivery. It makes easy and low-cost floor cargo transportation possible with steady movements, simple operation, and mufti-protection for hydraulic and batteries.

Customers can choose different configurations according to different requirements for installation environment and operation conditions for the most effective using.

Product picture

Key parameter:

1. Model: HIDL

2. Load capacity: 3000KG

3. Lifting height: 8800MM

4. Platform size: 2 2 00* 2000MM

5. Overall dimension: 2 2 00* 2600MM

6. Minimum height: 85 MM

7. Loading and unloading direction (forth and back, or one direction): B direction

8. Platform guardrail height :2200mm ;

9. Number of floors(including the ground) : 3

Configuration:

1. Motor power: 3.7KW

2. Motor voltage: 380V/50Hz

3. Gear pump: 14ml/r

4. Panel-frame material :80*50*5 MM /80*40*3MM rectangular tube

5. platform panel material: 4MM checkered plate

6. Stand column: 12# Joist Steel (I-Beam)

7. Number of cylinders :2

8. Cylinder tube: 70* 85MM fine drawn tube

9. Plunger lever : 60MM Hard chrome plated rod

10. Platform guardrail material :80* 50 * 5MM rectangular, 2 5 * 2 square tube

11. Lifting platform frame material: 8# Channel steel

12. Lifting chain: LH1044

13. Lifting form: Self-locking correlation

14.M height: 2200MM

15.Peripheral frame material: 25*2MM square tube

(Peripheral guardrail is optional configuration, there are two options for guardrail: simple guardrail (see pic. 1-1) and Full guardrail (pic 2-1)

control cabinet brands :

Transformer: Delixi

Contactor: Schneider

Travel switch: CNTD

Ground slope ( equipped where there is no pit ) :

Slope length: 630M M

Slope width: 2000MM

Slope top height :85MM

Quantity :1 piece

Requirement for floor opening size:

Door opening length: 2 3 00MM

Door opening width: 2700MM

Requirements for pit size:

Opening size (length) :2300MM

Opening size (width) :2700MM

Pit depth :100MM

Remark: The surrounding and bottom cement concrete thickness of the pit is : 200MM

Power input requirement:

Please equip 380V 3-phase power input line (each line no less than 6 square meters) and relevant switch at the control cabinet position, from where the lifting of cargo lift should be observed, and the distance from control cabinet to cargo lift should not exceed 5 meters.

Schematic diagram:

Details :

Standard fittings & Optional accessories:

Product case:

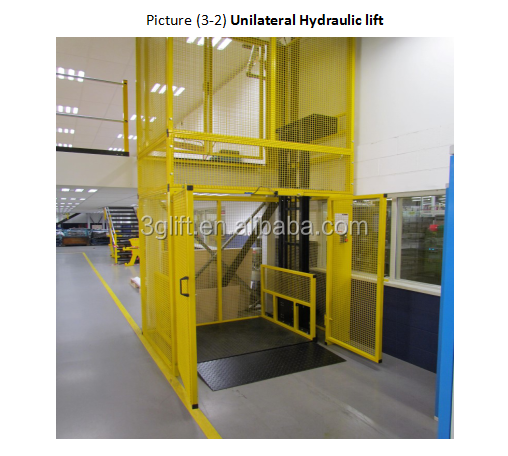

Product assembly (Unilateral Hydraulic lift)

Product Packaging and Delivery

Customized:

• Custom sizes and capacities can be designed for your specific needs .

• Optional European/American Standard Lifting Motor: AC 110-220V / 50-60Hz,1-Phase.
