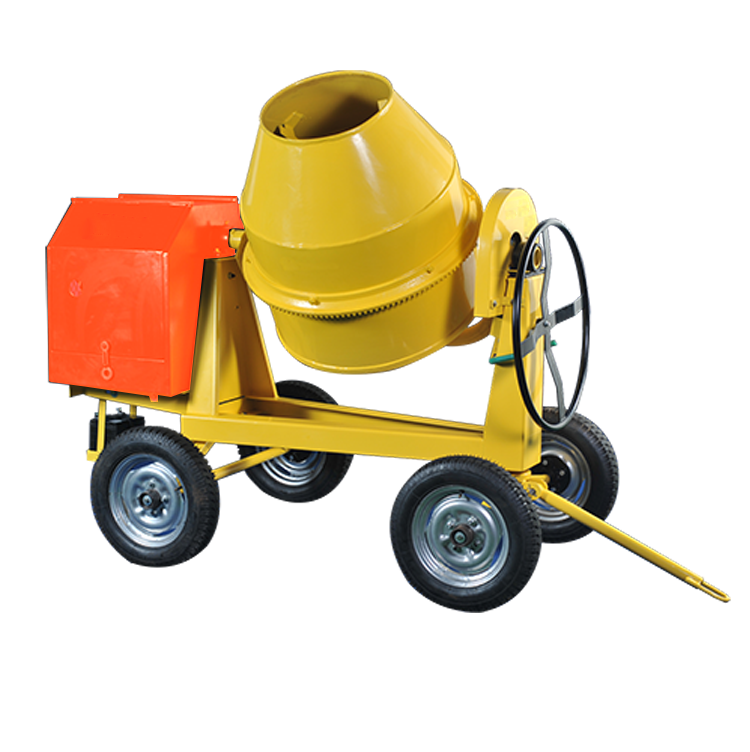

Manual tilt drum mixer portable concrete mixer

Manual tilt drum mixer portable concrete mixer

FOB Reference Price: Get Latest Price

≥1 Sets

US $2100

≥3 Sets

US $2000

≥5 Sets

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: minggejixie

Motor Power:: 10HP

Charging Capacity:: 400L

Reclaiming capacity:: 500L

Speed of Mixing Drum:: 20-25 rpm

Water Supply Mode:: By Chain

Working Cycle Period:: 72

Discharge Way:: Manual

Outline Dimension:: 2100*1200*1700mm

Marketing Type:: New Product 2021

Core Components:: Other

Weight (KG):: 330 kg

Model:: MG-500

Power:: 10hp

Drum capacity:: 500L

MIxing capacity:: 400L

productivity:: 6-8m³/h

Bags of cement per batch:: 1.5 /50kg

Drum rotation speed:: 20-25rpm

Mixing Drum Size:: 950*900mm

total weight:: 330kg

packing size(L*W*H):: 2060*1060*1250mm

Quick Details

Mixing Power:: Other

Productivity:: 10M³/H

Place of Origin:: Hebei, China

Brand Name:: minggejixie

Motor Power:: 10HP

Charging Capacity:: 400L

Reclaiming capacity:: 500L

Speed of Mixing Drum:: 20-25 rpm

Water Supply Mode:: By Chain

Working Cycle Period:: 72

Discharge Way:: Manual

Outline Dimension:: 2100*1200*1700mm

Marketing Type:: New Product 2021

Core Components:: Other

Weight (KG):: 330 kg

Model:: MG-500

Power:: 10hp

Drum capacity:: 500L

MIxing capacity:: 400L

productivity:: 6-8m³/h

Bags of cement per batch:: 1.5 /50kg

Drum rotation speed:: 20-25rpm

Mixing Drum Size:: 950*900mm

total weight:: 330kg

packing size(L*W*H):: 2060*1060*1250mm

Products Description

Specification

Model	MG-500
Power	10hp
Mixing Power	4KW
Drum capacity	500L
MIxing capacity	400L
productivity	6-8m³/h
Bags of cement per batch	1.5 Bag cement
Drum rotation speed	20-25rpm
Mixing Drum Size	φ950*900mm
total weight	330kg
packing size(LWH)	206010601250mm

concrete mixer
1. Mobile Portable Cement Concrete Mixer adds a water pump for water circulation between water tank of the engine and the
radiator, which keeps the engine water temperature to be stable.
2. To remove the air sucking point from the back to the front is able to avoid sucking the dust. It will be good to prolong the
service life of the engine.
3. It has the advantages of compact structure, higher reliability, mixing evenly, big capacity, easy operation, easily movable
between sites, etc. The reverse drum concrete mixing machine is widely used in building site, road and bridge project, and many
other construction sites.

WeChat/WhatsApp: +8618731905072

Mobile Portable Cement Concrete Mixer can turn over 360 degree at both sides when it works.

The drum revolves for mixing and
reverses for discharging. .

Our Company

1:Packing in special plastic bags 2:Fixed in plastic bags to prevent it from falling off. 3:Seal with wooden box

FAQ

1.How long of the delivery time?

It takes about 15 working days to delivery the secondary structure column pump machine

2.what isthe warranty time?

1 years
3.Do you have agent ?
We are looking for agent in every country, if you have interesting, feel free tocontact us
4.How can we use the machine?

we will send the english user manual and video with the machine, if not enough, we can teach you online.
5.What is the MOQ:
1 set
6.What is the payment term?
30% deposit T/T , balance pay against copy of B/L if CIF or CFR. 50% deposit T/T, balanced pay off when we finish the production.
