Quick Details
-
Rolling thinckness:
-
0.7-1.2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YTSING
-
Voltage:
-
customize
-
Dimension(L*W*H):
-
7.7*0.8*1.5m
-
Weight:
-
6500 kg
-
Feeding width:
-
400-600mm
-
Product name:
-

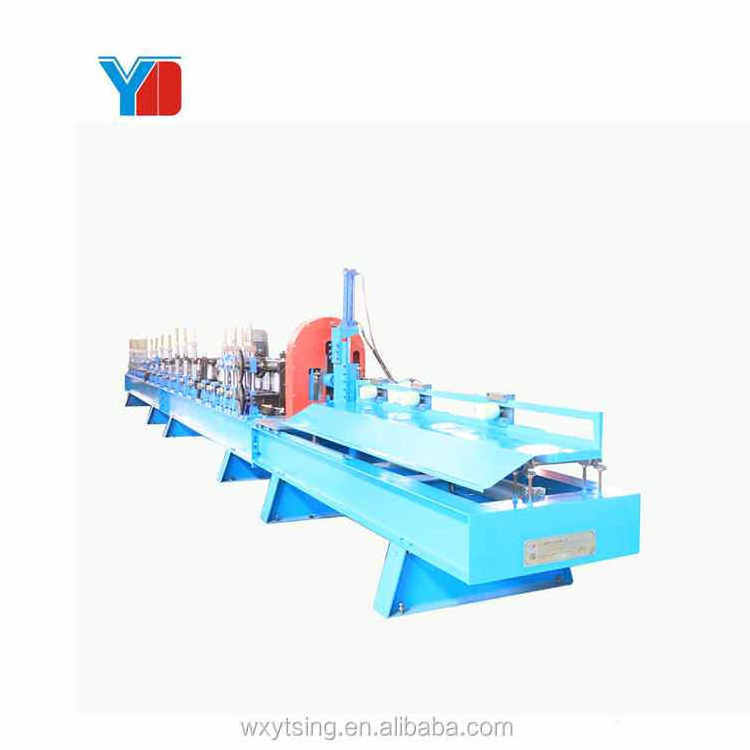

Gutter Roll Forming Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control System:
-
PLC(Siemens Controller)
-
Working Stations:
-
20 working stations
-
Roller Material:
-
GCr15, double machining
-
Shaft Diameter:
-
76mm
-
Chrome:
-
0.03 hard chrome
-
Cutter Material:
-
Cr12, MOV, HRC 58-62
-
Cutting System:
-
Hydraulic (80mm oil cylinder)
-
Structure:
-
Column
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15-20m/min
-
Rolling thinckness:
-
0.7-1.2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YTSING
-
Voltage:
-
customize
-
Dimension(L*W*H):
-
7.7*0.8*1.5m
-
Weight:
-
6500 kg
-
Feeding width:
-
400-600mm
-
Product name:
-
Gutter Roll Forming Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control System:
-
PLC(Siemens Controller)
-
Working Stations:
-
20 working stations
-
Roller Material:
-
GCr15, double machining
-
Shaft Diameter:
-
76mm
-
Chrome:
-
0.03 hard chrome
-
Cutter Material:
-
Cr12, MOV, HRC 58-62
-
Cutting System:
-
Hydraulic (80mm oil cylinder)
-
Structure:
-
Column
HIGH DUTY STRUCTURE
The sturcture we use for this machine has the higher duty mechanical behavior;
With protective net;
ROLLERS
The rollers processing by twice CNC machining and quenched, HRC 58-62;
CUTTING AND NOTCHING STATION
To cut length and notch;
Mold material is CR12 MOV;
FAMOUS BRAND PLC
1. PLC controller -- Siemens
2. Transducer -- Yaskawa
3. Encoder -- KOYO
4. Other electronic component- Schneider
Related Products
Downspout pipe roll forming machine
Door frame roll forming machine
Shutter slat roll forming machine
More than 10 year working life
Our machine can steady running at least 10 years.
Based on this situation, you could have stable productivity and avoid from fixing.
More individal service
If you have requrest of your using problem, like running space, operation program language. We can do better.
Better after-sale service
Life long response within 12 hours , while you have question of running machine,
shaft material in our factory - YTSING
We never use a piece of hollow shaft in the manufacture production history
hollow shaft - poor quality competitor
Hollow shaft to make the material costing much less and the machine force durable less
the roller made by fresh material - YTSING
The roller material is from one piece of whole fresh material, which the rollers is strong on force durable
the roller made by scrap material - poor quality competitor
The less costing machine, rollers always made from second treatment scrap material
good connection on frame - YTSING
We try to make every details better on the machine design and produce according to exactly
lousy connection with welding - poor quality competitor
The machine produce not based on the design diagram, and it needs cut holes on frame to fit sometimes
more YTSING roll forming machine quality
1. YTSING to control the machine processing precision in every details, including the milling level standard, shaft diameter precision and roller & loops processing. To make sure the machine performance better on working;
2. To choose the good control system which is easy to operate, and sensitive on start & stop to make sure the accuracy;
3. YTSING roll forming machine could running more than 10 years and poor quality competitor machine can running only 1-2 years
example: a steel stud roll forming machine working for customer in Phillippine, non-stop cutting system working 7*24 hours from 2014 till now.
1. Are you manufacturer or trading company?
We are manufacturer for 15 years
2. What is the delivery time?
For standard machine, delivery time is usually 60-70 working days.
3. What is your payment term?
30% TT deposit paid in advance, 70% balance paid before shipping.
4. How can I evaluate your company.
1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.
2-We have CE certificate, and our factory has been inspected by TÜV , SGS, and Bureau Veritas. Please contact us to get the certificate document if you need.
5. How can I get to your factory.
We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
