Outdoor armoured fiber optic cable GYTA53
-
Core Number:
-
24 core or per your request
-
Fiber Type:
-
G652D Single mode or as your request
-
Armored:
-
Steel Tape
-
Cable Sheath:
-
Double Jacket
-
Inner Sheath:
-
PE
-
Outer Sheath:
-
PE
-
Installation:
-
Direct Buried
Quick Details
-
Brand Name:
-
Wanbao
-
Model Number:
-
GYTA53
-
Place of Origin:
-
Shanghai, China
-
Item:
-
Outdoor armoured fiber optic cable GYTA53
-
Core Number:
-
24 core or per your request
-
Fiber Type:
-
G652D Single mode or as your request
-
Armored:
-
Steel Tape
-
Cable Sheath:
-
Double Jacket
-
Inner Sheath:
-
PE
-
Outer Sheath:
-
PE
-
Installation:
-
Direct Buried

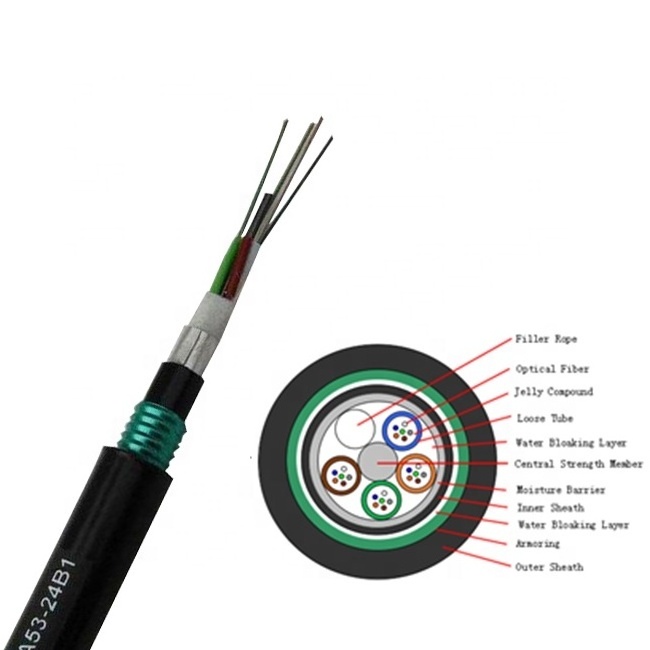

GYTA53 underground double sheath double armored 24 core optical fiber cable
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to
protect it from water ingress.
protect it from water ingress.
Then the cable core is covered with a thin PE inner sheath.
After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Feature
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---APL moisture barrier
--- PSP enhancing moisture-proof
---Water-blocking material
---Loose tube filling compound
---100% cable core filling
---APL moisture barrier
--- PSP enhancing moisture-proof
---Water-blocking material
Specification
|
No. of cable
|
|
|
12
|
24
|
48
|
||||
|
Fiber Model
|
|
|
G.652D
|
|
|
||||
|
Design
(StrengthMember+Tube&Filler) |
|
|
1+5
|
|
|
||||
|
Central Strength Member
|
|
Material
|
Steel Wire
|
|
|
||||
|
|
|
Diameter（±0.5）mm
|
1.4
|
|
|
||||
|
Loose Tube
|
|
Material
|
PBT
|
|
|
||||
|
|
|
Diameter（±0.06）mm
|
1.72
|
1.72
|
2.0
|
||||
|
|
|
Thickness（±0.03）mm
|
0.30
|
0.30
|
0.32
|
||||
|
|
|
The Max.Core NO./Tube
|
6
|
6
|
12
|
||||
|
Filler Rope
|
|
Material
|
LDPE
|
|
|
||||
|
|
|
Diameter（±0.06）mm
|
1.7
|
1.7
|
2.0
|
||||
|
|
|
NO.
|
3
|
1
|
1
|
||||
|
Moisture Barrier
|
|
Material
|
Polymer Coated Aluminum Tape
|
|
|
||||
|
|
|
Thickness（±0.03）mm
|
0.20
|
|
|
||||
|
Inner
Sheath |
|
Material
|
PE
|
|
|
||||
|
|
|
Thickness（±0.2）mm
|
0.9
|
|
|
||||
|
Armoring
|
|
Material
|
Polymer Coated Steel Tape
|
|
|
||||
|
|
|
Thickness（±0.2）mm
|
0.22
|
|
|
||||
|
Water Bloaking Layer
|
|
Material
|
Filling Compound
|
|
|
||||
|
Outer Sheath
|
|
Material
|
PE
|
|
|
||||
|
|
|
Thickness（±0.2）mm
|
1.8
|
|
|
||||
|
Cable Diameter（±0.5）mm
|
|
|
12.5
|
12.5
|
13.1
|
||||
|
Cable Wetght（±10）kg/km
|
|
|
152
|
167
|
167
|
||||
|
Attenuation
|
1310nm
|
|
0.35dB/ km
|
|
|
||||
|
|
1550nm
|
|
0.21dB/ km
|
|
|
||||
|
Min. bending radius
|
Without Tension
|
|
12.5×Cable-φ
|
|
|
||||
|
|
Under Maximum Tension
|
|
25.0×Cable-φ
|
|
|
||||
|
Temperature range
（℃） |
Installation
|
|
-20~+60
|
|
|
||||
|
|
Transport&Storage
|
|
-40~+70
|
|
|
||||
|
|
Operation
|
|
-40~+70
|
|
|
||||
Related Products
Packaging detail:
2km / export wooden drum (your request is available )
Remark：
Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Note：
1. Storage/Operating Temperature：-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
1. Storage/Operating Temperature：-40℃ to +70℃.
2. The minimum value of the PE sheath thickness is 1.6mm.
3. The cable should not store in outdoor environment more than 6 months in order to keep the cable reel good st
This data sheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.
