Quick Details
-
Brand Name:
-
TL/OEM
-
Model Number:
-
G100
-
Name:
-
G100 alloy steel Short Link black Lifting chain
-
Material:
-
Alloy Steel
-
Grade:
-
G100
-
Size:
-
Standard Size
-
Surface:
-
Black/galvanized/Self-Color
-
Logo:
-
Available
-
Type:
-
Short
-
Application:
-
Load Lifting
-
Package:
-
Drum/pallet
-
Port:
-
Ningbo or Shanghai
Quick Details
-
Finish:
-
ZINC, PAINT
-
Structure:
-
Welded Chain
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TL/OEM
-
Model Number:
-
G100
-
Name:
-
G100 alloy steel Short Link black Lifting chain
-
Material:
-
Alloy Steel
-
Grade:
-
G100
-
Size:
-
Standard Size
-
Surface:
-
Black/galvanized/Self-Color
-
Logo:
-
Available
-
Type:
-
Short
-
Application:
-
Load Lifting
-
Package:
-
Drum/pallet
-
Port:
-
Ningbo or Shanghai

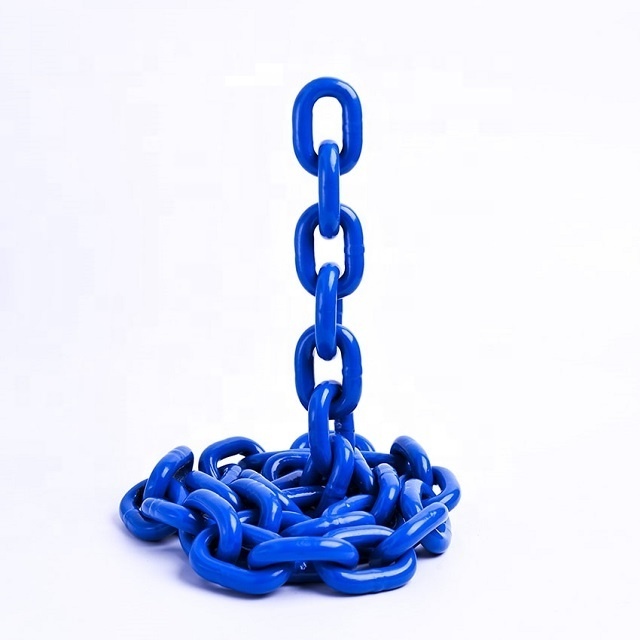

G100 alloy steel Short Link blue finish Lifting chain
Product Description
Grade: G100
Material:20MN2, 25MNV
Standard:EN818-2
Surface treatment: Blue finish
Marking:G100 or customized
| Size(mm) | WLL/T | BL/T | d(mm) | p(mm) | W1(mm)min | W2(mm)max |
| 6 | 1.4 | 5.6 | 6±0.24 | 18±0.5 | 7.8 | 22.2 |
| 7 | 1.9 | 7.6 | 7±0.28 | 21±0.6 | 9.1 | 25.9 |
| 8 | 2.5 | 10 | 8±0.32 | 24±0.7 | 10.4 | 29.6 |
| 10 | 4 | 16 | 10±0.4 | 30±0.9 | 13 | 37 |
| 13 | 6.7 | 26.8 | 13±0.52 | 39±1.2 | 16.9 | 48.1 |
| 16 | 10 | 40 | 16±0.64 | 48±1.4 | 20.8 | 59.2 |
| 18 | 12.5 | 50 | 18±0.9 | 54±1.6 | 23.4 | 66.6 |
| 20 | 15.63 | 62.52 | 20±1 | 60±1.8 | 26 | 74 |
Package
We also supply various kinds of chains, commercial chains, high tensile chains or as you required.
| Welded Link Chain: | Ordinary Mild Steel Link Chain,USA Standard Chain with Hooks, |
| ASTM80 Standard Link Chain,NACM90 Standard Link Chain,NACM96 Standard Link Chain, | |
| Australian Standard Link Chain,DIN5685A/C Short/Long Link Chain,DIN763 Link Chain,DIN764 Link Chain,DIN766 Link Chain, | |
| Norwegian Standard Link Chain,Korean Standard Link Chain. | |
| Weldless Chain: | USA Standard Double Loop Chain,DIN5686 Knotted Chain and so on. |
| Stainless Steel Chain: | Japanese/DIN766/DIN5685A/DIN763(DIN5685 C) /Korean/Australian/ASTM80/NACM90 Standard or others. |
| High tensile chains: | Lifting chain,Lashing chain,chains for ship,fishing chain,three-link chain for coal transfer,transport chain…… |
| Material: | carbon steel,alloy steel,high-quality alloy steel,stainless steel |
| Surface: | self-color, polishing,blackened,pained,plastic coating,hot-dipped galvanized,electro galvanized or as you required. |
| Grade: | G30,G43,G70,G80,C100 |
| Manufacture Standard: | ISO,DIN,BS,JIS,ASTM |
| We can also make the non-standard chain according to your requirements. | |
Certifications
We test each order three steps.
1. Material test before production.
2. Random test during production progress
3. Test finished products before shipment.
4. Test report can be provided.
WORLDWIDE CUSTOMERS COMMENTS & FEEDBAC
K
Here are some of the comments from our worldwide customers.
You can check all the comments at our company profile.
Please visit www.chinatoplifting.en.alibaba.com
click " Company profile, then choose " Rating&Reviews"
Then you can see all the comments from our clients.
{ please note: all our customer comments are real, NOT FAKE.
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]
