Quick Details
-
Brand Name:
-
Harwell
-
Model Number:
-
HW-Firm-24U/F
-
External Size:
-
600W*1200+300H*600D mm
-
Color:
-
Custom
-
Application:
-
Solar Systems ,System Integration ,Network Telecommincation etc.
-
Material:
-
Cold Rolled Steel
-
Thickness:
-
1.2mm
-
Size:
-
600W*1500H*600D mm
-
Certificate:
-
CE, ROHS, ISO,SGS
-
Environment:
-
All-weather
-
Surface treatment:
-
Powder Painting
-
Waterproof level:
-
IP55
Quick Details
-
Protection Level:
-
IP55
-
Type:
-
Electrical Distribution Cabinet
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Harwell
-
Model Number:
-
HW-Firm-24U/F
-
External Size:
-
600W*1200+300H*600D mm
-
Color:
-
Custom
-
Application:
-
Solar Systems ,System Integration ,Network Telecommincation etc.
-
Material:
-
Cold Rolled Steel
-
Thickness:
-
1.2mm
-
Size:
-
600W*1500H*600D mm
-
Certificate:
-
CE, ROHS, ISO,SGS
-
Environment:
-
All-weather
-
Surface treatment:
-
Powder Painting
-
Waterproof level:
-
IP55
|
Standard Parameters
|
|
|
|
|||
|
Brand
|
HARWELL
|
Thickness
|
1.5
|
|||
|
Series
|
Firm
|
Material
|
SECC+SUS
|
|||
|
Name
|
Outdoor Enclosure
|
Color
|
Light grey+grey
|
|||
|
Model
|
HW-Firm-24U/F
|
Protection Level
|
IP55
|
|||
|
Patent No.
|
5482258
|
Electrical Install
|
Plate*3
|
|||
|
Overall Size（W*H*D）
|
600*1500*600mm
|
Door
|
2
|
|||
|
Inner Size （W*H*D）
|
24U
|
Inlet Hole
|
Bottom
|
|||
|
Weight
|
77
|
Installation
|
Floor type
|
|||
|
Packing CBM
|
0.717
|
Packing Size （W*H*D）
|
680*1530*680
|
|||
|
Function
|
Junction, Distrubution, Electrical, Battery, Control, Monitoring, Outdoor waterproof Enclosure Box
|
|
|
|||
|
Customizable Parameters
|
|
|
|
|||
|
Thickness
|
0.8mm, 1.0mm, 1.2mm, 2.0mm
|
|
|
|||
|
|
any thickness
|
|
|
|||
|
Material
|
SPCC/Cold Steel, SUS/Stainless Steel
|
|
|
|||
|
|
any material
|
|
|
|||
|
Color
|
White, Green
|
|
|
|||
|
|
any color
|
|
|
|||
|
Protection Level
|
IP56, IP66, IP67, IP68
|
|
|
|||
|
|
any IP or Nema level
|
|
|
|||
|
Electrical Install
|
Quick release plate, Double-swing door, Drawer structure
|
|
|
|||
|
|
any custom structure
|
|
|
|||
|
More Custom
|
Surface printing design
|
|
|
|||
|
|
Industrial appearance design
|
|
|
|||
|
|
Structure design
|
|
|
|||
|
|
Whole system design
|
|
|
|||

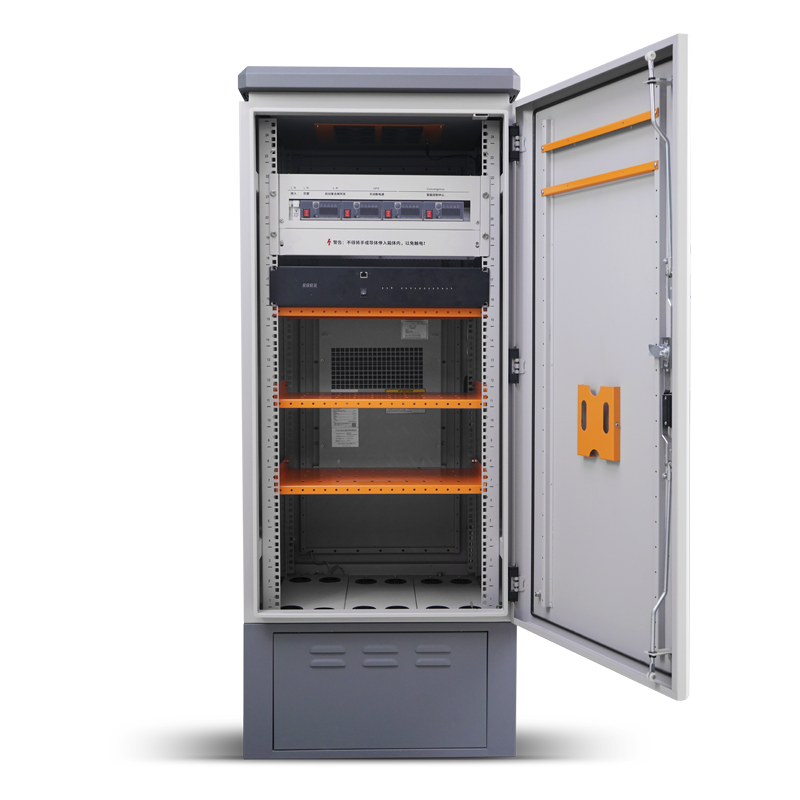

Harwell Firm-24U
Solid as Rock
Flexible as Pebble
Rainproof
Ventilation
Heat Dissipation
Anti-corrosion
Lightning Protection
Dustproof
Firm Structure
Modular Installation
Waterproof Anti Acid Rain High Quality
IP55 Default Can be customized to be IP68
45° Water Guide for Complete Water Proof
45° Water Guide design combines with polyester strip between cabinet and door. 100% sealed for complete water proof.
High Effective Heat Dissipation Airduct Design
Physical Cycle Efficiency Heat Dissipation
① Main air cool down the equipment
② Compressed air cavity to isolte the sunshine heat from main cabinet
③ The air brings the heat from sunshine
④ The air cools down the surface of the cabinet
Fan Appointment
Against Humidity
Sedimentation
Humidity Dissipation Based On FAN Schedule Technology
The cabinet can be equipped with a temperature and humidity sensor. The fan can be turned on based on the humidity. Moisture can be distributed in time to protect the equipment and improve reliability.
P.S: the fan excludes in the standard configuration, more details please inquiry the sales.
High Quality Precision Manufacture
The overall load-bearing capacity of the cabinet has been optimized, the plane is capable to accept vertically pressed 1000kgs and the shape has no obvious change, which is enough to bear the weight of an elephant.
HARWELL with a high-quality professional team,sophisticated technology and equipment, unique marketing methods and perfect and thoughtful,all-weather after-sales service system,HARWELL won the love of our customers.
Aviation-Grade Process Technology 360° Weather-Resistant Multi-Layer Protective Coating
Covered with HARWELL’S special outdoor weatherproof pure polyester fluorocarbon powder coating. Anti-Acid / gas corrosion,against salty and humid environment,UV-resistant and reflectivity up to 80% , no yellowing and powdering,dustproof,waterproof for outdoor use.
5D Cabinet Long Life Painting
With Italian DURST outdoor special industrial UV curing ink. Covered with high light transmission transparent protective paint. Provide long life of the logo and cabinet painting in outdoor environment.
High-Quality Standard Components
Ensure System Reliability
Thousands of molds developed. Parts with hundreds of tests to achieve high quality and reliability.
Unique Patented Quick Release Structure Abundant Standardized Parts Library
The unique installation plate that supports both horizontal and vertical installation. Nine series of internal structure systems and 1,375 derivative schemes means that you no longer have to worry about the placement of equipment. Arrangement and wiring make the process of making electrical installation will be a easy job.
Patent number: ZL 2017 2 0211504.7
Aluminium Alloy Parts
Aviation Grade T6 Aluminum Alloy Hinge
The door opening and closing is as high as 230 degrees, which is an ideal angle without interfering with installation work.The good conduction performance allows the cabinet body and the door to achieve equipotential connection, forming a complete electromagnetic shielding, and preventing various outdoor electromagnetic pulse surges such as lightning protection ability.
Use High-Strength Outdoor Locks
Strong destructive resistance to prevent clogging and rust Durable and reliable, the exterior is polyamide engine-ering plastic sheath.
Aluminum Alloy Back Beam
The mature connection scheme of the international standard aluminum alloy chute can meet the requirements of wall hanging and pole holding. Ensure integrity and safety.
Strong Compatibility andExpansion Capabilities
Whether it’s a monitor, annunciator, or warning light Display, connectors, etc. Can be perfectly installed.
Muti-industry outdoor equipment cabinet solution More possibility wait you to realize
HARWELL have a whole set of development system Integrate with customer’s whims and ideas to come true the infinite possibility Our mission is strives to continually deepen and develop more products and technologies Enable customers to enjoy the professional services with innovative, efficient, industrialized and standardized HARWELL products are gradually integrating into various industries Our barebone solution paves the way for future device interconnection Through the HARWELL’S barebone to achieve all access equipment in the cabinet, can be monitored the status and controlled.
5D Painting Customization, Showing Modern Style
Fashionable and individual painting design Realistic color rendering Add a sense of beauty to the city Become a beautiful landscape in a modern city Greatly improve product recognition Make your product unique
Appearance
Design
According to the application scene of the product, industry,value, function, etc. do the appearance design
Whole system Design
According to the installation of the site, the type of internal electrical, quantity, wiring routing relationship, do structural design.
