Quick Details
-
Model Number:
-
KCD4-0113-23
-
Mechanical Life:
-
50000 Cycles
-
IP level:
-
IP65
-
Color:
-
Red Yellow Green Blue White
-
Function:
-
ON-OFF-ON
-
Application:
-
Automotive
-
Products name:
-
Rocket Switch
-
Material:
-
PA66/PC
-
Lamp color:
-
White\Orange\Red\Blue\Green
-
Rating:
-
15A, 20A, 30A
-
Pins:
-
6Pins
-
Voltage:
-
3V/6V/12V/24V/110V/220V/250V
-
Size:
-
30x22MM
Quick Details
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
FILN
-
Model Number:
-
KCD4-0113-23
-
Mechanical Life:
-
50000 Cycles
-
IP level:
-
IP65
-
Color:
-
Red Yellow Green Blue White
-
Function:
-
ON-OFF-ON
-
Application:
-
Automotive
-
Products name:
-
Rocket Switch
-
Material:
-
PA66/PC
-
Lamp color:
-
White\Orange\Red\Blue\Green
-
Rating:
-
15A, 20A, 30A
-
Pins:
-
6Pins
-
Voltage:
-
3V/6V/12V/24V/110V/220V/250V
-
Size:
-
30x22MM

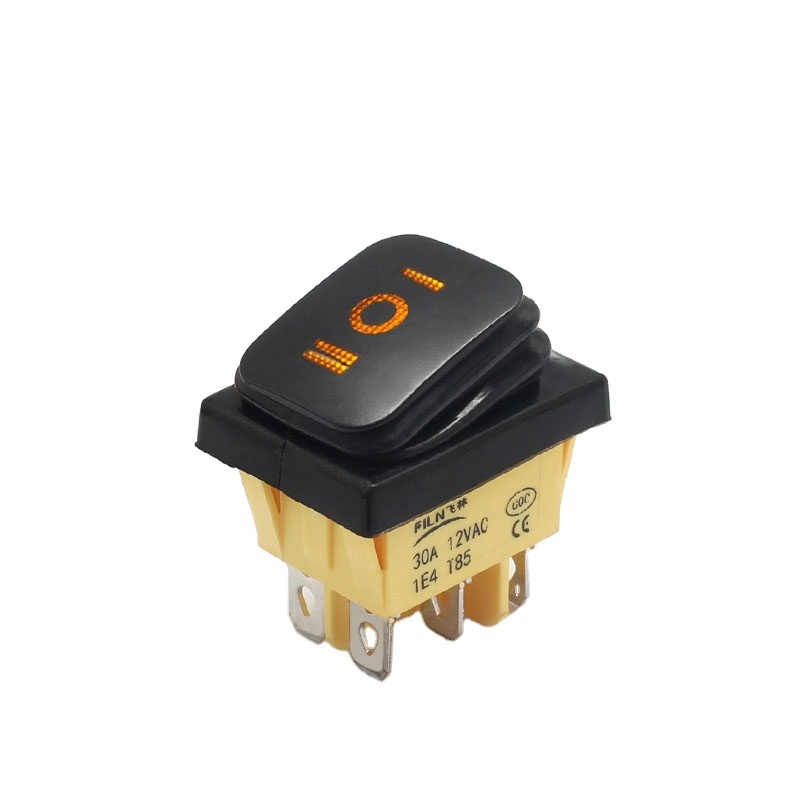

FILN T85 Electrical Rocker Switch On-off-on 3 Position 6 Pin Automotive 30A 110VAC LED illuminated Waterproof Rocker Switch
Product Description
| Model number | KCD4-0113-23 |
| Panel Mount Diameter | 22*30mm |
| Contact Way | solder pin |
| Install Way | Buckle |
| Lamp Type | LED |
| Rated voltage | 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v |
| Lamp Color | Red,white,blue,green,black,yellow |
| Shell Material | brass plated nickel |
| Base Material | PA66 naylon |
| Current | 15A, 20A, 30A |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
