Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HITEC
-
Power:
-
3KW
-
Dimension(L*W*H):
-
3450*2300*1250mm
-
Weight:
-
1500 KG
-
After-sales Service Provided:
-
1625 Auto feeding CNC Oscillating Vibrating Knife
-
Product Name:
-
China cnc oscillating knife cutting
-
Cutting materials:
-
fabric, leather, cardboard, plastic, paper, rubber, EVA foam,
-
Control System:
-
DSP
-
Cutting Thickness:
-
1-100mm
-
Cutting Speed:
-
200-800MM/S according materials
-
Cutting Area:
-
1600*2500mm
-
Transmission:
-
Digital Servo Motor
-
Cutting Tool:
-
Oscillating Cutting Tool
-
Modle:
-
HTO1625
Quick Details
-
Production Capacity:
-
3kw
-
Voltage:
-
380V/220V
-
Application:
-
fabric, leather,paper,foam
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HITEC
-
Power:
-
3KW
-
Dimension(L*W*H):
-
3450*2300*1250mm
-
Weight:
-
1500 KG
-
After-sales Service Provided:
-
1625 Auto feeding CNC Oscillating Vibrating Knife
-
Product Name:
-
China cnc oscillating knife cutting
-
Cutting materials:
-
fabric, leather, cardboard, plastic, paper, rubber, EVA foam,
-
Control System:
-
DSP
-
Cutting Thickness:
-
1-100mm
-
Cutting Speed:
-
200-800MM/S according materials
-
Cutting Area:
-
1600*2500mm
-
Transmission:
-
Digital Servo Motor
-
Cutting Tool:
-
Oscillating Cutting Tool
-
Modle:
-
HTO1625

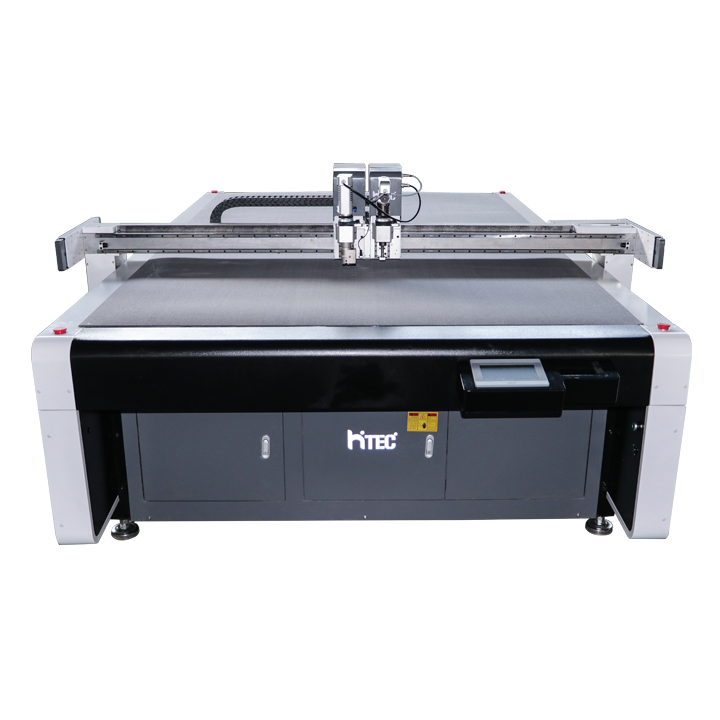

1625 Auto feeding CNC Oscillating Vibrating Knife, Blade Cutting Machine for pu, leather, textile, cardboard
Application Of CNC Oscillating Vibrating Knife
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
Paramaters
|
Brand |
HITEC |
|
Model of cutting machine |
HTO-1625 CNC Oscillating Cutter Machine |
|
Effective working area |
1600mm×2500mm |
|
Cutting speed |
0-1200mm/s |
|
Cutting thickness |
0-25mm ( customized cutting machine can up to 50mm) |
|
Our Advantages |
1.A whole piece aluminum platform
|
|
Method of fixing material |
Divisional vacuum absorption |
|
Knife |
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
|
Pen type |
Common signing pen, Oil pen, ball-point pen, Silver pen |
|
Human Machine Interface (HMI) |
Kinco Touch screen LCD |
|
Machine resolution |
0.01mm |
|
Software resolution |
0.025mm |
|
Interface of transmission |
Network port |
|
Command system |
HP-GL and GP-GL compatible formats |
|
Gearing |
Linear guide and gear rack |
|
Motor |
Japan YASKAWA Servo motor |
|
Machine Working Voltage |
220V/380v ±10,50Hz-60Hz |
|
Air pump power |
9KW-11KW |
|
Energy saving device |
Frequency converter |
|
Safety device |
Automatic laser device |
|
Software system |
Independent research and development CNC software |
|
Price Range |
8000$-22000$ |
How to choose the right 1625 Auto feeding CNC Oscillating Vibrating Knife ?
There are many fiberglass cutting machines in the market at present,many users don't know how to choose it when they buy it,here are some tips for buying a few fiberglass oscillation cutting machine for your reference:
* Cutting precision
The precision of fiberglass oscillation knife cutting machine that every mechanical manufacturer can provide now is about ±0.2mm,there should be a complete procedures for test fiberglass cutting accuracy before delivery.Through testing, we can fully grasp the flatness of the cutting platform and the synchronization control level of the control system.
* Cutting speed
After meet the demand of fiberglass cutting precision then we can talk about with the cutting speed,HITEC cnc fiberglass knife cutting machine adopt Japan Yaskawa servo motor and driver, provide optimum cutting performance and fast, accurate results.
* Automatic layout optimization
Our fiberglass fabric cutting machine operation simple, easy to understand and not complicated,the graphics library should be more flexible and AutoCAD graphics also can be used in typography.
* Easy maintenance
The machine is equipped with I/0 signals and sensors,if the some device of the fiberglass cutting cnc machine meet problem,you see the I/0 signal state on the LED screen,it is more convenience and easy to find fault and replace the parts.
* Saving consumption
Our fiberglass oscillation cutting machine with fast cutting speed anf high cutting precision,save time,save labor and save cost.machine cutting with knife blade,no burn no smoke is good to the environment protection .
* More safe for operation
Equipped with infrared security devices , can effectively protect the safety of the operator.
Details Parts
Multi function replaceable oscillation knife cutting head.
Delta servo motor and drivers for cnc oscillation knife cutting machine (Optional :Japan Yaskawa servo motor)
11kw vacuum Pump,best quality in china
Professional touch screen control system
Samples
Strong Wooden Package
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
