Quick Details
-
Network:
-
wireless
-
COLOR:
-
black or customize
-
Material:
-
Plastic ABS
-
Application:
-
Alarm
-
advantage 1:
-
Wide dynamic range AGC receive
-
advantage 2:
-
High-power infrared transmit
-
Type:
-
Wireless Solar Powered Perimeter Protection Beam Sensor
-
Wireless frequency:
-
315MHz/433MHz
-
Infrared distance:
-
30m/60m/100m
-
Battery:
-
3.7V lithium rechargeable battery
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TG-30, 60, 100W
-
Network:
-
wireless
-
COLOR:
-
black or customize
-
Material:
-
Plastic ABS
-
Application:
-
Alarm
-
advantage 1:
-
Wide dynamic range AGC receive
-
advantage 2:
-
High-power infrared transmit
-
Type:
-
Wireless Solar Powered Perimeter Protection Beam Sensor
-
Wireless frequency:
-
315MHz/433MHz
-
Infrared distance:
-
30m/60m/100m
-
Battery:
-
3.7V lithium rechargeable battery
-
Warranty:
-
2 Years
Name: Wireless Solar Powered Perimeter Protection Beam Sensor
5M/10M/20M/30M/60M/100M
Different between IR Barrier and beam detector and solar beam detector
|
What is different between IR Barrier and Beam detector and Solar Detector |
||||||||
|
Item |
Wire or wireless |
Should be work with alarm panel? |
Power |
Shape |
Beam |
Suitable install place |
Sensitivity |
Defense distance |
|
IR Barrier |
For option |
Yes |
Should be connect with power |
Thin and long |
2/3/4/6/8/10 For option |
Indoor and outdoor More suitable install in door and window |
Good |
Short Max is outdoor 60m |
|
Beam detector |
For option |
Yes |
Should be connect with power |
Fat and short |
2/3/4 For option |
Indoor and outdoor More suitable install in wall |
Best |
Long Max is outdoor 250m |
|
Solar beam detector |
Wireless design |
Yes |
power by battery |
Fat and short |
2 beam |
Outdoor More suitable install in wall |
Best |
Short Max is outdoor 100m |
Information - Wireless Solar Powered Perimeter Protection Beam Sensor
Solar Beam Detector for house security- wireless solar beam sensor
As one of the best high-tech enterprises in Shenzhen, Shenzhen Ansky Technology Co., Ltd. has specialized in designing, manufacturing, marketing and technique maintaining high-tech correspondence electronic products for almost 10 years. TG Series beam detector is one of the best sale products of our company. With the good quality and excellent performance, it has been widely used in the area of security.
Characteristics - Wireless Solar Powered Perimeter Protection Beam Sensor
Solar Beam Detector for house security - wireless solar beam sensor
- Digital fuzzy artificial identification: 4 frequency bands adjustment, use artificial intelligence fuzzy judgment to minimize the false alarm rate.
- WAY IT CHECKS: 2 beams are intercepted simultaneously (The alarm signal will be launched only when the UP and DOWN beams are intercepted at the same time, which will eliminate the mistaken alarm caused by the fallen leaves.)
- The automatic adjustment Sensitivity of AGG LOOP can reach to 200 times, which is hardly to cause faults under the bad weather of rain, fog and snow.
- New optical system: first adopted the wide angle aspheric lens, with small size, but larger effective aperture.
- Unique seal ring design, better effect of waterproof and dust prevention.
- LCD Voltage display, more convenient for accurate beam-focusing.
- Dew and frost countermeasure: use ultrasonic wave structure to prevent dewing and frosting.
Specification - Wireless Solar Powered Perimeter Protection Beam Sensor
Solar Beam Detector for house security - wireless solar beam sensor
|
Model |
Guarding distance |
Beam Spread distance |
Specification |
|
TG-5W |
5m |
1.8m |
1. Wireless infrared beam detector 2. Use of solar power 3. Built-in 3.7V lithium battery 4. Working defense distance5m/10m/20m/30m 5. With anti-white, pest control function 6. Wireless transmission distance of 500 meters open area |
|
TG-10W |
10m |
2.2m |
|
|
TG-30W |
30m |
2.8m |
|
|
TG-60W |
60m |
3.7m |
|
|
TG-100W |
100m |
4.5m |

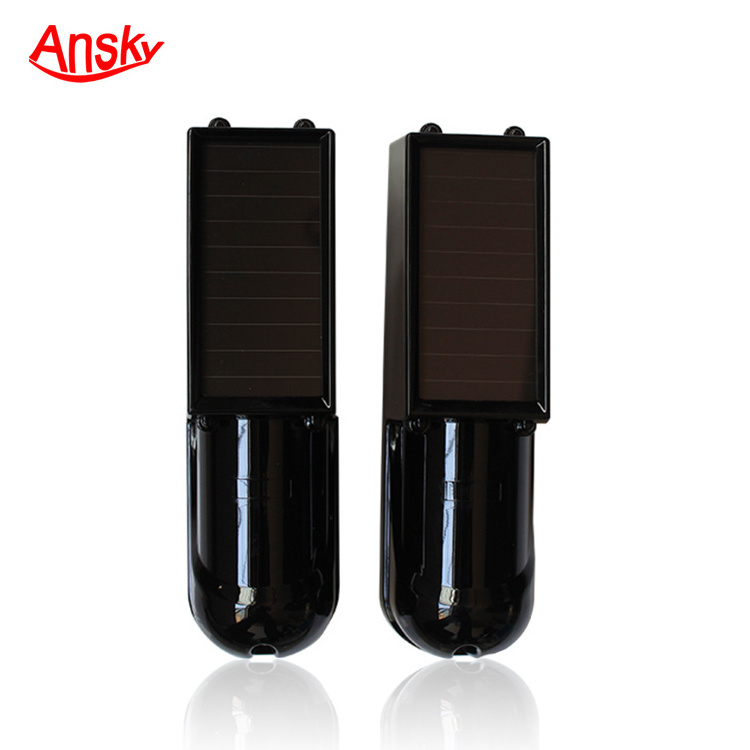

Packag & Product Image - Wireless Solar Powered Perimeter Protection Beam Sensor:
