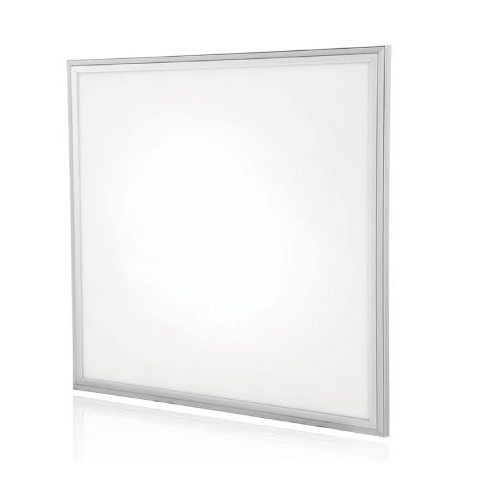

OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP
OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP

OLAM Lighting super slim Panel Lights White LED Flat Panel Light 40W Dimmable 1-10V 3MM PMMA LGP

FOB Reference Price: Get Latest Price
≥1 Pieces
US $25.5
≥100 Pieces
US $25.3
≥1000 Pieces
US $25
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty(Year):
5-Year
Product Weight（kg）:
2.5
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Place of Origin:
Guangdong, China
Brand Name:
Olamlight
Model Number:
OL-PM30W-30120H
Product name:
Ultra-thin LED Panel Lights
Shape:
Square Shape
Size:
300*300/300*600/600*600mm/300*1200/600*1200mm
Beam angle:
120 Degree
Power:
30w 40w 48w 60w
CCT:
3000K/4000K/5000K/6000K
Installation:
Reccessed,Suspension,Surgace mounted
Color:
White Color
Driver:
External
External:
AC 220 ~ 240V

Quick Details

Lamp Luminous Efficiency(lm/w):
100
Application:
Home Office Commercial places
Lamp Body Material:
Aluminum
Warranty(Year):
5-Year
Product Weight（kg）:
2.5
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Place of Origin:
Guangdong, China
Brand Name:
Olamlight
Model Number:
OL-PM30W-30120H
Product name:
Ultra-thin LED Panel Lights
Shape:
Square Shape
Size:
300*300/300*600/600*600mm/300*1200/600*1200mm
Beam angle:
120 Degree
Power:
30w 40w 48w 60w
CCT:
3000K/4000K/5000K/6000K
Installation:
Reccessed,Suspension,Surgace mounted
Color:
White Color
Driver:
External
External:
AC 220 ~ 240V
Product Paramenters
Technical Parameters--PM Series
Model
OL-PM30W-6060H
OL-PM40W-6262H
OL-PM40W-30120H
OL-PM60W-60120H
Dimension
595*595*12mm
620*620*12mm
295*1195*12mm
595*1195*12mm
Power
30W
40W
40W
60W
Luminous flux
3000-3300lm
4000-4400lm
4000-4400lm
6000-6000lm
LED qty(pcs)
336pcs
384pcs
384pcs
480pcs
Input Voltage
AC220-240V
Power factor(P.F.)
>0.95
Luminous Efficiency
100-110lm/W
Main material
3mm PMMA LGP and 6063 (T5) aluminum frame
LED source
Edison SMD 2835, CRI>80Ra,CRl>95Ra for Option
Glare free
UGR<19
Dimming
Non-flicker Non-Dimming, DALI and 1-10V dimming
Installtion
Recessed/Pendant mounted/Ceiling
Lifetime
50000hrs
Warranty time
5 years
UGR<19 LED Panel Lighting Performance:
1. 280-300g Frame material used 7-8 years ago, which makes the Panel Light more durable.
2. PMMA LGP, 3mm thickness, never get yellow.
3. High Brightness 2835smd, over 120lm/W.
4. UGR<19 Diffuser, low glare design.
▶ Features:
● >100lm/W
● 3mm PMMA LGP Never become to yellow ● Aluminum 6063 ● LED Source： SMD2835 80Ra/90Ra for option ● Frame Color: 9016 or 9003 ● UGR<19 ● Lifespan: >50000H ● Warranty 5years

UGR<19,glare low and 6063 T5 Aluminim Housing
Acrylic 3mm PMMA LGP, will never get yellow
Different size for option:
600*600mm, 300*1200mm,
620*620mm, 600*1200mm
Installation Show
A.Recessed frame
B.Surface mounting kits
C.Suspension kits
Application
Hotels, Conference/meeting room, Residential, Schools, Workshop, Warehouse, Storage Lighting etc
Basic commercial lighting
Company information
Who We Are?
--Excellent Supply Chains--
In the past 12 years, we have built a cooperative and efficient supply chain which results in a 7-10 days faster delivery
time than our peers and an 8 hour response time to any of your requests.
--Excellent Supply Chains--
All raw materials conform to international certifications and environmental protection standards.
100% Inspection before shipment.The defect rate of the product used for more than 10 years is less than 0.1%
--Export Service--
More than 12 years of export experience, Serving thousands of customers in over 40 countries.
--Research/Development--
A 5-person R & D team with 15 years of experience in the lighting industry
--Fast Delivery--
3 working days for standard sample order.
15 working days for bulk order.
3 working days for customized products CAD drawing,
7 working days for prototypes.
Product History Schedule.
We are targeting commercial and industrial lighting like LED Triproof Tubular Light, UGR LED Panel light, LED
Batten Light LED Linear Highbay Light etc.
