Quick Details
-
Model Number:
-
RT18Z-32
-
Standard:
-
IEC60269-2-2010/GB13539.1-2008
-
Product Name:
-
RT18Z-32
-
Rated Current In (A):
-
1A-30A
-
OEM:
-
available
-
Rated Work Voltage Ue (V):
-
1000 DC
-
Rated Isolation Voltage Ui (V):
-
1500 DC
-
Rated Short Circuit Breaking Capacity:
-
25 KA
-
Poles:
-
1P
-
Installation:
-
TH-35 Din Rail
-
Certificate:
-
CE RoHS TUV CB IEC SEMKO
Quick Details
-
Breaking Capacity:
-
High
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EBASEE
-
Model Number:
-
RT18Z-32
-
Standard:
-
IEC60269-2-2010/GB13539.1-2008
-
Product Name:
-
RT18Z-32
-
Rated Current In (A):
-
1A-30A
-
OEM:
-
available
-
Rated Work Voltage Ue (V):
-
1000 DC
-
Rated Isolation Voltage Ui (V):
-
1500 DC
-
Rated Short Circuit Breaking Capacity:
-
25 KA
-
Poles:
-
1P
-
Installation:
-
TH-35 Din Rail
-
Certificate:
-
CE RoHS TUV CB IEC SEMKO
Application

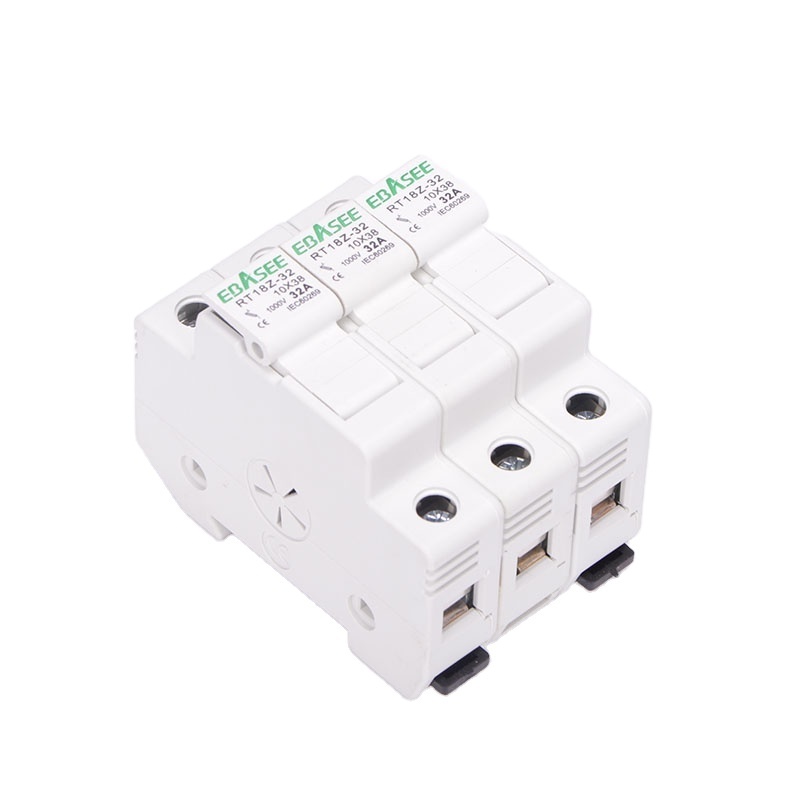

RT18Z series Fuse is mainly used for solar
Photovoltaic power generation in DC junction box, for possible solar photovoltaic battery components and inverter ducts by current feedback circuit overload and short circuit current of the breaker, to protect the solar photovoltaic module board, the fuse is optional for electrical components in any other DC circuit overload and short circuit protection.
Standard
1.GB13539.1-2008(Low voltage fuse part.1: Basic Requirement)
2.GB13539.2-2008(Low voltage fuse part.2:Full-time workers have been using the supplementary requirements
of fuse)
3.IEC60269-1-2006(Low voltage fuse—part.1: General requirements)
4.IEC60269-2-2010(Low voltage—part.2:Designated Personnel use the fuse(Mainly used in the industry of use)
Supplementary requirements)
Applicable Working
1. The ambient maximum temperature does not exceed +900C, the minimum ambient temperature of -400C;
2. Altitude: the height ≤3000m
3. Relative humidity:notexceeding50% at the maximum the ambient temperature of +400C, at low temperature, can allow a higher temperature, For example, at+250C can reach 90%. Due to temperature change occasionally produce condensation special measures should be taken.
4. In the absence of explosion danger of medium, and no enough to corrosive action on metals, and damage the insulation medium gas and conductive dust.
5. Pollution levels: 3
