500Kg/H Industrial Banana Plant Plantain Chips Making Machine Automatic Equipment For Plantain Chips

Product Description

PLANTAIN CHIPS /BANANA CHIPS PRODUCTION LINE

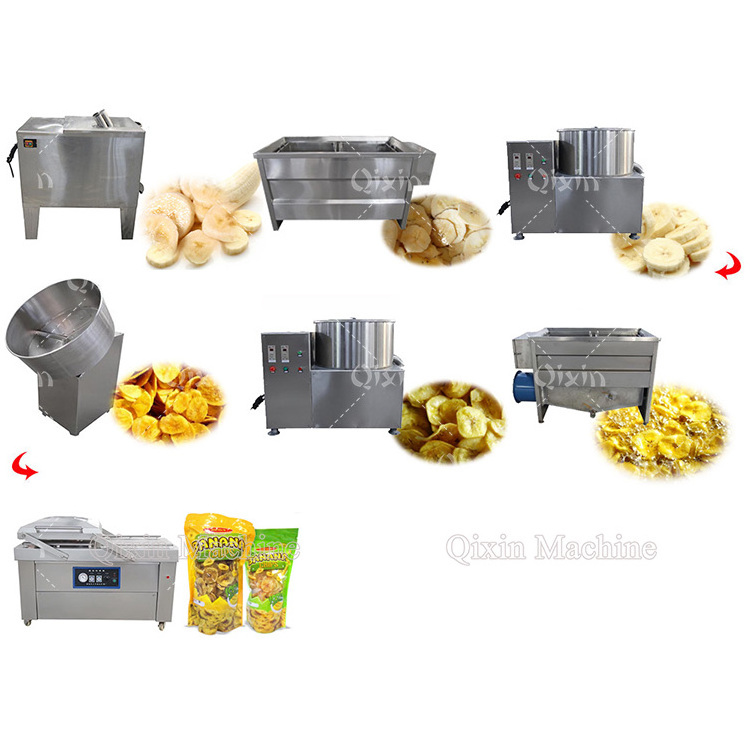

(The pictures in the flow chart are for reference only, just to show the processing procedures, the specific should be subject to the discussion of both parties)

General description of the 500Kg/H Industrial Banana Plant Plantain Chips Making Machine Automatic Equipment For Plantain Chips:

500Kg/H Industrial Banana Plant Plantain Chips Making Machine Automatic Equipment For Plantain Chips commonly includes Banana slicing machine,blanching machine,dewatering machine,frying machine,deoiling machine,flavoring machine and packing machine.

All machines are made of stainless steel,high quality,low energy consumption. The banana chips project is of low investment,big profit return,easy operation and maintenance.

Equipment list of the 500Kg/H Industrial Banana Plant Plantain Chips Making Machine Automatic Equipment For Plantain Chips (output 50kg/h as an example)

Cutting--Blanching(electric)--Dewatering--Frying (electric)--Deoiling--Flavoring--Packing

No.	Name	Model	Qty	Dimensions (mm)
1	Banana chips cutter	QX-QP500	1	570*870*1060
2	Electric blanching machine	QX-PT1000	1	1310*650*700
3	Dewatering machine	QX-TS500	1	940*560*830
4	Electric frying machine	QX-YZ1000	1	1380*620*950
5	De-oiling machine	QX-TY500	1	940*560*830
6	Seasoning machine	QX-BL800	1	1000*800*1380
7	Packaging machine	QX--DZ400/2S	1	1050*650*855

Detailed introduction of each machinery in the line:

1. banana chips cutting machine:

The banana slicer machine is easy to operate, the output is high, the thickness of the slice can be adjusted at will, and the cutting angle can be customized (oblique slice). The cut banana chips have a smooth surface and no broken surface. They are the most advanced fruit and vegetable cutting equipment in China.

The main technical information of the banana slicer:

Power	Voltage	Material	Motor	Size
0.75kw	380v	Stainless steel	Copper wire National standard	570*870*1060mm

2. Blanching machine:

--Function: Inactivate e nzymes that cause browning, maintain the fresh color.

--Automatic temperature control system, uniform water temperature, short boiling time.

--Double-layer insulation and thickened stainless steel material, good rigidity, no pollution, not easy to lose heat. The heat is completely absorbed by the material.

--Application: suitable for the processing and blanching of food, as well as the low temperature sterilization of pickled vegetables, pickles, low-temperature  meat products, etc.

Main technical information:

1. Power: 15kw

2. Voltage: 380v, 50hz

3. Weight: about 50kg

4. S ize(L*W*H): 1 31 0* 65 0* 7 00mm

5. Machine material: stainless  steel

6. Heating type: electric heating

7. Blaching temperature and time:  adjustable

3. Dewatering machine:

The centrifugal dehydrator is equipped with an anti-vibration system, and the equipment will not vibrate during the dehydration process. It uses the principle of centrifugation, is equipped with electromagnetic brakes, digital automatic control, and is made of stainless steel. It is currently the most advanced dehydration equipment for fruits, vegetables and food in China. It is suitable for the dehydration of food and vegetables after washing.

Main technical information:

1. Capacity: about 10kg/batch

2. Power: 0.75kw

3. Voltage: 380v,50hz

4. Weight: about 300kg

5. Size(L*W*H): 940x560x830mm

6. Machine material: stainless steel

7. Working Principle: centrifugal principle

8. Rotating Speed: 1000rpm

9. Processing time: about 60-90s can finish one barral

4. Fryer machine:

Our new series of frying machine a dopts oil-water separation  technology .

Oil and water respectively automatic temperature control, double layer heat preservation. Temperature from 0--260 degrees can be set any at will. The oil slag will sink into the water, which won't be burnt . T his acts as a filter for the oil.

Main technical information:

1. Power: 21kw

2. Weight: about 72kg

3. Size: 1380x620x950mm

5. Deoiling machine:

The machine uses centrifugal principle to remove the oil on the surface of fried food.

Other information is the same with that of No. 3 product: dewatering machine

6. Seasoning machine(flavoring machine):

The disc seasoning machine is not only beautiful in appearance, but also very practical in use .

It can season banana chips, potato chips, French fries, rice noodles, instant noodles, and various puffed foods and spicy foods.

The seasoning is even and uniform without br eaking products and the whole machine is made of stainless steel , so it does not rust and does not pollute the food

Main technical information:

1. Capacity: about 300kg/h

2. Power: 0.75kw

3. Voltage: 380v , 50hz

4. Weight: about 90kg

5. Size(L*W*H): 1000*800*1380mm

6. Machine material: stainless  steel

7. Rotating speed: 20rpm

8. Discharging: automatically discharge from the outlet

7. Vcuum packing machine:

The above machine pictures and information just for reference. Each machine can be replaced according to the specific requirements of the customer.

Besides the semi-automatic automatic banana chips processing equipment,we also have full automatic continuous production line, saving labor, more efficient
