Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KRS-4538ARB
-
use:
-
home appliances, medical device, other industrial device
-
Specification:
-
45x15mm
-
Product name:
-
Custom 4 digit alphanumeric led display module
-
Size:
-
45x38mm
-
Certificate:
-
ROHS, REACH
-
Polarity:
-
common anode
-
Color option:
-
red and blue
-
Life span:
-
Over 50000 Hours
-
Surface color:
-
black or gray
-
Warranty:
-
2 Years
-
Delivery `:
-
3-7 working days for smaples, 7-15 working days for formal order
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
KeRun
-
Color:
-
white and red
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KRS-4538ARB
-
use:
-
home appliances, medical device, other industrial device
-
Specification:
-
45x15mm
-
Product name:
-
Custom 4 digit alphanumeric led display module
-
Size:
-
45x38mm
-
Certificate:
-
ROHS, REACH
-
Polarity:
-
common anode
-
Color option:
-
red and blue
-
Life span:
-
Over 50000 Hours
-
Surface color:
-
black or gray
-
Warranty:
-
2 Years
-
Delivery `:
-
3-7 working days for smaples, 7-15 working days for formal order
Custom 4 digit 14/16 segment alphanumeric led display module
* Features of Custom 4 digit alphanumeric led display module
1. Extreme short light response time, high brightness, low power, e nvironment friendly and energy saving.
2. F or it is universal used, these products can save custom die cost
3. Widely applied in set-top box, temperature controllers, Single ball machine,etc.
* Specifications of Custom 4 digit alphanumeric led display module
| Product Name | Custom 4 digit alphanumeric led display module |
| Part NO. | KRS- 4538ARB |
| Digit number | 4 digit |
| Custom Size | 45*38*13.7 (mm) |
| Emitting color | blue |
| Segment color | white |
| Face color | black |
| Polarity | Common anode |
| Dominant wavelength | 460 nm |
| Luminous intensity | 127~182mcd |
| Forward voltage | 2.8 ~ 3.8 V |
| Reverse voltage | 6V |
| Recommended current | 3 0mA |
| Operating temperature range | - 2 0~+80 ℃ |
| Lead solder temperature | 260 ℃ for 3-5 seconds |
| Life span | Over 50000hours |
| Free Samples | supported |
| OEM&ODM | Support |
| LOGO printing | Support |

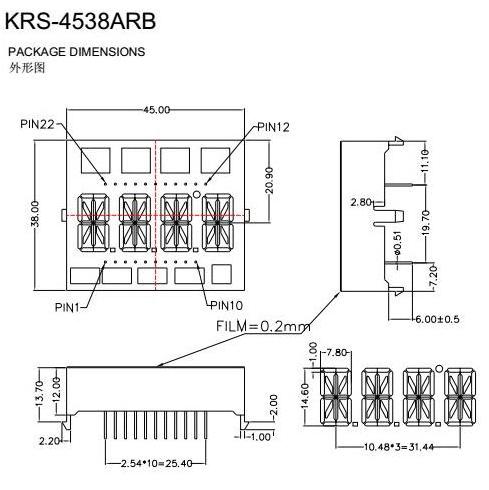

* Dimensions and Internal circuit of 4 Number custom 7 Segment LED Digital Display :
* Products show:
* Other related products:( if any you need, feel free to contact me. )
* Applications:
Widely applied in Temperature Controllers ; Test and measurement instruments ; Home appliance displays;
Automotive and avionic instrumentation; Fuel pump displays; Digital panel meters; S et-top boxes; Electronics displays;
