Quick Details
-
Filling Accuracy:
-
≥ 99.9%
-
Voltage:
-
AC Three-Phase 380V
-
Place of Origin:
-
Hubei China
-
Brand Name:
-
KEFAI
-
Dimension(L*W*H):
-
56*45*45cm
-
Weight:
-
60 KG
-
Usage:
-
Powder Products
-
Product name:
-
Semi Automatic Powder Filling Machine
-
Keywords:
-
Auger Filling Machine
-
Capacity:
-
10-40 Bottles/min
-
Filling range:
-
10-100ml
-
Feature:
-
Low Cost
-
Control:
-
Touch Screen Control+Foot Pedle
-
Material:
-
Stainless Steel 304/316
-
Operation:
-
Semi-automaticn
-
After Warranty Service:
-
1 Year/12 Months
Quick Details
-
Machinery Capacity:
-
500BPH, 1000BPH
-
Packaging Material:
-
Powder Filler
-
Filling Material:
-
Powder
-
Filling Accuracy:
-
≥ 99.9%
-
Voltage:
-
AC Three-Phase 380V
-
Place of Origin:
-
Hubei China
-
Brand Name:
-
KEFAI
-
Dimension(L*W*H):
-
56*45*45cm
-
Weight:
-
60 KG
-
Usage:
-
Powder Products
-
Product name:
-
Semi Automatic Powder Filling Machine
-
Keywords:
-
Auger Filling Machine
-
Capacity:
-
10-40 Bottles/min
-
Filling range:
-
10-100ml
-
Feature:
-
Low Cost
-
Control:
-
Touch Screen Control+Foot Pedle
-
Material:
-
Stainless Steel 304/316
-
Operation:
-
Semi-automaticn
-
After Warranty Service:
-
1 Year/12 Months
Please note！
This machine can only use a screw to fill powder materials, motor control, and no weighing function.
Product Description
Application

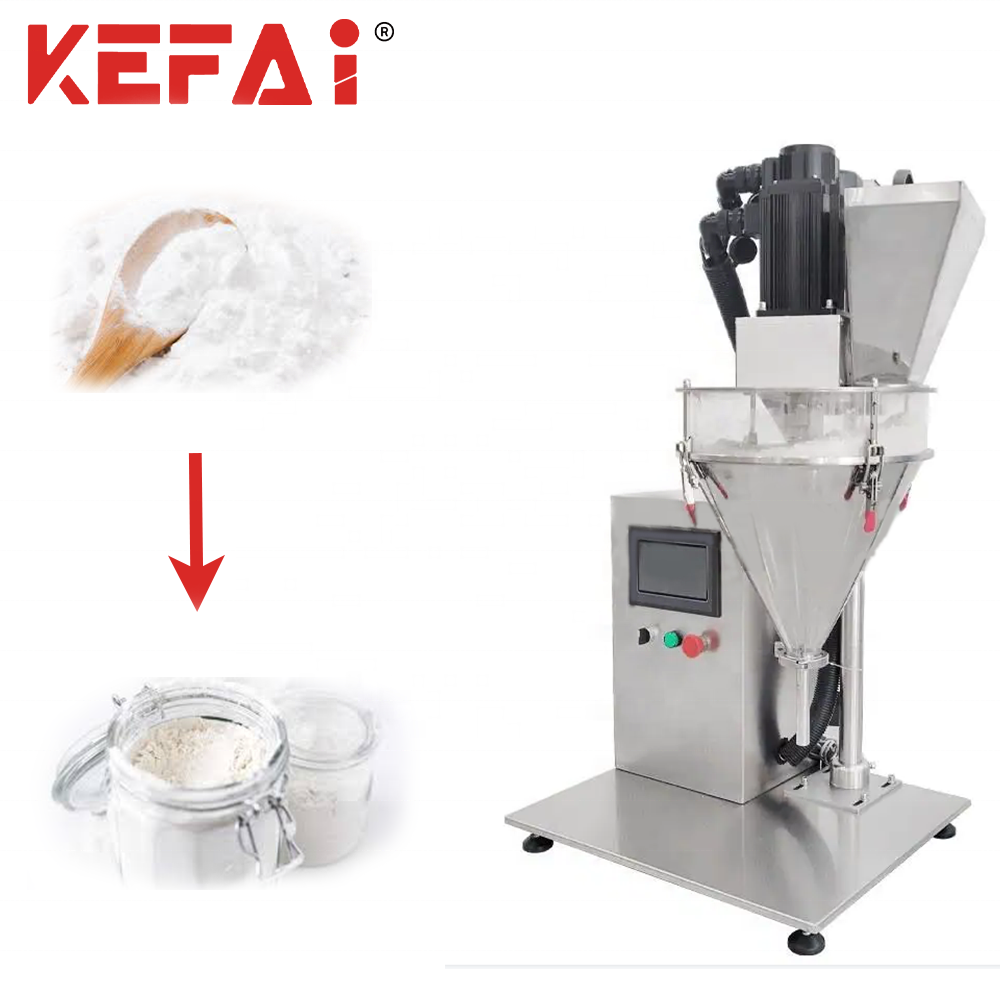

This small auger filling machine is suitable for filling milk powders,flour,fodder into bags or bottles.It is easy to operate and can fill powder accurately.This machine is widely used in food,cosmetic and daily chemical industries.
Features
1. Adopt a stepping motor and electronic auger screw measurement technology, the aircraft is slightly lower cost in comparison with the servo motor, and it is economical and practical.
2. Spiral cutting, light-control technology.
3. Specifications: the same machine within the 0.5-200g adjustment and replacement of the keyboard under different specifications of material spiral continuously adjustable.
4. Scope: There is a certain fluidity of powder materials, containers (bags, cans)unlimited.
5. Materials due to changes in weight and material level of error correction can be automatically tracked.
6. Photoelectric switch control, only manual bagging, bag clean, easy to seal.
7. Screw feeder can be equipped with automatic feeding control.
Specification
|
Machine model
|
KF01-PD 100
|
|
Voltage
|
110/220V
|
|
Machine power
|
0.5KW
|
|
Hopper size
|
About 6L
|
|
Hopper diameter
|
About 320mm
|
|
Filling range
|
0.5-100g
|
|
Filling nozzle size
|
20mm (Can be Customized)
|
|
Filling accuracy
|
±1%
|
|
Filling speed
|
About 20-30 bottles/min
|
|
Machine size
|
About 520*430*950mm
|
|
Machine weight
|
About 59kg
|
|
Package size
|
About 720*610*1030mm
|
|
Package size
|
About 84 kg
|
Packing & Delivery
KEFAI-packing sealing machine usually export package!
