Quick Details
-
Max. Lifting Height:
-
16.8m
-
Span:
-
20.5m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEITE
-
Telescopic arm length:
-
4.7m-16.5m
-
Boom length/time:
-
12.3m/54sec
-
Product name:
-
Spider Crane
-
Walking mode:
-
Hydraulic motor drive
-
Boom length:
-
12.3m
-
Dead weight:
-
8000kg
-
Track size:
-
2600mm long and 400mm wide
-
Optional:
-
Optional torque controller
-
Key words:
-
Mini Spider Crane
-
Name:
-
Mini Spider Crane In Promotions
Quick Details
-
Weight (KG):
-
8000
-
Application:
-
Knuckle Boom Crane: Offshore work
-
Rated Loading Capacity:
-
1.2-12Ton
-
Max. Lifting Height:
-
16.8m
-
Span:
-
20.5m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEITE
-
Telescopic arm length:
-
4.7m-16.5m
-
Boom length/time:
-
12.3m/54sec
-
Product name:
-
Spider Crane
-
Walking mode:
-
Hydraulic motor drive
-
Boom length:
-
12.3m
-
Dead weight:
-
8000kg
-
Track size:
-
2600mm long and 400mm wide
-
Optional:
-
Optional torque controller
-
Key words:
-
Mini Spider Crane
-
Name:
-
Mini Spider Crane In Promotions

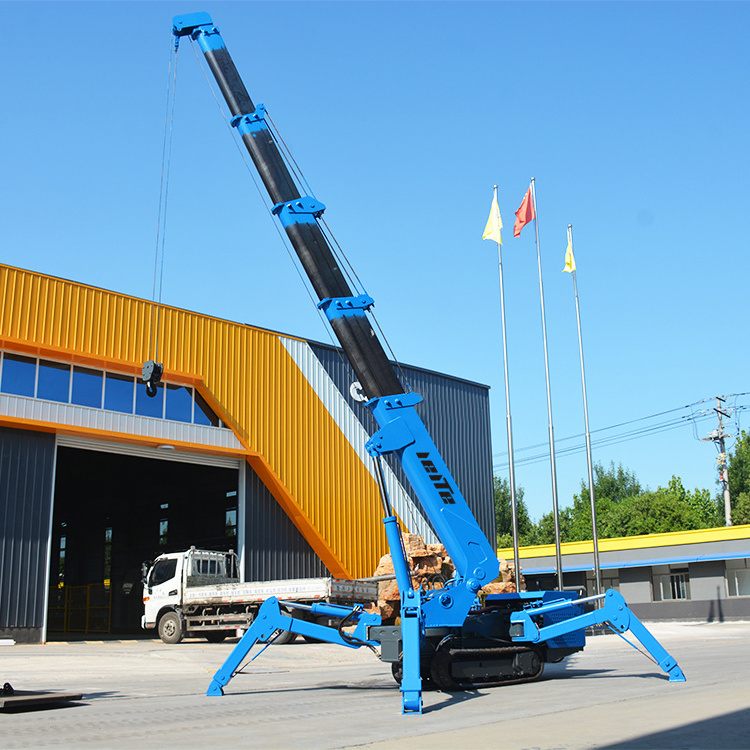

LEITE mini crawler crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of apick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
|
Boom type
|
5-section boom, U-shaped structure
|
|
Boom length/time
|
3.1m-9.2m/20sec
|
|
Boom angle/time
|
0-78°/13sec
|
|
Swing angle/speed
|
0-360 ° (continuous)/60sec
|
|
Outrigger action form
|
Manual screw-out+oil pressure automatic support (two legs)
|
|
Maximum extension (mm)
|
4530 (long) X4370 (rear) X3700 (front)
|
|
Walking mode
|
Hydraulic motor drive, two-speed
|
|
Walking speed
|
0-2.5km/h
|
|
Gradeability
|
25°(36%)
|
|
Lifting speed of hook
|
12m/min (4 ropes)
|
|
Wire rope specification
|
Φ 11mm × 80m
|
|
Telescopic boom type
|
5-section boom, U-shaped structure
|
|
Telescopic arm length
|
4.7m-16.5m
|
|
Boom length/time
|
12.3m/54sec
|
|
Boom angle/time
|
0-78°/13sec
|
|
Swing angle/speed
|
0-360 ° (continuous)/38sec
|
|
Outrigger action form
|
Manual screw-out+hydraulic telescopic+automatic support (two legs)
|
|
Maximum extension (mm)
|
Left and right (7800) front and rear (3600)
|
|
Walking mode
|
Hydraulic motor drive
|
|
Lifting speed of hook
|
12m/min (4 ropes)
|
|
Wire rope specification
|
Φ 11mm × 80m
|
|
Telescopic boom type
|
5-section boom, U-shaped structure
|
|
Telescopic arm length
|
4.7m-16.5m
|
|
Boom length/time
|
12.3m/54sec
|
|
Boom angle/time
|
0-78°/13sec
|
|
Swing angle/speed
|
0-360 ° (continuous)/38sec
|
|
Outrigger action form
|
Manual screw-out+hydraulic telescopic+automatic support (two legs)
|
|
Maximum extension (mm)
|
Left and right (7800) front and rear (3600)
|
|
Walking mode
|
Hydraulic motor drive
|
