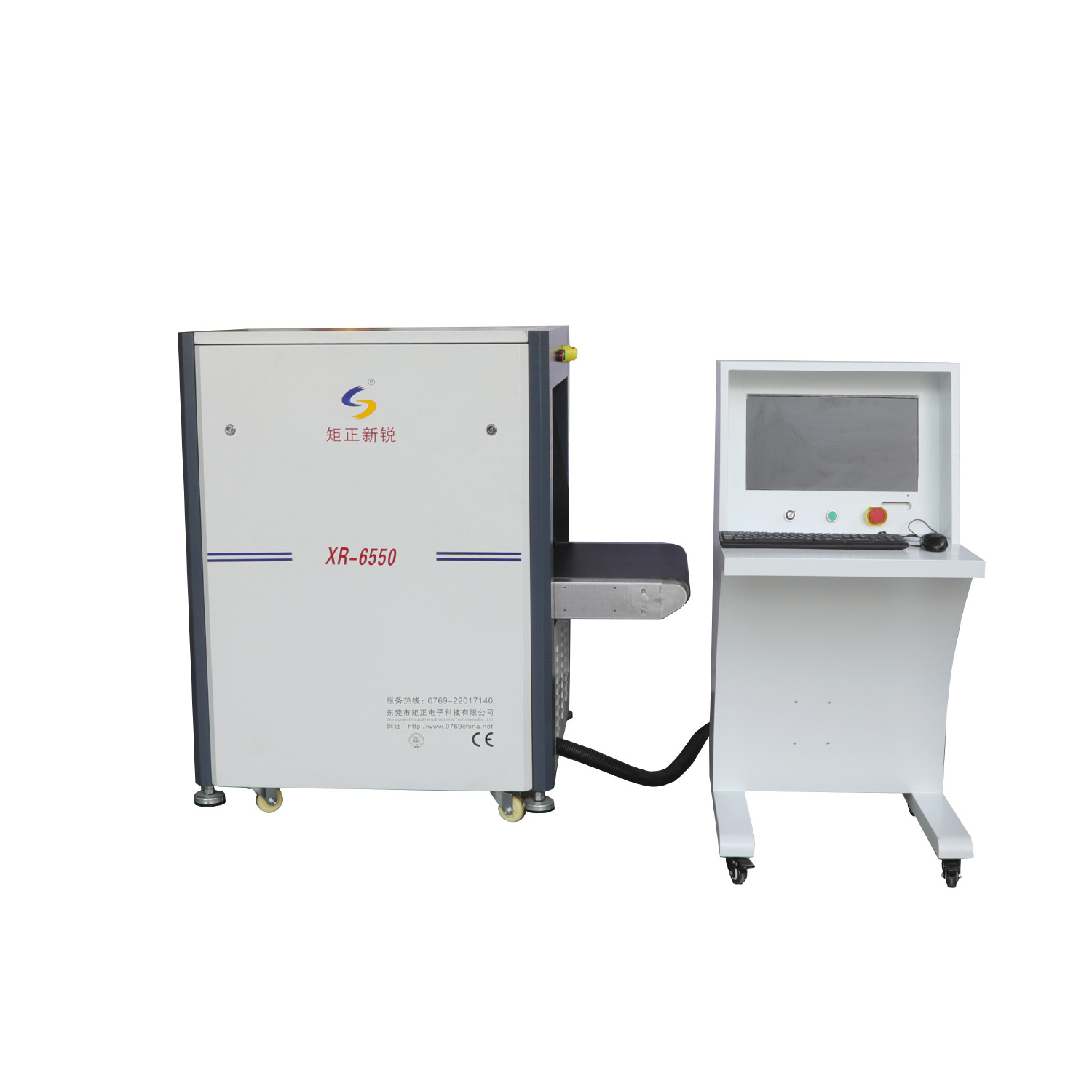

JZ-XR6550 X ray baggage scanner/cargo inspection x-ray machine, x-ray luggage scanner

JZ-XR6550 X ray baggage scanner/cargo inspection x-ray machine, x-ray luggage scanner

FOB Reference Price: Get Latest Price

≥2 Sets

US $6000

≥5 Sets

US $5800

≥10 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Conveyor Speed:: 0.23m/s

Conveyor Max Load:: 170kg

Penetration:: 40mm Steel

Certificate:: CE, ISO, ROSH, FCC

Usage:: Secuity Equipment

Film Safety:: Guarantee ISO1600 Film

Color:: White/siliver

Quality:: Reliable system and clear images

Warranty:: 12 month

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: JZXR

Tunnel Size:: 650(W)*500(H)mm

Conveyor Speed:: 0.23m/s

Conveyor Max Load:: 170kg

Penetration:: 40mm Steel

Certificate:: CE, ISO, ROSH, FCC

Usage:: Secuity Equipment

Film Safety:: Guarantee ISO1600 Film

Color:: White/siliver

Quality:: Reliable system and clear images

Warranty:: 12 month

JZ-XR6550 X ray baggage scanner/cargo inspection x-ray machine, x-ray luggage scanner

Product Description

X-ray use penetrate inspection, can detect the object metal structure, display where is invisible to the naked eye. Used in the factory testing of security products and business units such as: airport, electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package

Specification parameter

Model number	XR-650
Brand	Juzheng Xinrui
Tunnel size	650mm(W)×500mm(H)
Conveyor speed	0.22 m/s
Conveyor rated load	250 kg
Single inspection dosage	< 1.5µGNy
Resolution	Ø 0.0787mm wire
Penetrating power	43mm steel plate
Film safety	For ISO1600
Machinery single inspection dosage	≤1.0μGy/h
Leaking dose	<0.05µGy/h

X-ray generator

Orientation	Vertically Upward
Tube Current	0.4~1.25 MA(adjustable)
Tube Voltage	100~160 KV(adjustable)
Angle	90°
Generator cooling/working periods	Sealed oil bath with forced air/100%

Image performance system

X-ray sensor	L type photo-diode array detector, 12bit
Monitor	High resolution 19inch color lcd display
Color quality	24 bit real colors
Edge enhancement	Object contour edge is more distinct
Super image enhancement	Image detail is more distinct
High penetrate strength display	Increase brightness of dark area in image to display object which is behind high absorbtivity mass distinctly
Low penetrate strength display	Increase contrast of low absorbtivity mass (easy to penetrate) to display it distinctly
Magnifier	Function of partial enlargement
Brightening/dimming	Increase brightness of image/decrease brightness of image
Image recurrence	Display previous twenty images and process any one of them
Image restoration	Restore image to initial status at the time of stopping conveyor
Image storing	Real time store any image and process it in operation status

Operating environment

Working temperature/humidity	0℃~45℃/20%~95% (non-condensing)
Storage temperature/humidity	-20℃~60℃/20%~95% (non-condensing)
Working voltage	220VAC(±10%) 50±3Hz
Power loss	1.0KW(Max)
Noise level	<55dB
Control console	There are 3 strands to connect the control console and host
Has obtained the ISO9001 Quality System approval, ISO14001 Management System Certification, Radiation Safety Permit, Occupational Health Certification and CE Certification.
Original Japanese Hamamatsu Detector, Image Quality and Omron Electrical Components improve the whole quality of machine all-roundly.
