Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Bluetti
-
Model Number:
-
PV420
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
Unfolded:2675*975mm/ Folded:975* 660 * 45 mm
-

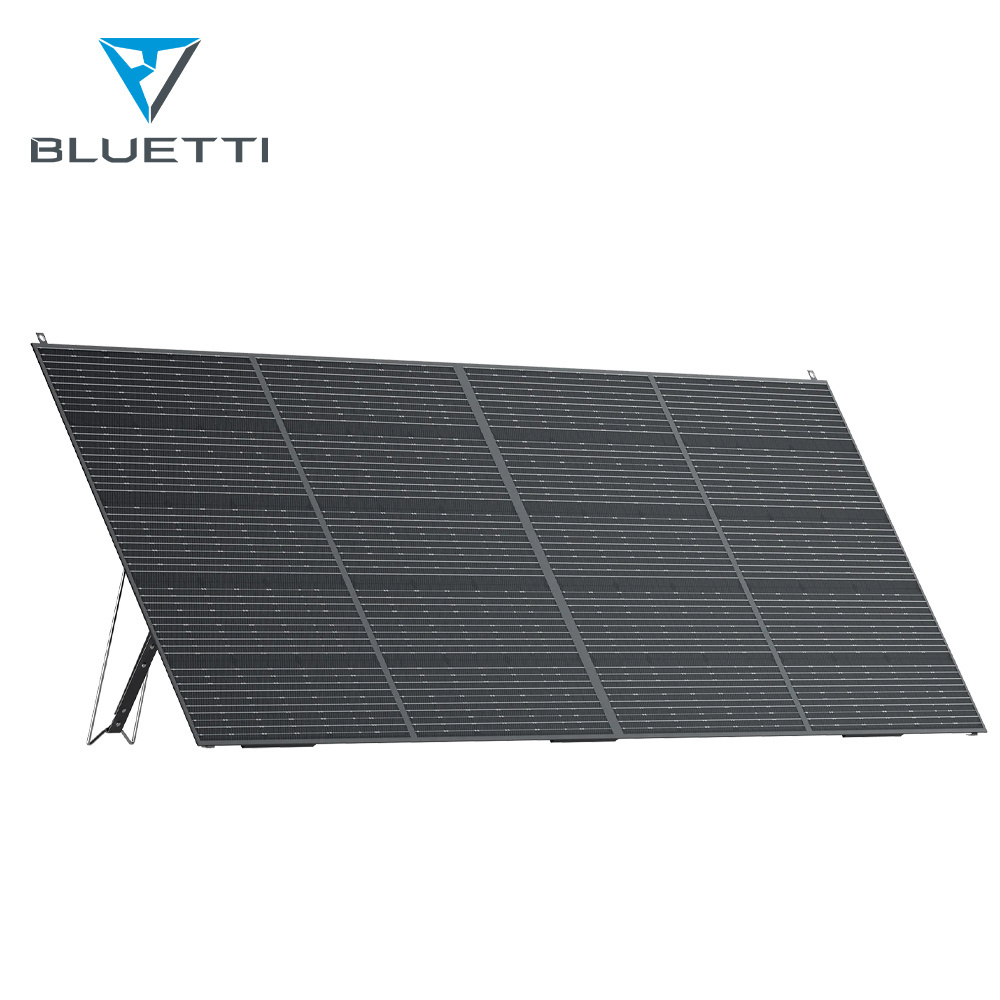

Product name:
-
Foldable Solar Panel
-
Peak Power(Pm)::
-
420W
-
Cell type:
-
Monocrystalline Silicon
-
Cell efficiency::
-
Up to 23.5%
-
Open circuit voltage(Voc)::
-
44.3V
-
Short circuit current(Isc)::
-
12.2A
-
Certifications:
-
FCC, CE, ROHS
-
Solar Cell Lamination::
-
ETFE
-
Weight::
-
14 kg (30.8 lbs)
-
Compatibility:
-
BLUETTI AC70P/AC180P/AC240P/AC200P L
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, All Black, Flexible, Overlapping, Foldable
-
Panel Efficiency:
-
Up to 23.4%
-
Warranty:
-
1 years
-
Brand Name:
-
Bluetti
-
Model Number:
-
PV420
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
Unfolded:2675*975mm/ Folded:975* 660 * 45 mm
-
Product name:
-
Foldable Solar Panel
-
Peak Power(Pm)::
-
420W
-
Cell type:
-
Monocrystalline Silicon
-
Cell efficiency::
-
Up to 23.5%
-
Open circuit voltage(Voc)::
-
44.3V
-
Short circuit current(Isc)::
-
12.2A
-
Certifications:
-
FCC, CE, ROHS
-
Solar Cell Lamination::
-
ETFE
-
Weight::
-
14 kg (30.8 lbs)
-
Compatibility:
-
BLUETTI AC70P/AC180P/AC240P/AC200P L
Products Description
|
Model:
|
PV120
|
PV200
|
PV350
|
PV420
|
|
Peak Power(Pm):
|
120W
|
200W
|
350W
|
420W
|
|
Cell type
|
Monocrystalline silicon
|
Monocrystalline silicon
|
Monocrystalline silicon
|
Monocrystalline silicon
|
|
Solar Cell Lamination:
|
ETFE
|
ETFE
|
ETFE
|
ETFE
|
|
Cell efficiency:
|
Up to 23.4%
|
Up to 23.4%
|
Up to 23.4%
|
Up to 23.4%
|
|
Voltage at max power (Vmp)
|
19.6V
|
20.5V
|
37.5V
|
/
|
|
Current at max power (Imp)
|
6.1A
|
9.7A
|
9.2A
|
/
|
|
Open circuit voltage(Voc):
|
24.4V
|
26.1V
|
46.5V
|
44.3V
|
|
Short circuit current(Isc):
|
6.43A
|
10.3A
|
10.8A
|
12.2A
|
|
Operating Temperature:
|
-10℃～+65℃
|
-10℃～+65℃
|
-10℃～+65℃
|
-10℃～+65℃
|
|
Best working temperature:
|
+25℃
|
+25℃
|
+25℃
|
+25℃
|
|
Folding number:
|
4
|
4
|
4
|
4
|
|
Dimension(unfolded):
|
533*1652mm/21/65inch
|
590*2265mm/23.2*89.2inch
|
2400*905mm/94.4*35.6inch
|
2675*975mm/105.3*38.3in
|
|
Dimension(folded):
|
533*470mm/21*18.5inch
|
590*630mm/23.2*24.8inch
|
905*613*65mm/35.6*24.1*2.5inch
|
975*660*45mm/38.3*25.9*1.7in
|
|
Weight:
|
5.7kg/12.57lbs
|
7.3kg/16.1lbs
|
13.9kg/30.6lbs
|
14kg/30.8lbs
|
|
Warranty
|
12 Months
|
12 Months
|
12 Months
|
12 Months
|
|
Certifications
|
FCC, CE, ROHS
|
FCC, CE, ROHS
|
FCC, CE, ROHS
|
FCC, CE, ROHS
|
|
Cable Length
|
118in/ (3m)
|
118in/ (3m)
|
118in/ (3m)
|
118in/ (3m)
|
