Quick Details
-
Arc Current:
-
20-160A
-
Pulse Frequency:
-
50/60 HZ
-
Pilot Arc Current:
-
30A
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
370*155*270
-
Use:
-
Welding
-
Voltage:
-
1PH/220V 15%
-
Power:
-
6KVA
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
rated input power::
-
6KVA
-
rated input current::
-
27A
-
rated output::
-
160A/26.4V
-
output current::
-
20-160
-
no-load voltage::
-
65±5
-
efficiency::
-
70
-
protection level::
-
IP21
-
Insulation level::
-
F
-
net weight::
-
4.5
-
gross weight::
-
5.6
-
Certification:
-
CE CCC
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANDELI
-
Model Number:
-
ARC-630
-
Arc Current:
-
20-160A
-
Pulse Frequency:
-
50/60 HZ
-
Pilot Arc Current:
-
30A
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
370*155*270
-
Use:
-
Welding
-
Voltage:
-
1PH/220V 15%
-
Power:
-
6KVA
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
rated input power::
-
6KVA
-
rated input current::
-
27A
-
rated output::
-
160A/26.4V
-
output current::
-
20-160
-
no-load voltage::
-
65±5
-
efficiency::
-
70
-
protection level::
-
IP21
-
Insulation level::
-
F
-
net weight::
-
4.5
-
gross weight::
-
5.6
-
Certification:
-
CE CCC

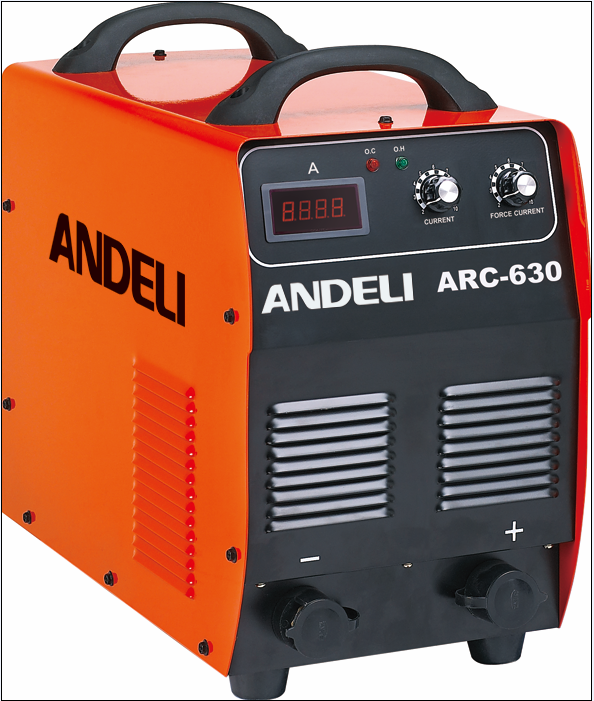

High frequency ARC 630 inverter welding machine for stainless steel welding
1.IGBT technology,the core adopts advanced IGBT inverter device,high frequency
2.With 2 input voltage auto-options:1P 220V/230V and 1P 380V.or 1P 110V and 1P 220V,which means you can use both in home and factory
3.Digtal meter to preset and display welding current
4.Anti-stick,adjustable hot striking,easy to strike the arc,stable arc welding,deep weld pool and good welding appearance
5. VRD function is optional,which is safe for welder
6.Suitable for various acid and basic electrodes
7.Over current,over heat and under voltage protection is available
8.Energy saving-compared with the traditional SMAW machine more efficient
9.Suitable for welding the carbon steel,stainless steel,low alloy steel and other metals
|
Model |
ARC-160S |
ARC-200S |
ARC-250S |
ARC-160S |
|||||||
|
Rated into voltage (V) |
AC220 OR AC380± 10% |
AC110 OR AC220± 10% |
|||||||||
|
|
220 |
380 |
220 |
380 |
220 |
380 |
110 |
220 |
|||
|
Rated input power (KVA) |
5.1 |
6 |
7 |
8 |
8 |
10.7 |
3.5 |
6 |
|||
|
Rated input current (A) |
23 |
16 |
32 |
21 |
36 |
28 |
32 |
27 |
|||
|
Rated output |
25.6V/140A |
26.4V/160A |
27.2V/180A |
28V/200A |
28V/200A |
30V/250A |
24V/100A |
26.4V/160A |
|||
|
Output current (A) |
20-140 |
20-160 |
20-180 |
20-200 |
20-200 |
20-250 |
20-100 |
20-160 |
|||
|
No-load voltage (V) |
80± 5 |
65± 5 |
80± 5 |
66± 5 |
82± 5 |
66± 5 |
65± 5 |
65± 5 |
|||
|
Rated duty cycle (%) (40℃ 10min) |
30% |
160A |
200A (40%) |
250A (40%) |
160A |
||||||
|
|
100% |
88A |
126A |
158A |
88A |
||||||
|
Efficiency (%) |
70 |
70 |
70 |
70 |
|||||||
|
Protection grade |
IP21 |
IP21 |
IP21 |
IP21 |
|||||||
|
Insulation grade |
F |
F |
F |
F |
|||||||
|
Net weight (Kg) |
5.6 |
10.2 |
12.1 |
8 |
|||||||
|
Gross weight (Kg) |
6.8 |
11.7 |
13.7 |
10 |
|||||||
|
Dimension of machine (mm) |
370*160*290 |
460*190*340 |
500*210*340 |
370*160*290 |
|||||||
|
Dimension of package (mm) |
440*230*390 |
564*255*383 |
570*260*460 |
440*230*390 |
|||||||
