- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
8
-
After Warranty Service:
-
Support Online Support
-
Usage:
-
pasting PVC tape on wood furniture egde
-
Function:
-
glue, end cutting, two process trimming, scraping and polish
-
Voltage:
-
380V 50HZ 3phase
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUDIAO
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
8
-
After Warranty Service:
-
Support Online Support
-
Usage:
-
pasting PVC tape on wood furniture egde
-
Function:
-
glue, end cutting, two process trimming, scraping and polish
-
Voltage:
-
380V 50HZ 3phase
Product Description

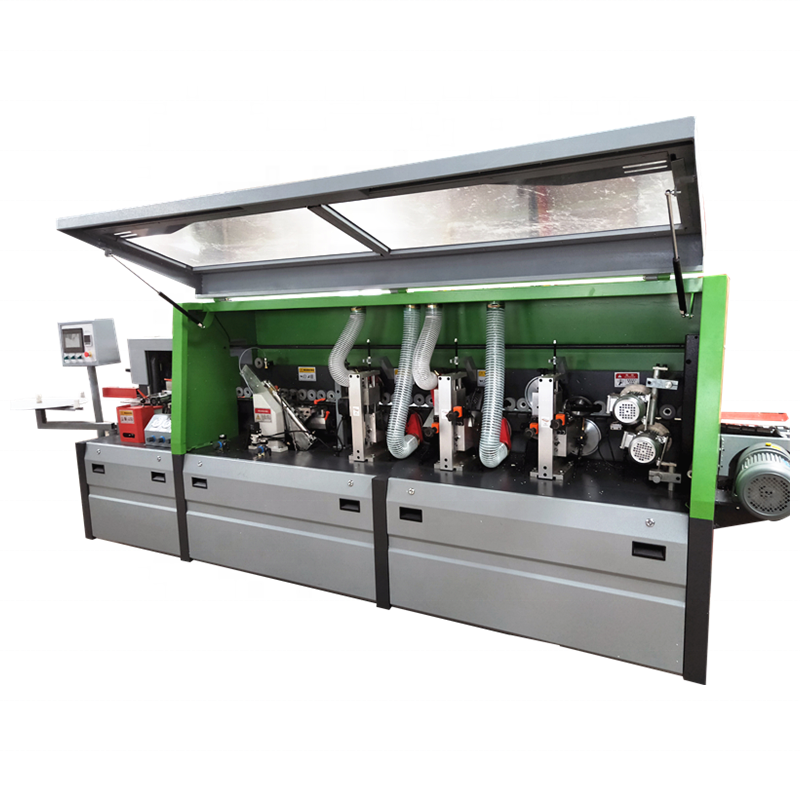

PVC edge banding machine is mainly used for pasting PVC tape on plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge furniture.
It is stronger structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices;
It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multifunctional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages.
It is stronger structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices;
It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multifunctional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages.
edge banding machine function
pressing, gluing top& end trimming rough trimming,Fine trimming, scraping, polishing
heat and press
machine with auto heater port for glue melting and pressing glue roller ,The press system consists mainly of a main pressure
roller and several auxiliary pressure rollers.Its function is mainly to press
and glue the edge of the workpiece and the edge band.
roller and several auxiliary pressure rollers.Its function is mainly to press
and glue the edge of the workpiece and the edge band.
Top&end cutting trimmer
Automatic edge banding machine with a necessary function is end cutter,The shearing device is mainly composed of a device for
feeding edge-sealing material, limiting the width of the edge-sealing material,
and shearing. vut away the spare pvc tape in top and end, ,make board clean, smooth
feeding edge-sealing material, limiting the width of the edge-sealing material,
and shearing. vut away the spare pvc tape in top and end, ,make board clean, smooth
scraping and buffing
Scraping
It is used to eliminate the wavy traces caused by the cutting process of trimming non-linear motion, so that the upper and lower
parts of the
plate are smoother and rounder.
Buffing
The cotton polishing wheel can remove excess
glue while polishing the finished board, making the edge section more smooth and beautiful.
It is used to eliminate the wavy traces caused by the cutting process of trimming non-linear motion, so that the upper and lower
parts of the
plate are smoother and rounder.
Buffing
The cotton polishing wheel can remove excess
glue while polishing the finished board, making the edge section more smooth and beautiful.
Electric case
automatic edge banding machine adopts international brand part, like Ac contact, switch ,fuse ,limit , we adopts France
Schneider.Japan Omron ,China Chnt. ,and Italy technology, all the wire connecting with number labeling , clear guiding and smart
installing, anti-interference ,longer service life, convenient to maintaining
Schneider.Japan Omron ,China Chnt. ,and Italy technology, all the wire connecting with number labeling , clear guiding and smart
installing, anti-interference ,longer service life, convenient to maintaining
Specification
|
Mode
|
LS-368
|
|
Edge banding thickness
|
0.4-3mm
|
|
Banding tape width
|
10-60mm
|
|
Mini width of wood
|
>=80mm
|
|
Work piece length
|
>=120mm
|
|
Heating power
|
2.3kw
|
|
Feeding motor power
|
0.75kw
|
|
End cutting motor
|
0.37KW*2 14000rpm/min
|
|
Glue spreading motor power
|
0.55kw
|
|
Fine trimming motor power
|
0.75kw*2 12000rpm/min
|
|
Rough trimming motor power
|
0.75KW*2 12000rpm/min
|
|
Polishing motor power（buffing)
|
0.18kw*2 1400rpm/min
|
|
Work piece transmission motor
|
0.75kw 2800rpm/min
|
|
Feeding speed
|
8-20m/min
|
|
Air pressure
|
0.7Mpa
|
|
Machine size
|
4200*900*1500mm
|
|
G W
|
1300KG
|
|
Packing
|
Wooden case
|
|
Packing size
|
4600*1250*2000mm
|
|
Voltage
|
3P.380V.50HZ
|
Samples
Packing & Delivery
Standard seaworthy packing
1.Clear Whole machine carefully.
2.Whole film packing machine;
3.Anti-collision package edge;
4.Fumigation-free plywood box with iron binding belt
