- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Brogen
-
Model Number:
-

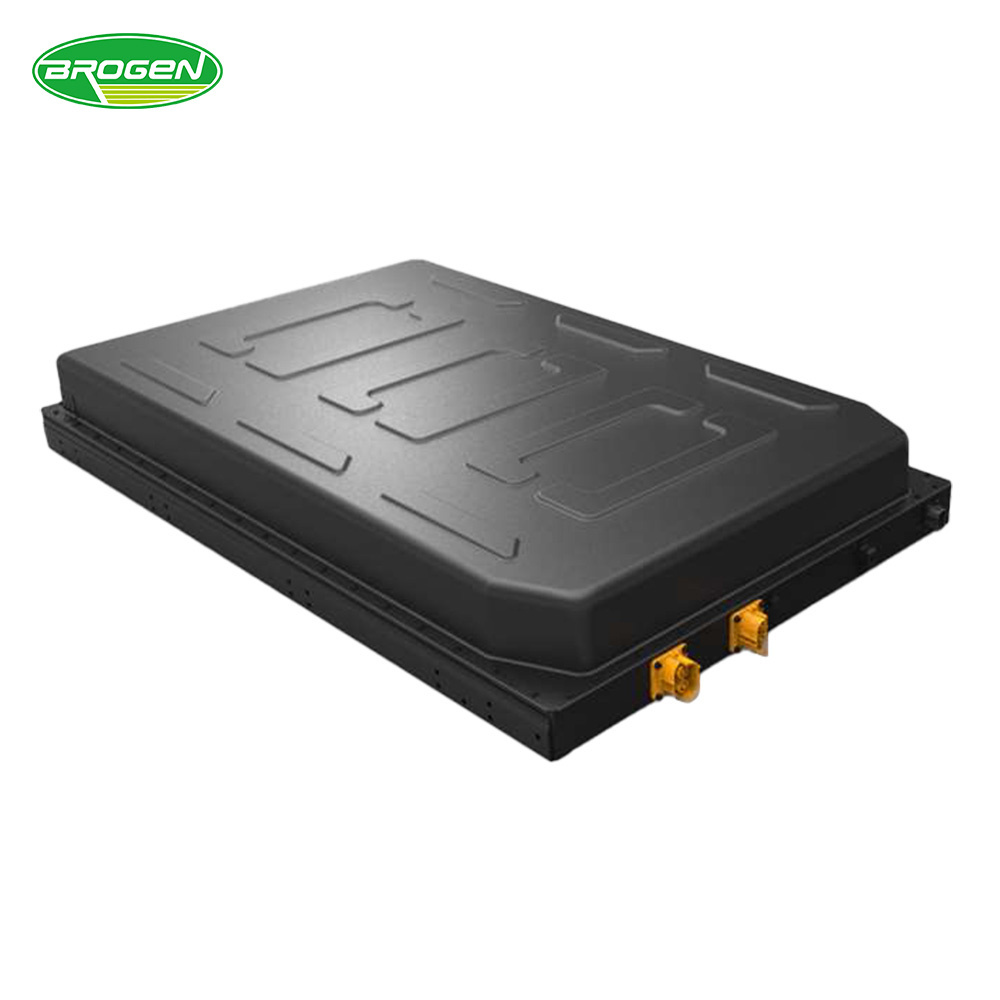

Special Vehicle LFP Battery System
-
Battery Size:
-
1112*641*612mm
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
353KG
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Battery Type:
-
Lifepo4
-
Nominal Voltage (V):
-
300-438
-
Norminal Capacity(Ah):
-
173
-
System Storage Capacity (KWh):
-
66.85
-
Cycle Life:
-
3500 Times(25℃)
-
Energy Density:
-
>125Wh/kg
-
Protection:
-
IP67
-
Apllication:
-
Airports & Ports Special Vehicles
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
Quick Details
-
Storage Type:
-
-20°C~55°C
-
Anode Material:
-
LFP
-
Application:
-
Airports & Ports Special Vehicles
-
Brand Name:
-
Brogen
-
Model Number:
-
Special Vehicle LFP Battery System
-
Battery Size:
-
1112*641*612mm
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
353KG
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Battery Type:
-
Lifepo4
-
Nominal Voltage (V):
-
300-438
-
Norminal Capacity(Ah):
-
173
-
System Storage Capacity (KWh):
-
66.85
-
Cycle Life:
-
3500 Times(25℃)
-
Energy Density:
-
>125Wh/kg
-
Protection:
-
IP67
-
Apllication:
-
Airports & Ports Special Vehicles
-
OEM/ODM:
-
Customized OEM ODM Battery Pack
The most cost-effective battery system supplier for commercial vehicle scenarios
- High-Voltage (300V+) in Focus -
· Responsive and Cost-effective solutions for SMEs.
· Low MOQ: 100-1,000 EVs per year.
· Expert in custom product development and mass production.
· One-on-one service with full after-sales support.
LFP Battery Solutions
- LFP Battery Solution for Airport B
aggage Tractors
-
|
SPECIFICATIONS
|
80V 840AH
|
386.4V 173AH
|
309V 206AH （3T）
|
354V 206AH （5T）
|
|
SERIES/PARALLEL
|
1P12S
|
1P12S
|
1P16S
|
1P11S
|
|
SYSTEM VOLTAGE
|
76.8V
|
386.4 V (120S)
|
309.12V
|
354.2
|
|
SYSTEM VOLTAGE RANGE
|
60-87.6V
|
300-438V
|
240-350.4V
|
275-401.5V
|
|
SYSTEM ENERGY
|
64.5KWH （840AH）
|
66.847KWH （173AH)
|
63.68KWH （206AH）
|
72.97KWH（206AH）
|
|
CONT. Charging/Discharging CURRENT (A) (room temp. 25℃)
|
200A/400A
|
173A/173A
|
200A/206A
|
200A/206A
|
|
COOLING METHOD
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
|
HEATING METHOD
|
PI heating film
|
PI heating film
|
PI heating film
|
PI heating film
|
|
SYSTEM ENERGY DENSITY(WH/KG)
|
300
|
>125
|
>125
|
>125
|
|
L*W*H
|
952*631*670
|
1112*641*612
|
1165*570*645.7
|
1085*710*650
|
- LFP Battery Solution for
Airport Baggage Transporters
-
|
Power Battery Type
|
lithium-ion power battery system
|
|
Rated capacity (Ah)
|
>=560
|
|
Nominal voltage (V)
|
83
|
|
Operating Voltage Range (V)
|
62.5-91.25
|
|
Total battery energy (kWh)
|
46.6
|
|
Weight (kg)
|
466
|
|
Mass Energy Density (wh/kg)
|
100
|
|
Battery Pack Cycle Life
|
Capacity ≥80% after 1500 cycles
|
|
System Protection Grade
|
IP67
|
|
Charging ambient temperature
|
-20°C~50°C
|
|
Discharge ambient temperature
|
-20°C~50°C
|
- LFP Battery Solution for
Airport Shuttle Bus
-
|
SPECIFICATIONS
|
8.5m shuttle bus
|
10.5m shuttle bus
|
|
CELL TYPE
|
LF280N(3.2V 280Ah)
|
LF280N(3.2V 280Ah)
|
|
SERIES/PARALLEL
|
1P12S
|
1P12S, 1P10S
|
|
SYSTEM VOLTAGE
|
460.8V (144S)
|
633.6V（198S）
|
|
SYSTEM VOLTAGE RANGE
|
360-525.6V
|
495-722.7V
|
|
SYSTEM ENERGY
|
129.024KWH （280AH)
|
354.816KWH （280AH）
|
|
CONT. Charging/Discharging CURRENT (A) (room temp. 25℃)
|
200A/280A
|
200A/280A
|
|
COOLING METHOD
|
Air Cooling
|
Air Cooling
|
|
HEATING METHOD
|
PI heating film
|
PI heating film
|
|
SYSTEM ENERGY DENSITY(WH/KG)
|
>135
|
>135
|
|
L*W*H
|
1060*630*240
|
1060*630*240
|
- LFP Battery Solution for
Airport
Ground Power Unit
-
|
Ground Power Unit Battery
|
Parameters
|
|
Battery Cell
|
LFP 280
|
|
Configuration
|
1P12S
|
|
Rated Voltage(V)
|
691.2
|
|
System Capacity(Ah)
|
280
|
|
Voltage Range(V)
|
540～788.4
|
|
System Energy
|
193.536KWH
|
|
Continuous charging current(Ah)
|
200
|
|
Continuous discharging current(Ah)
|
200
|
|
System Energy density(Wh/kg)
|
＞120
|
|
Cooling methord
|
Self-cooling
|
|
Heating mode
|
/
|
|
Dimension（mm）
|
10ft container
|
|
PCS Rated power
|
70KW
|
|
AC voltage
|
220V
|
|
PCS efficiency
|
97%
|
|
Operation mode
|
Off grid
|
- LFP Battery Solution for
Aircraft Tractors (Taxibot)
-
|
Taxibot Battery
|
Parameters
|
|
Battery Cell
|
LFP 277Ah
|
|
Configuration
|
2P168S
|
|
System Energy(kWh)
|
299.7
|
|
Rated Voltage(V)
|
540.96
|
|
System Capacity(Ah)
|
554Ah
|
|
System Energy density(Wh/kg)
|
＞135
|
|
Cooling methord
|
Self-cooling
|
|
Heating mode
|
PI film
|
|
Dimension(mm)
|
1366*1360*240
|
- LFP Battery Solution for
Port AGV
-
|
Port AGV
|
SPECIFICATIONS
|
|
CELL TYPE
|
DPME-25N(25Ah high rate cell)
|
|
SERIES/PARALLEL
|
4P180S (One pack has 4 modules)
|
|
SYSTEM VOLTAGE
|
666V (180S)
|
|
SYSTEM VOLTAGE RANGE
|
540-738V
|
|
SYSTEM ENERGY
|
266.4 KWH （400AH)
|
|
CONT. Charging/Discharging CURRENT (A) (room temp. 25℃)
|
800A/1000A
|
|
COOLING METHOD
|
Liquid Cooling
|
|
HEATING METHOD
|
PTC heating
|
|
SYSTEM WEIGHT
|
3.5T
|
|
L*W*H
|
999.7*725*267.2
|
