Quick Details
-
Application:
-
Hotel
-
Type:
-
h20 beam
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ZHIYI
-
Model Number:
-
h20 beam
-
Product name:
-
doka h20 wood beam type g clamp faux timber beams solid wood beam
-
Material:
-
pine lvl for flange,poplar plywood for web
-
Length:
-
Custom Length
-
Flange:
-
200/160mm(height)*80mm(width)*40mm(flange thickness)
-
Web:
-
27/30mm(thickness)*150mm(length)
-
Glue:
-
WBP MR
-
Density:
-
5.0-6.0kg/m
-
Moisture:
-
<12%
-
Head protection:
-
plastic or metal cap
-
Usage:
-
construction formwork system
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hotel
-
Type:
-
h20 beam
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ZHIYI
-
Model Number:
-
h20 beam
-
Product name:
-
doka h20 wood beam type g clamp faux timber beams solid wood beam
-
Material:
-
pine lvl for flange,poplar plywood for web
-
Length:
-
Custom Length
-
Flange:
-
200/160mm(height)*80mm(width)*40mm(flange thickness)
-
Web:
-
27/30mm(thickness)*150mm(length)
-
Glue:
-
WBP MR
-
Density:
-
5.0-6.0kg/m
-
Moisture:
-
<12%
-
Head protection:
-
plastic or metal cap
-
Usage:
-
construction formwork system
Product Description
Specification

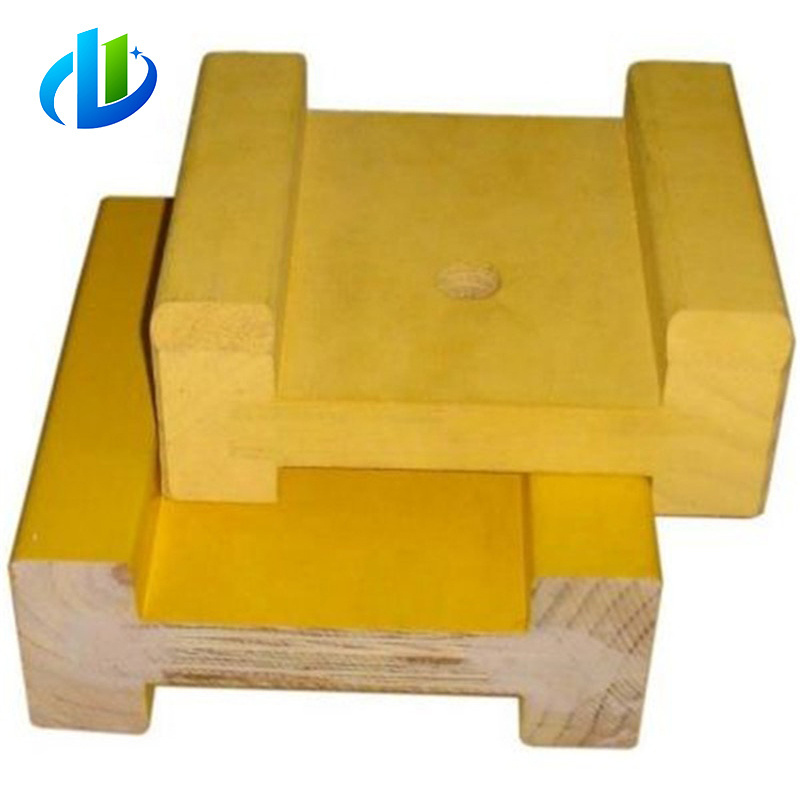

Formwork H20 Timber Beam, also called H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used in formwork systems, construction systems parts, Falsework, systems, timber structures and other bearing structures .
|
Raw Material
|
New Zealand Radiate Pine LVL ,Solid Pine/Spruce,Poplar LVL,Plywood,3 ply board.
|
|
|
|
|||
|
Flange
|
200/160mm(height)*80mm(width)*40mm(flange thickness)
|
|
|
|
|||
|
Length
|
1.90, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 m, up to 12m ( any special length on clients' requent)
|
|
|
|
|||
|
Standard
|
EN13377:2002 & DIN V 20000-2 standard
|
|
|
|
|||
|
Moisture Content
|
<12%
|
|
|
|
|||
|
Density
|
4.7-5.5kg/m
|
|
|
|
|||
|
End finish
|
red plastic wrap,waterproof paint,Metal cap.
|
|
|
|
|||
|
Surface finish
|
yellow painting,waterproof
|
|
|
|
|||
|
Usages
|
slab formwork system,vertical formwork(wall,column,hydraulic climbing,etc.),
adjustable arced formwork etc. etc
|
|
|
|
|||
|
Packing
|
Pallets on the bottom,and Steel band for strength
|
|
|
|
|||
Product Display
Product Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
